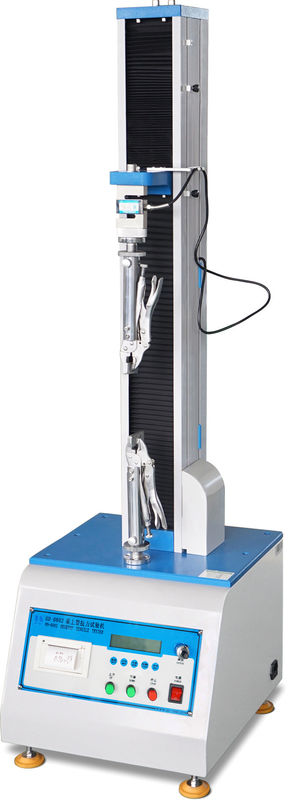

Electronic Single Column Zipper Tensile Strength Fatigue Testing Machines

China Electronic Single Column Zipper Tensile Strength Fatigue Testing Machines supplier
Electronic Single Column Zipper Tensile Strength Fatigue Testing Machines supplier Electronic Single Column Zipper Tensile Strength Fatigue Testing Machines supplier Electronic Single Column Zipper Tensile Strength Fatigue Testing Machines supplier Electronic Single Column Zipper Tensile Strength Fatigue Testing Machines supplier Electronic Single Column Zipper Tensile Strength Fatigue Testing Machines supplier

Large Image :  Electronic Single Column Zipper Tensile Strength Fatigue Testing Machines

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B602
Power: Electric
Port: Shenzhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Accuracy: ±0.5% Capacity: 5, 10, 20, 25, 50, 100, 200kg
Elongation Accuracy: 0.001mm Max. Stroke: 1000mm (including Fixture)
Motor: AC Motor Power: Electronic
Resolution: 1/100,000



Electronic Single Column Zipper Tensile Strength Fatigue Testing Machines





Introduction:

This series of Tensile Tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.



Main Technical Parameter

Items Specification
Capacity 5, 10, 20, 25, 50, 100, 200kg
Unit Switchover G, KG, N, LB
Display Device Microcomputer
Resolution 1/100,000
Accuracy ±0.5%
Max. Stroke 1000mm (including fixture)
Test Speed 20-300mm/min (adjustable )
Motor AC Motor
Screw High Precise Ball Screw
Elongation Accuracy 0.001mm
Power 1∮, AC220V, 50HZ
Weight Approx.45kg
Accessories One set tensile clamp, one piece English software CD, one piece operation video CD, one piece English user manual


Product Description

Microcomputer Display 2KN Material Tensile Testing Machine is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.



Product Features

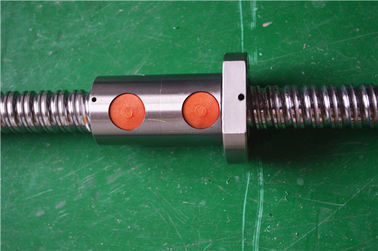

1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)

2. Control system: Microcomputer

3. Displacement resolution: 0.001mm

4. Microcomputer Display 2KN Material Tensile Testing Machines is with build-in printer, can print the testing date, time, maximum, average and minimum value.



Our company

Introduction:

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

Electronic Single Column Zipper Tensile Strength Fatigue Testing Machines

Electronic Single Column Zipper Tensile Strength Fatigue Testing Machines



After-service

If you face any problems in future during Microcomputer Display 2KN Material Tensile Testing Machines testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer;
