|Max. Stroke:||1000mm (including Fixture)||Motor:||Panasonic Servo Motor|
|Power:||Electric||Sensor:||Celtron Load Cell|load Cell|
TESILE TEST MACHINE CE CETIFICATE.pdf

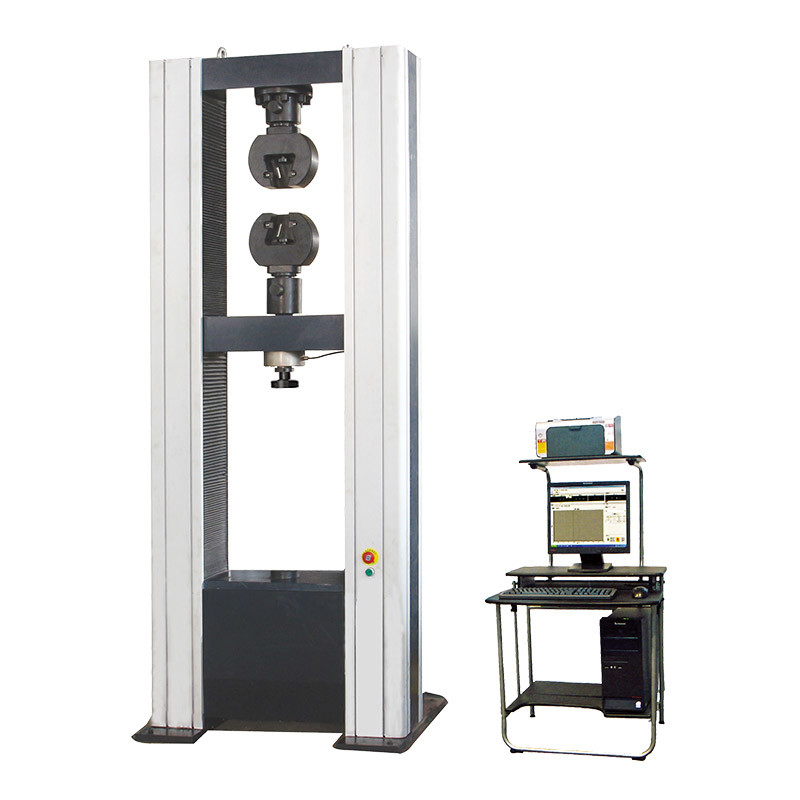

Steel Tensile Testing Machines Technical Parameter:
|Max. Force||10T (100KN)|
|Load cell||Germany brand load cell for high accuracy|
|Control system||PC with windows 7 system|
|Motor||Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod|
|Force reading||kgf, Ibf, N, KN, T etc|
|Stoke||1100mm including fixture|
|Load cell Resolution||1/250,000|
|Load Precision||within ±0.5%|
|Test speed||0.01~300mm/min (adjustable)|
|Curves display||Load- elongation, Elongation-time, Time-elongation, Stress-strain|
|Data display||Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…|
Tensile Testing Machines is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.
Tensile Testing Machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
inculding but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE...etc.
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.
Haida is professionally engaged in production and sales of various kinds of testing equipment. Main series include Paper & Package Test Machines (P&P), Universal Test Machines (UTM), Foam & Furniture & Optical Test Machines (FFO) and Accelerated Environment Test Chamber (AES). Technically, Haida has 4 main independent systems of R&D, Production, Marketing & Sales, Measurement & Calibration; 4 bases of production and research; 10 PhD supervisors as consultants; oven 10 items of High-tech products; more than 50 items of product patents and 300 staffs. Haida products meet international standards (ISO, JIS, ASTM, EN…) and widely used in field of Factories, Research Institutes, Quality Inspection Institutes, Universities, etc.
