1/250,000 Resolution Electronic Carton / Computer Servo Box Compressive Tester

China 1/250,000 Resolution Electronic Carton / Computer Servo Box Compressive Tester supplier
1/250,000 Resolution Electronic Carton / Computer Servo Box Compressive Tester supplier 1/250,000 Resolution Electronic Carton / Computer Servo Box Compressive Tester supplier

Large Image :  1/250,000 Resolution Electronic Carton / Computer Servo Box Compressive Tester

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A505S-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Capacity: 1000,2000,5000kg Resolution: 1/250,000
Test Space: 100×100×100cm(it Customizes By Customer) Test Speed: 0.5~1000mm/min, Keyboard Inputing
Dimension: 170×100×185cm Weight: 550kg

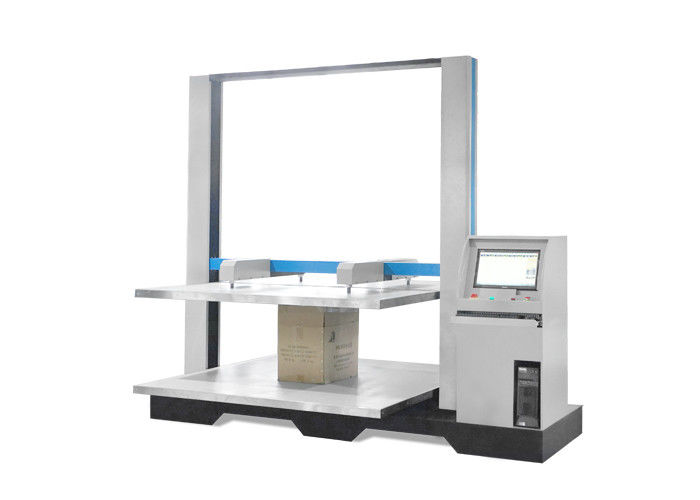

 1/250,000 Resolution Electronic Carton / Computer Servo Box Compressive Tester





Product Description:

Compression strength tester main for box ,paperbox ,corrugated box,carton...to test the pressure resistance and strike endurance during transportation or carry.



Technical characters:

1.Test items: Compression Test, Stacking Test and Press Standard Test

2.Adopt advanced accurate sensor and foreign high capable motor, unite advanced measurement and control technology to get speed accuracy and precision measurement.

3.Gentle mechanical transmission, multi-level security protection function.

4.Touch screen display, show its dynamic curves, print out quietly.



Application industry:
Home appliances, computers, mobile phones, electronic products, washing machines, shoes, food, medicine, furniture and other industries need to carton packaging, such as corrugated box packaging, honeycomb boxes and so on. At the same time can also be used in plastic barrels (edible oil, mineral water), paper barrels, cartons, paper cans, container barrels (IBC barrels)



Application standard:

TAPPI-T804,JIS-20212,GB4857.3.4,

ASTM-D642, QB/T1048, BS EN ISO 12048,

GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,

GB/T4857.4



Techincal parameter:



Capacity

1000,2000,5000kg

Resolution

1/250,000

Unit

kg,lb,n,g switchable

Test space

100×100×100cm(it customizes by customer)

Drive System

servo system,precision ball screw, DC variable speed drive system

Test speed

0.5~1000mm/min, keyboard inputing



Dimension

170×100×185cm

Weight

550kg



Power

1φ,220V/50Hz

Safety Device

Stroke protection,Force and Elongation protection,Emergency stop device,Sensing device when specimen is destroyed.



Features of Computer Servo Box Compressive Tester :

1.Using a single-screen operation; do not need to switch the screen;
2.With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

3.Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
4.The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5.Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6.With a variety of measurement units, Measure In Imperial & Metric are switchable;



The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
