Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Meet The Standards: | EN 71-1998 8 . 7 Standards |
|---|---|---|---|
| Hammer Weight: | 1kg | ||
| High Light: | dynamic test machine,strollers testing equipment |
||

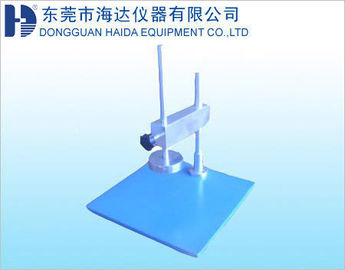

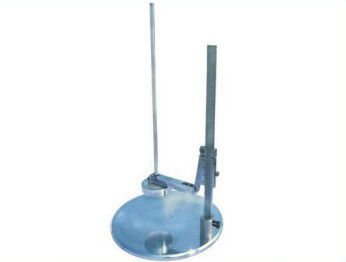

Impact Test Rig Strollers Testing Machine For Manufacturing Toys
Details :
Impact test rig
| Meet the standards | EN 71-1998 8 . 7 standards |
| Plate size | ( L × W × H ) 300 × 300 × 500mm |
| Adjustable height | 0-300mm |
| Hammer surface diameter | 80 . 00mm |
| Hammer Weight | 1Kg |
| Material | Steel , chrome plating surface treatment |
Purpose : To reduce the material damage due to manufacturing toys or imitation protective device protective device as true face the danger .
Range : Imitation protective device ( such as a transparent material protection / helmet / hat / goggles , etc . ) . Only adapt to the European single ( EN 71-1998 . 8 . 7 )
Procedure :
<1> Toy think the weakest position on a horizontal steel surface .
<2> 1 ± 0 . 02kg mass of 80 ± 2mm in diameter piece of metal from 100 ± 2mm height of free fall to the toys .
<3> repeat once again .
<4> Assessment : Sample tests appear sharp point / sharp edges / small objects or Baolie phenomena are considered ineligible .
