Compressive Rubber Testing Machine GB/T 4851 constant TEMP tape retentivity

China Compressive Rubber Testing Machine GB/T 4851 constant TEMP tape retentivity supplier
Compressive Rubber Testing Machine GB/T 4851 constant TEMP tape retentivity supplier Compressive Rubber Testing Machine GB/T 4851 constant TEMP tape retentivity supplier Compressive Rubber Testing Machine GB/T 4851 constant TEMP tape retentivity supplier Compressive Rubber Testing Machine GB/T 4851 constant TEMP tape retentivity supplier Compressive Rubber Testing Machine GB/T 4851 constant TEMP tape retentivity supplier

Large Image :  Compressive Rubber Testing Machine GB/T 4851 constant TEMP tape retentivity

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-C527-2
Power: Electric
Port: ShenZhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Power: Electronic Test Gauge: 10 Groups (count Respectively )
Load: 1kg,(or Specified) Counter: 10 Groups 9999h59m59s



Compressive Rubber Testing Machine GB/T 4851 constant TEMP tape retentivity



Introduction



1,Usage:

This machine can do static load test for adhesive force of tape. It can count automatically retentive time of the tape when it is under some load to confirm tape adhesive effect. Temperature in the test chamber can be set, so the specimen can be tested under specified temperature, which is useful to know relationship between different temperature and retentive time.



2,Principle:

Put the specimen under the hot environment to test adhesive time of the tape.



Design Standard

This machine meets standards of GB/T4851,CNS11888,PSTC7.



Equipment Instruction

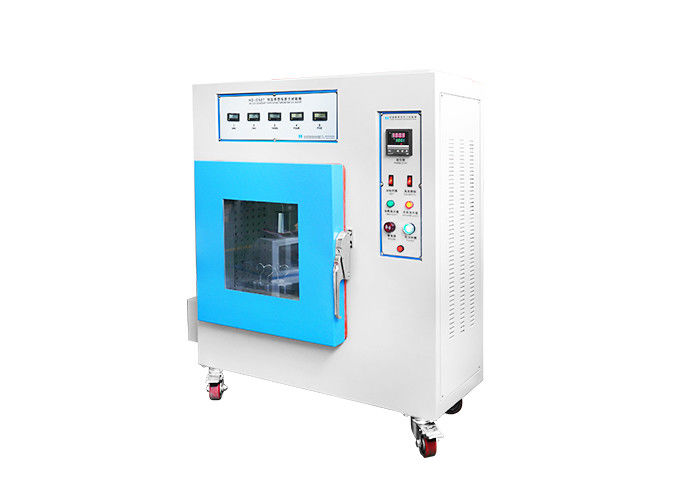

1,Instruction (picture 1)



   Compressive Rubber Testing Machine GB/T 4851 constant TEMP tape retentivity



Instruction:

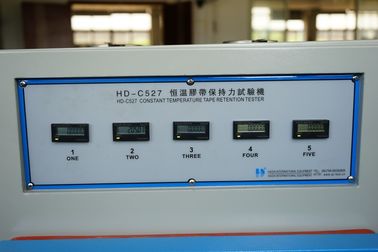

1, (counters) : for 5 test groups;

2, (test chamber) :  5 test groups test space

3, (control panel): (shown on the below detail instruction)

4, (exhaust port ):used to eliminate hot air when test and has cooling effect.



Instruction:



1 (temperature controller):set temperature of the test chamber;

2 (heat):heating control switch in the test chamber;

3 (heat light): the heat light will light when it is heating in the test chamber;

4 (fan switch):turn on the fan with cooling effect;

5 (finished light):the light will light when temperature reaches set temperature;

6 (buzzer):it will make noise when reach set temperature;

7  (power):instrument power main switch;

8 (buzzer switch):turn on the buzzer.





Basic operation instruction:



1,Press “SET” button to enter A menu of “SV” setting method, meanwhile the first position lights in the SV screen and other positions flicker. Press “<” button to shift light position to set position and then press ∧” ,“∨” to increase or decrease the value until reach needed value. At last, press SET button to finish setting.

2,press SET button 5 seconds to enter B menu of PV to display all parameters prompt, meanwhile SV displays corresponding parameter. If need to set or revise them, set them combining with“<”,“∨”,“∧” button. After set, press SET 5 seconds to quit. If you do not press any button, system will quit automatically after 30 second and the last parameter setting is invalid.



4,Technical Parameters (chart1)





Item

       Specification

HD-525B-1

Test gauge

10 groups (count respectively )

Load

1kg,(or specified)

Counter

10 groups

9999h59m59s

Temperature control

Room temperature ~200℃

Temperature display

0.1 ℃

Warming method

Heated-air circulation

Material

Inner SUS #304 stainless steel plate,outside high-grade steel with baking varnish

Power

1∮,AC220V,50HZ

Weight (approx.)

Approx.115kg





Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



Compressive Rubber Testing Machine GB/T 4851 constant TEMP tape retentivity
