Payment & Shipping Terms:
|Thickness Of Testing Panel:||1.5～2.0 Mm||Width:||40～50 Mm|
|Length:||60～125 Mm||Roller:||2 000 G±50 G|
|Temperature Rang:||Normal Temperature~200℃||Controlled Method:||Micro Computer P.I.D Automatic Temperature Control|

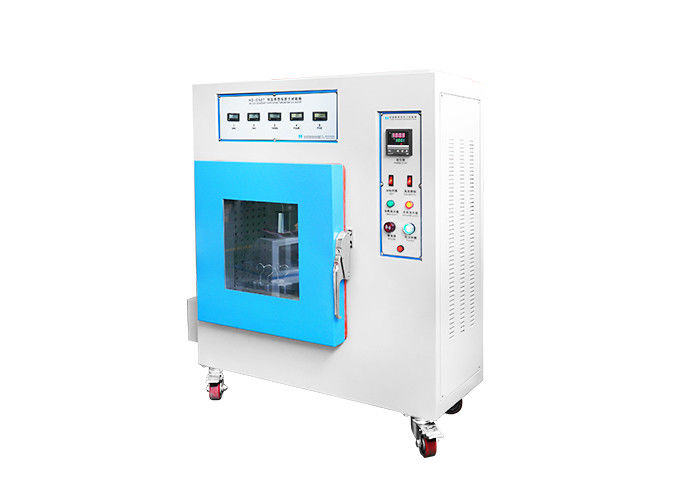

constant TEMP tape retentivity testing chamber is used to do static load test toward the adherence of adhesive tape, to evaluate the retentive property through timing the retentive period under regulated load and temperature. Cut a sample with length 1”and paste it to the regulated SUS#304 stainless steel panel, roll it back and forth three times at the speed of 300mm/min, with 2kg roller. Hung the steel panel on the testing machine with the regulated weight. The timer will keep the testing time when the tape takes off the panel, which is used to evaluate the adherence property of the tape.
Testing Criteria:GB/T 4851,JIS Z0237,CNS 11888,PSTC-7
|Thickness of testing panel||1.5～2.0 mm|
|Roller||2 000 g±50 g|
|Temperature Rang||normal temperature~200℃|
|Controlled Method||micro computer P.I.D automatic temperature control|
|Temperature Displayed Accuracy||0.1℃|
|Temperature controlled Accuracy||±0.3 ℃|
|Spread Accuracy||±1%(1℃) at- room100℃|
|Weight||1000±10g(include the weight of load panel)|
|Timer||save time automatically, 99999.9 hours(or minute,can be set), 5 groups|
|Size of Machine||(L×W×H)900×550×750mm|
|Weight of Machine||80 kg|
1. Items for quality guarantee:
One year free service from the date it out of the factory. (The consumable is not in this range, and not include travel fee also.)
Ⅱ. Voucher for free service
1. Please maintain the operation booklet and warranty card. And please contact with our after-sale service department within a month if you loose them.
2. constant TEMP tape retentivity testing chamber is useless for the voucher if there is any amendment or without our stamp.
Ⅲ.Technical or material fee will be charged under the following condition, though within warranty period:
1. Damage caused by disaster.
2. Barrier caused by the error or wrong operation.
3. Damage caused by using power or voltage disobey to the regulation.
4. Barrier caused by repacking yourself.
5. Barrier caused by lending to others.
6. Barrier caused by configuring yourself.
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
