Constant Temperature Rubber Testing Machine Adhensive Tape Retentivity Testing Equipment

Constant Temperature Rubber Testing Machine Adhensive Tape Retentivity Testing Equipment
Constant Temperature Rubber Testing Machine Adhensive Tape Retentivity Testing Equipment Constant Temperature Rubber Testing Machine Adhensive Tape Retentivity Testing Equipment Constant Temperature Rubber Testing Machine Adhensive Tape Retentivity Testing Equipment Constant Temperature Rubber Testing Machine Adhensive Tape Retentivity Testing Equipment

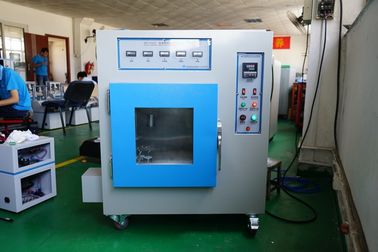

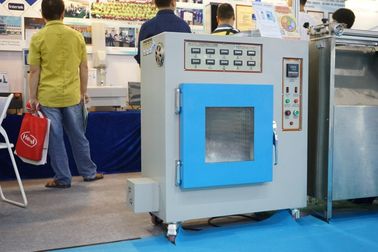

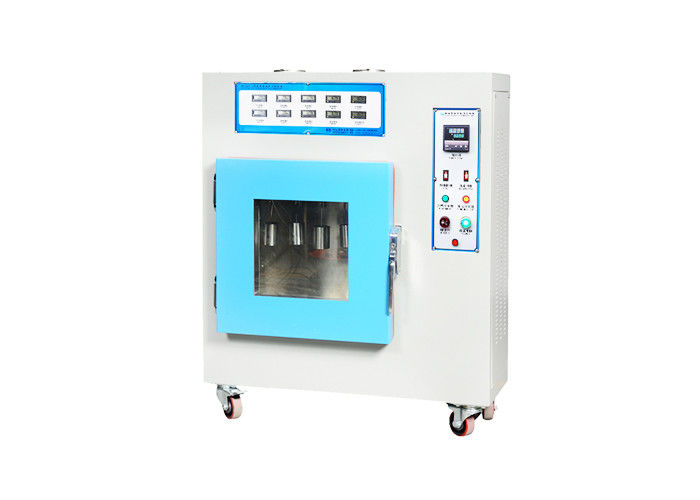

Large Image :  Constant Temperature Rubber Testing Machine Adhensive Tape Retentivity Testing Equipment

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-C803
Power: Electric
Port: ShenZhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Thickness Of Testing Panel: 1.5~2.0 Mm,Width:40~50 Mm,Length:60~125 Mm Roller: 2 000 G±50 G
Temperature Rang: Normal Temperature~200℃ Controlled Method: Micro Computer P.I.D Automatic Temperature Control
Temperature Displayed Accuracy: 0.1℃ Temperature Controlled Accuracy: ±0.3 ℃
High Light:

rubber tensile testing machine

,

rubber hardness tester



Constant Temperature Rubber Testing Machine Adhensive Tape Retentivity Testing Equipment



Function



constant TEMP tape retentivity testing chamber is used to do static load test toward the adherence of adhesive tape, to evaluate the retentive property through timing the retentive period under regulated load and temperature. Cut a sample with length 1”and paste it to the regulated SUS#304 stainless steel panel, roll it back and forth three times at the speed of 300mm/min, with 2kg roller. Hung the steel panel on the testing machine with the regulated weight. The timer will keep the testing time when the tape takes off the panel, which is used to evaluate the adherence property of the tape.



Testing Criteria:GB/T 4851,JIS Z0237,CNS 11888,PSTC-7



Technical Parameter:



Thickness of testing panel 1.5~2.0 mm
Width 40~50 mm
Length 60~125 mm
Roller 2 000 g±50 g
Temperature Rang normal temperature~200℃
Controlled Method micro computer P.I.D automatic temperature control
Temperature Displayed Accuracy 0.1℃
Temperature controlled Accuracy ±0.3 ℃
Spread Accuracy ±1%(1℃) at- room100℃
Weight 1000±10g(include the weight of load panel)
Timer save time automatically, 99999.9 hours(or minute,can be set), 5 groups
Size of Machine (L×W×H)900×550×750mm
Weight of Machine 80 kg
Power 1∮,AC220V,50/60Hz,12A



Quality guarantee



1. Items for quality guarantee:

One year free service from the date it out of the factory. (The consumable is not in this range, and not include travel fee also.)



. Voucher for free service

1. Please maintain the operation booklet and warranty card. And please contact with our after-sale service department within a month if you loose them.

2. constant TEMP tape retentivity testing chamber is useless for the voucher if there is any amendment or without our stamp.



.Technical or material fee will be charged under the following condition, though within warranty period:

1. Damage caused by disaster.

2. Barrier caused by the error or wrong operation.

3. Damage caused by using power or voltage disobey to the regulation.

4. Barrier caused by repacking yourself.

5. Barrier caused by lending to others.

6. Barrier caused by configuring yourself.



Constant Temperature Rubber Testing Machine Adhensive Tape Retentivity Testing Equipment 0Constant Temperature Rubber Testing Machine Adhensive Tape Retentivity Testing Equipment 1
