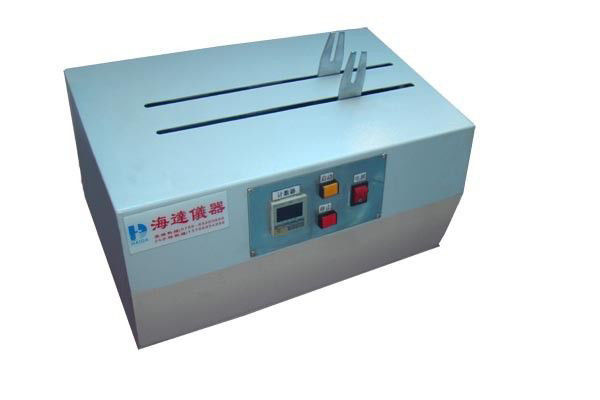

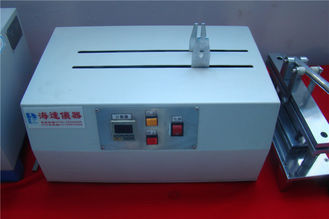

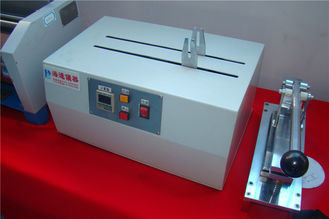

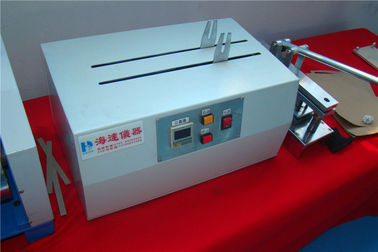

Electric rolling wheel Rubber Testing Machine Standard electric rollers

Electric rolling wheel Rubber Testing Machine Standard electric rollers
Electric rolling wheel Rubber Testing Machine Standard electric rollers Electric rolling wheel Rubber Testing Machine Standard electric rollers Electric rolling wheel Rubber Testing Machine Standard electric rollers Electric rolling wheel Rubber Testing Machine Standard electric rollers

Large Image :  Electric rolling wheel Rubber Testing Machine Standard electric rollers

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-C526-1
Power: Electric
Port: ShenZhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power: Electronic Warranty: 1 Year
Power Supply: 1∮,AC220V,50/60Hz, 2A Load: 2000±50g
High Light:

rubber tensile testing machine

,

rubber testing equipments



Electric rolling wheel Rubber Testing Machine Standard electric rollers



Introduction



1,Usage:



Standard electric rollers is used for prepare samples of adhesive tapes peeling test, holding power test.



2,Principle:



Standard electric rollers is with a constant pressure and speed, let the adhesive tape sample stick on the standard test plate standard and smoothly.



Standards



Machine standards:GB/T 4851,JIS-C-2107,JIS-Z-0237,GB/T2792,PSTV-8



Machine Instruction

Ⅰ,Machine structure(Chart1)

Electric rolling wheel Rubber Testing Machine Standard electric rollers 0

                                 (chart 1)



1,Roller:weight 2000±50g;

2,Control panel(refer to details)



II,Control panel(chart3)

Electric rolling wheel Rubber Testing Machine Standard electric rollers 1



(chart3)



Instruction:



1,power :machine power switch;         2,Counter:rolling times

3,Start;                                4,Stop



Ⅲ,Instrument specifications(Chart1)





Item

Specification

HD-526A

HD-526B

HD-526C

Load

2000±50g

Roller Dimension

¢84mm×45mm

Rubber Hardness

Hs80±5

Rubber Thickness

300mm/min

No. of roller

1set

2set

3set

Power

1∮,AC220V,50/60Hz, 2A

1∮,AC220V,50/60Hz, 2A

1∮,AC220V,50/60Hz, 2A

Weight

20kg

24kg

28kg
