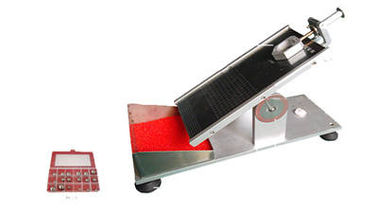

Tape Initial Adhesion Rubber Testing Machine GB/T4852 Steel ball

China Tape Initial Adhesion Rubber Testing Machine GB/T4852 Steel ball supplier
Tape Initial Adhesion Rubber Testing Machine GB/T4852 Steel ball supplier Tape Initial Adhesion Rubber Testing Machine GB/T4852 Steel ball supplier Tape Initial Adhesion Rubber Testing Machine GB/T4852 Steel ball supplier Tape Initial Adhesion Rubber Testing Machine GB/T4852 Steel ball supplier

Large Image :  Tape Initial Adhesion Rubber Testing Machine GB/T4852 Steel ball

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-C525-1
Power: Electric
Port: ShenZhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Power: Electronic Warranty: 1 Year
Weight: About 3kg Angle Of Inclination: 0-45°(Adjustable)



Tape Initial Adhesion Rubber Testing Machine GB/T4852 Steel ball



Usage:



Tape Initial Adhesion Testing Equipment is suitable for testing sensitive adhesive tape and the product similar to the pressure sensitive adhesive tape products.

Definition: Initial adhesion——Objects and pressure-sensitive adhesive tape with small pressure brief contact between the cohesive surface, the adhesion of adhesive tape that effect on objects called initial adhesion.



Principle



Inclined planet roll ball device: Through steel and pressure-sensitive adhesive tape with small pressure brief touching between the cohesive surface, the adhesion of adhesive tape that effect on steel to test initial adhesion.



Standard



Reference standard:GB/T4852



Equipment Instruction

Test Equipment:

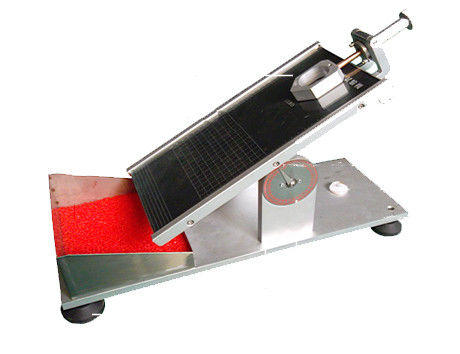

Inclined plane roll ball device (Picture1)

This device is mainly composed of inclined plate, the device that put the ball, support, base, catching box parts etc. As shown in Picture 1

Tape Initial Adhesion Rubber Testing Machine GB/T4852 Steel ball

1 . Release ball device  2. Inclined board    3. Catching ball box  4. Support   5.Dial   6.Based     7.Bubble            8. Angle pointer        9. Button corner adjustment



Instruction:

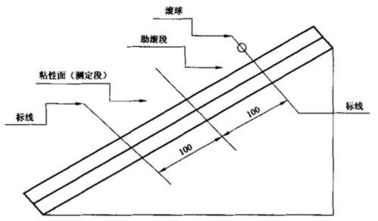

  1. Inclined board:Covered the 7mm steel plate with 2mm thick glass plate, and form inclined plate. Lining mm coordinate paper, to place the sample, adjust the mark of start and end.
  2. Pull the ball machine:Put ball machine should be able to adjust the starting position of steel ball on inclined plate, the ball should be without any additional force when release the steel ball,
  3. Support:The support be used for support the inclined plate, and could adjust the angle of plate in the range of 0~60°.
  4. Base:The base should be able to adjust and maintain the device in the level.
  5. Catching ball box:Catching ball box be used to receiving rolling steel ball on the plate, inside with the soft material.

Steel ball



   Made of GCr15 bearing steel the accuracy of it is not lower than “0” level of regulation of GB 308-77 steel ball, it is the 33 kind steel ball which diameter is 1 inch, could be used as test steel ball.

The steel ball is name the ball number according to the 32 times according to the inch diameter. Should use a set of steel ball that it is continuous number

Steel ball should be stored in anti-rust oil. The rust and scars ball should change in time.



Cleaner and wipe the material



3.1  Eliminate lotion: lotion can be used appropriate solvent such as chemical pure acetone, ethyl acetate, ethanol etc.

3.2  Wipe the material:Use the soft fabrics such as absorbent gauze wipe as materials. This kind of material shall not contain substances soluble in the solvent.



Specification





Item

Specification

Angle of Inclination

0-45°(Adjustable)

Roll ball

Steel ball

The size of roll ball

1/32”-1”

Inclined board

Thickness 5m glass

Runway

Length 100mm

Weight(about)

About 3kg
