Temperature Tension Rubber Test Machine, Digital High Rubber Temperature Tensile Strength Tester

China Temperature Tension Rubber Test Machine, Digital High Rubber Temperature Tensile Strength Tester supplier
Temperature Tension Rubber Test Machine, Digital High Rubber Temperature Tensile Strength Tester supplier Temperature Tension Rubber Test Machine, Digital High Rubber Temperature Tensile Strength Tester supplier Temperature Tension Rubber Test Machine, Digital High Rubber Temperature Tensile Strength Tester supplier

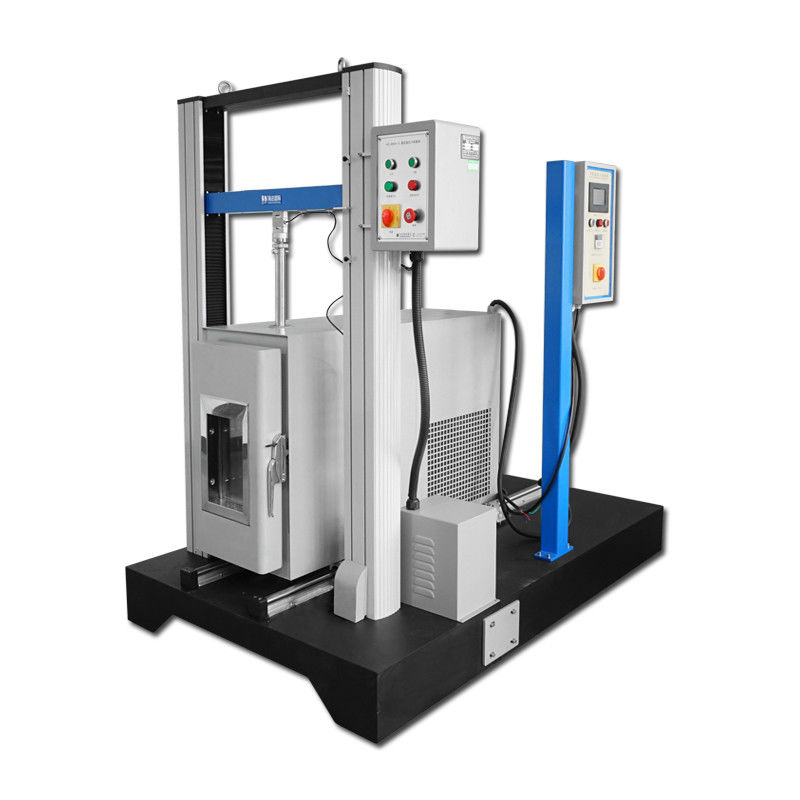

Large Image :  Temperature Tension Rubber Test Machine, Digital High Rubber Temperature Tensile Strength Tester

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-C523
Power: Electric
Port: ShenZhen

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Power: Electronic Frame Capacity: 2000KG
Force Reading: Kgf, Ibf, N, KN, T Etc Internal Dimension(W*D*H): 400*500*500mm

Temperature Tension Rubber Test Machine, Digital High Rubber Temperature Tensile Strength Tester



Applications

This Rubber Temperature Tensile Strength Tester is used to meet customer specified test requirements, which it can do tensile, tear test under specified temperature.



This Rubber Temperature Tensile Strength Tester includes two parts: high & low temperature chamber and tensile tester



Standard Features



Tensile Tester
Frame capacity 2000kg
Load cell brand Germany brand load cell for high accuracy
Load accuracy 0.5% F.S
Control system PC with windows 7 system
Motor Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Vertical test space 1200mm including fixture
Test speed 0.1~300mm/min (adjustable)
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Internal dimension(W*D*H) 400*500*500mm
High & Low Temperature Chamber
Temperature range -40~+150℃
Temperature Accuracy ±1℃
Cooling speed 1℃/min in average (without loading)
Heating speed 3℃/min in average (without loading)
Internal chamber material SUS#304 stainless steel, mirror finished
External chamber material Stainless steel with paint spray
Cooling method Air cooling
Controller LCD touch screen, programmable control temperature and humidity can set different parameter for cyclic test
Insulation material 50mm high density rigid Polyurethane foam
Heater Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor France Tecumseh compressor
Lighting Heat resistance
Temperature sensor PT-100 dry and wet bulb sensor
Observation window Tempered glass
Testing hole Diameter 50mm, for cable routing
Sample tray SUS#304 stainless steel, 2pcs



Temperature Tension Rubber Test Machine, Digital High Rubber Temperature Tensile Strength Tester



Film/Plastic Film

Ø ASTM D882: Tensile Test

Ø ASTM F1306: Puncture Test

Ø ASTM D1938: Trouser Tear Test

Ø ASTM D2732: Thermal Shrinkage Test

Ø ASTM D1709, ISO 7765-1: Free-Falling Dart Method

Ø ASTM D1894: Static and Kinetic Coefficients of Friction

Ø ASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test





Plastic& Plastic Pipe

Ø ISO 180: Izod Impact Test

Ø ISO 9966: Ring Stiffness Test

Ø ISO 179: Charpy Impact Test

Ø ISO 4892: Weathering Aging Test

Ø ASTM D3163: Plastic Lap-Shear Test

Ø ISO 4422, ISO 3127: Pipe Impact Test

Ø ASTM D4565, ISO 11357, EN 728: DSC/OIT

Ø ISO 75: Heat Deflection Temperature (HDT)

Ø ASTM D1598: Hydrostatic Pressure and Burst Test

Ø ISO 1133, ASTM D1238: Melt Flow Rate Test (MFR/MVR)

Ø ASTM D790, ISO 178, ISO 14125, ASTM D6272: Bend Test

Ø ISO 306, ASTM D1525: Vicat Softening Temperature (VST)

Ø ASTM D882, ASTM D 638, ISO 527, ASTM D1708: Tensile Test





Rubber

Ø ASTM D412, ISO 37-2005, JIS K6251, DIN 53504-2009: Tensile Strength & Elongation Test

Ø ASTM D1149-07, ASTM D1171-99, ISO 7326, ISO1431-1, DIN 53509-1: Ozone Aging Test

Ø ASTM D624-00, ISO 34-1: Tearing strength Test

Ø ASTM D395-03, ISO 815-1: Compression Set Test

Ø ASTM D2240-05, ISO 7619-1, JIS K6253, ISO 868: Shore Hardness Type A/D

Ø ASTM D573, ASTM D865, ISO188 Method B, DIN 53508 High/ Low Temperature Test

Ø ISO 2781(Method A): Density Test

Ø ASTM D5289-95/ ISO6502: No-Rotor Rheometer/Curemeter
