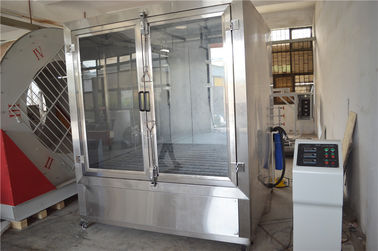

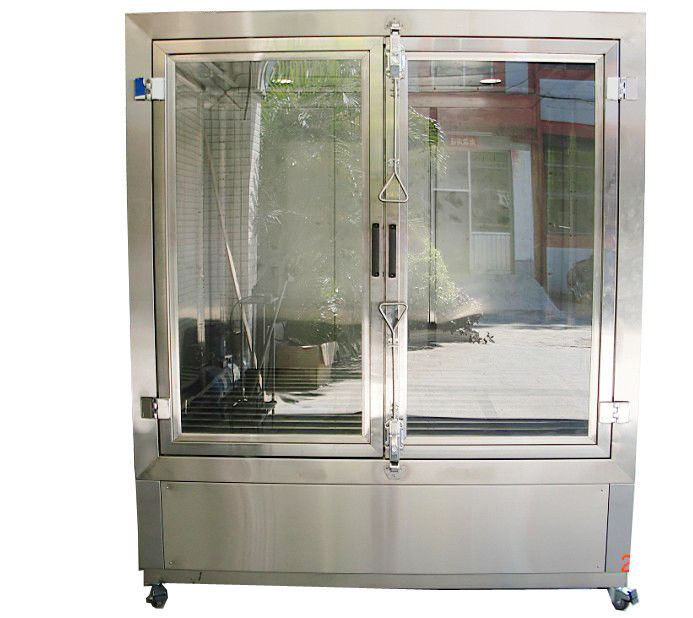

Electronic Furniture Testing Machines , Home Rain Spray Test Machine
Rain Spray Test Machine
1. Application:
Home Appliance Rain Spray Test Machine is suitable for testing the adaptability and reliability of electrical and electronic products, materials, spare parts, etc, in the condition of rain and temperature. Can also be used to external lighting and signal device and vehicle lamps shell protection.
2. Rain Spray Test Machine Feature:
1. Studio equipped with lighting equipment
2. Rain time, interval time, rainfall intensity, regulate and control apart.
3. Technical parameter:
|
Model |
Rain Spray Test Machine |
|
Spray rain radius |
375 and 500mm |
|
Water pipe diameter |
16mm |
|
Spray orifice diameter |
0.4mm |
|
Aperture spacing |
500mm |
|
Swing pipe |
±45°, ±60°, ±90°, ±180° (theory number) |
|
Test stands rotating speed |
1r/min(can be no quarter speed adjustment) |
|
Controller |
Import FM type inverter |
|
Time controller |
Import programmable computer integrated time controller (Jin Zhong Mo le) |
|
Water pressure control |
Flow gauge |
|
Obeservation plane |
Large area of toughened glass door visualization |
|
Water supply system |
Booster pump, water storage |
|
Safty protection |
Leakage, Short circuit, Motor overheating |
|
Design Criteria |
GB10485-89 |
4. Rain Spray Test Machine structure:
1, The outside layer is composed of the high quality stainless steel plate, the inner container is the composed
of stainless steel tabula rasa.
2, Large area of visible glass door, easy to observe the test specimens in the testing chamber
3, The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.
4, With 270 degree swing pipe and 360 degrees whorl pole water jet device.
5, Adjustable speed samples stage.
5. Rain Spray Test Machine Control system:
(Germany) admiralty.
Per stig moller programmable controller to complete the contrl of the whole system of time and sequence. Adopt imported frequency converter speed effectively guarantee the test according to the standard operation.
Equipped with water filter.
