Tensile TAPPI-T804 Carton Compression Tester , Paper Compression Strenth Testing Machines

China Tensile TAPPI-T804 Carton Compression Tester , Paper Compression Strenth Testing Machines supplier
Tensile TAPPI-T804 Carton Compression Tester , Paper Compression Strenth Testing Machines supplier Tensile TAPPI-T804 Carton Compression Tester , Paper Compression Strenth Testing Machines supplier

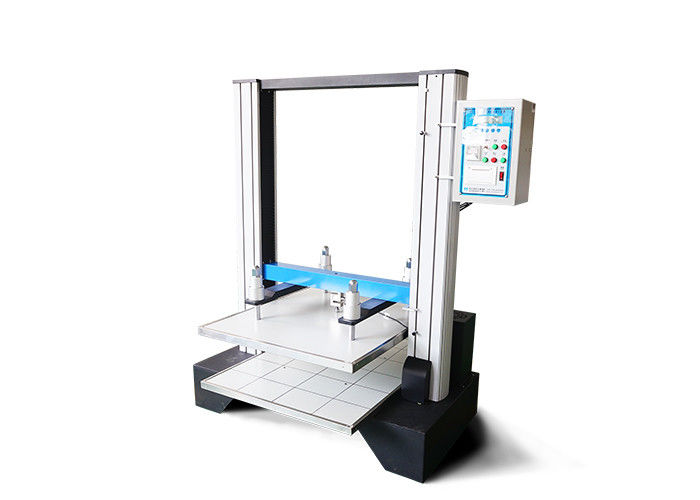

Large Image :  Tensile TAPPI-T804 Carton Compression Tester , Paper Compression Strenth Testing Machines

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A501-600

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Unit (switchable): Kg, Lb, N Load Resolution: 1/100,000
Load Accuracy: ≤0.5% Test Space (L×W×H): 600×800×800mm
Speed Of Compression: 10 ± 3 Mm/min Weight: Approx. 850kg
Standard: TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

 Tensile TAPPI-T804 Carton Compression Tester , Paper Compression Strenth Testing Machines

Specifications
Paper Compression Strenth Testing Machines
1. High quality
2. 2 years warranty
3. Up to TAPPI-T804,
4. Reasonable price


1. About the machine:
Paper Compression Strenth Testing Machine is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.

2. Design criteria:
 TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4

3. Specifications:
Carton Compression Testing Instrument

Model

HD-A501-600

 Unit (switchable)

 Kg, Lb, N

 Capacity (optional)

1T

Load Resolution

1/100,000

 Load Accuracy

  ≤0.5%

Test Space (L×W×H)

600×800×800mm

Speed of Compression

10 ± 3 mm/min

Report Items

Serial number, Peak value, Average value, Designated holding pressure value; all memorable

Structure

AC Frequency Conversion Motor ( Taiwan);
Imported screw rod ;4 sensors; LED display

Dimension (L×W×H)

2370×1500×2100mm (can be custom made)

 Power

 1ø, 220v/ 50Hz

 Weight

 Approx. 850kg

Safety Devices

Overload protection, overvoltage protection & limited position protection device

Standard

TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642


4.Features
Paper Compression Strenth Testing Machines is using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
 It can do test of compression, bending, pressure holding & fatigue.

With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

5.Company Services:
All Haida employees adhere to the " Quality comes from precision, quality creates the future " business
philosophy, serve each client actively and conscientiously in order to satisfy Haida equipment brand
consumers' needs.

The certification
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE,  SMC, CMC, CPA, CE,CMA,IMC
