EN 14764 Strollers Testing Machine , Dynamic Road Bike Testing Equipment

China EN 14764 Strollers Testing Machine , Dynamic Road Bike Testing Equipment supplier
EN 14764 Strollers Testing Machine , Dynamic Road Bike Testing Equipment supplier EN 14764 Strollers Testing Machine , Dynamic Road Bike Testing Equipment supplier EN 14764 Strollers Testing Machine , Dynamic Road Bike Testing Equipment supplier EN 14764 Strollers Testing Machine , Dynamic Road Bike Testing Equipment supplier EN 14764 Strollers Testing Machine , Dynamic Road Bike Testing Equipment supplier

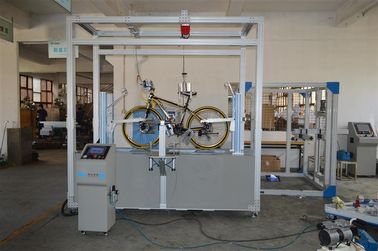

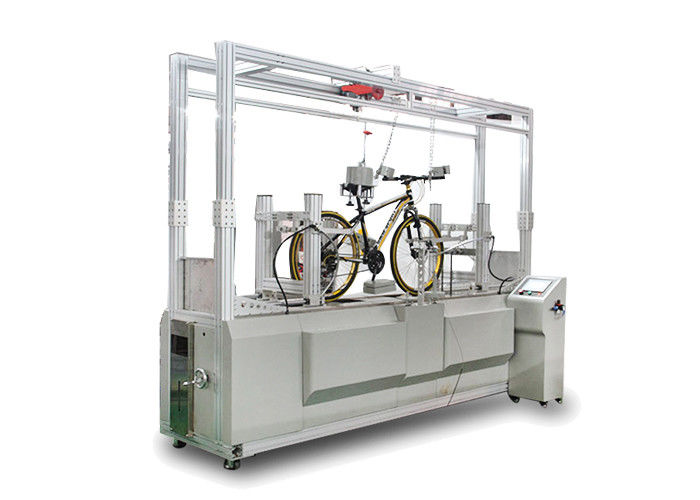

Large Image :  EN 14764 Strollers Testing Machine , Dynamic Road Bike Testing Equipment

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: TT-1052DB

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Model: TT-1052DB / TT-1052B / TT-1052D Diameter: 760/(560 Optional ) / Customer Specified
Dimension(WxDxH): 3030x1200x2900mm (Ref Only) Standard Accessories: Tool Kitx1, Operational Manual In English X1, Testing Dead Weigh, Warranty Certificationx1
Power: 3;220V;50HZ(3;380V Optional) Force To Brake Handlebars: ConformEN14764 Standard(Auto Weight 40~180N)



EN 14764 Strollers Testing Machine , Dynamic Road Bike Test Equipment



Product description:

Dynamic road bike testing machine is suitable to test bike’s run test& brakes performance test. bike testing machine is formed by two rollers with varied diameter and follows specification to install jump plates at bike’s seat post. pedals, bars, luggage carries, with load set to this tester. Adjust the distance between front and rear wheel base on the standard for complete cycles, constantly rotate the wheel is by 7-27km/hr and the bike is supposed to maintain its normal function, no part damage or crack is found. For brake test, follow the specification specified roller’s friction coefficient, wind speed and water-spray amount of loaded brake & handlebars to test the performance



Designed standard:

EN14764, EN14765 (City and trekking bicycle Part 4, Bicycle for young children Part 4)



Main technical:



Model

  TT-1052DB

TT-1052B

TT-1052D



  Brake & run test

Brake test

 Run test

Adjust range between front & rear wheels

mm

  860~1200/(600~1200 optional) / Customer specified







Counter setting

diameter

  760/(560 optional ) / Customer Specified

Jump block amount& combination phase

  EN14764 standard



EN14764 standard

power

  Servo Motor + reducer + Clutch

AC Reduce Motor+ speed Regulation+ clutch

Testing speed(km/hr)

  7-26km/hr(special speed-upon request)

Crank Drive Mechanism(optional)

Testing speed(km/hr)

  7-26km/hr(special speed-upon request)







Counter Weight

Seat Post(Kg)

  36









Overall Weight 120

Pedals(Kg)

  18

Handlebar(Kg)

  6.75

Luggage Carriers(Kg)

   10.18.25.according to luggage  carriers,    area 204X240(Assembly  Type)

Head Tube(Kg)

  14

Force to Brake Handlebars



  ConformEN14764 Standard(Auto weight   40~180N)











Brake Force

Brake Force(N)

  700

  ±1

N/A

Resolution

N/A

Accuracy

N/A

Power

3;220V;50HZ(3;380V optional)

Consumption

KW

10

5

8



Dimension(WxDxH)



3030x1200x2900mm (Ref Only)

Standard Accessories

Tool Kitx1, Operational Manual in English x1, Testing dead weigh, Warranty Certificationx1



Brake test velocities and braking distance:

Ref: (EN14764)





Condition

Velocity(Km/h)

Brakes in use

Braking distance



Dry



25

both

7

Real only

15

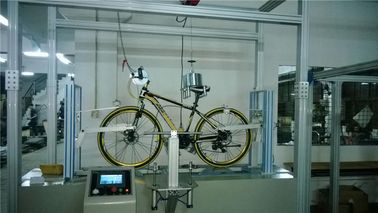

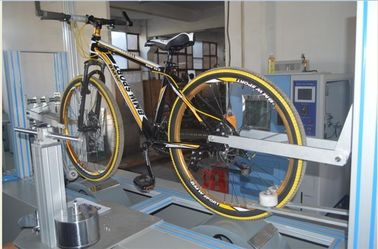

EN 14764 Strollers Testing Machine , Dynamic Road Bike Testing Equipment





Quality guarantee

1)  Quality assurance items

The guarantee period is one year

2)  The main quality warranty maintenance certificate

If there is any dispute please refer to our guarantee letter, so:

① please keep this guarantee letter, if you lost it, please connect with us in a month.

② If this guarantee letter has been altered or it has no our stamp, it is useless.

3)  The following conditions need to pay reasonably even in the assurance period:

① Natural reasons

② Operating mistakes

③ Voltage is not fit for our operation instruction

④ Repack it without our guides

⑤ Damaged for borrowing to others

⑥ Damaged for authorized machine modification

⑦ Damaged for authorized calibration

⑧ Authorized transshipment mistake

⑨ Serve for long distance area

4)  Attentions

① Any service in Taiwan or outside Taiwan, transport and travel fees shall be paid by the customer.

② Any service outside Guangdong, transport and travel fees shall be paid by the customer.
