| Power:: | The Battery Main Switch | Stop:: | Stop Test |
|---|---|---|---|
| Start:: | Press This Button To Start The Test (it Will Be Automatic Stop When Get The Test Times) | Counter:: | Setting The Test Times |
| Time Display:: | To Display Time During Test(s) | Speeder:: | Set The Different Frequency To Change The Impact Velocity. |
| High Light: | packaging drop test equipment,paper and packaging material testing instruments |
||

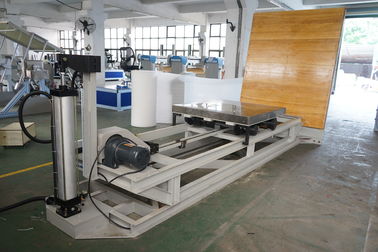

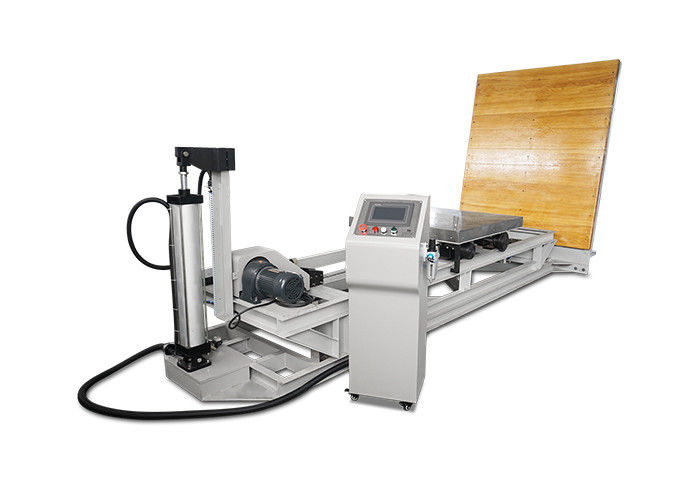

Electric Durable Package Testing Equipment , Incline Impact Strength Tester
Usage:
Incline impact tester is simulated the impact strength of packaging in the real circumstance of transport. Slope impact test machine is apply to the pile up of goods, slide of electromechanical, loading of the engine, transportation of product. This product is also can supply as the test machine to scientific research institution, college, packaging technique test centre, packaging material manufacture and foreign trade or transport department.
Explanation:
| Power: | The battery main switch |
| Stop: | Stop test |
| Start: | Press this button to start the test (it will be automatic stop when get the test times) |
| counter: | Setting the test times |
| Speed display: | To display the velocity during test (m/s), and will automatic reset for another test |
| Time display: | To display time during test(s) |
| Speeder: | set the different frequency to change the impact velocity. |
| up & down: | Press UP or DOWN to adjust the rolling carriage up and down, the max. angle of rolling carriage with base is 13° |
Usage of counter
press this button to choose the each digit and adjust the value
press this button to set the value of each digit (0~9)
RESET: reset the value
MODE :test mode ( can be remain same)
Functions:

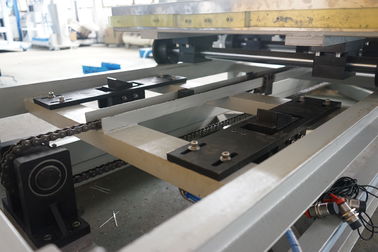

1. Flexible location motor-driven pulley. It is easy to fix and achieve the velocity change.
2. The height of slope is relatively low so that is benefit of fix the specimen; strong impact resistance board, guarantee the fastness of the structure.
3. The pulley can be adjusted to horizontal in order to fix the specimen for customer. The angular adjustment can be driven by cylinder which is flexible and convenience.
4. In order to keep the test staff completely safe the tester support remote control operating.
5. The customer only need to fix the machine on the ground when stalling, no other complicated operation convenient for test.
Operation instruction
Test step:
1. Connect the inlet air tube and air compressor and open air compressor.
2. Power on and turn on power switch the light will be bright.
3. Put the packaged product located in a central position and then put the pallet which has packaged products close to impact surfaceif the size of product package is same as pallet, the product should be vertical close to impact surface.
4. Press up to make the rolling carriage rise to squareto condition with impact surface or rise a certain angle in accord with customer’s requirement.
5. Let the rolling carriage which has packaged product try the test and to determine whether need adjust the acceleration or not, and then adjust the slide distance, when reach the request velocity, now it will display the test velocity & test time on velocity display and time display.
6. Setting the test times cycle in counter.
7. Press start to start the test, and also will display the test velocity & test time on velocity display and time display.
8. The tester will automatic stop when finish the setting times.
9. Press down button to make rolling carriage drop to the parallel position with base; and then take down the samples to check the condition after impact test.
10. Make the test in accord with the step 2~8 and record the all test result.
