EN-1888 Standard Strollers Testing Machine , Stroller Simulate Uneven Road Tester

EN-1888 Standard Strollers Testing Machine , Stroller Simulate Uneven Road Tester
EN-1888 Standard Strollers Testing Machine , Stroller Simulate Uneven Road Tester EN-1888 Standard Strollers Testing Machine , Stroller Simulate Uneven Road Tester EN-1888 Standard Strollers Testing Machine , Stroller Simulate Uneven Road Tester EN-1888 Standard Strollers Testing Machine , Stroller Simulate Uneven Road Tester EN-1888 Standard Strollers Testing Machine , Stroller Simulate Uneven Road Tester

Large Image :  EN-1888 Standard Strollers Testing Machine , Stroller Simulate Uneven Road Tester

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-J210
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power: Electric Port: ShenZhen
Design Standard: EN 1888:2012 Test Count: 0-999,999
High Light:

dynamic test machine

,

strollers testing equipment



EN-1888 Standard Strollers Testing Machine , Stroller Simulate Uneven Road Tester



1  Description:

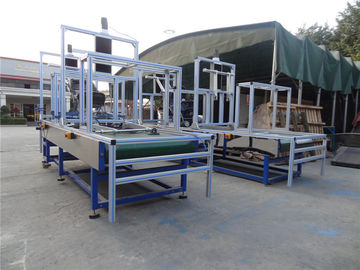

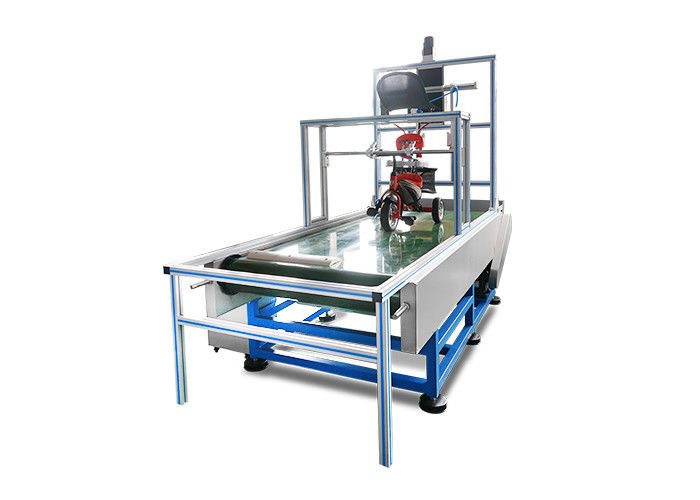

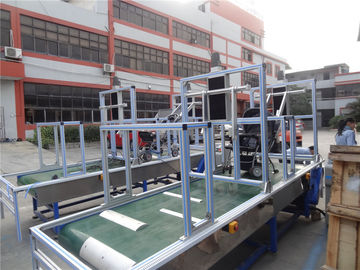

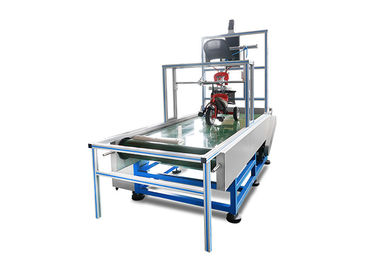

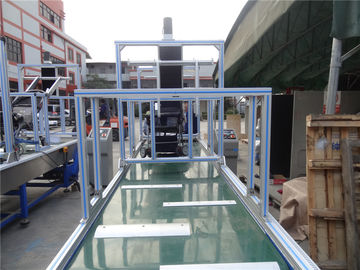

Stroller simulate uneven road tester is for testing the stroller wheel performance on the harmful roadway,after doing the repeat impact test,examine the wheel change the Shape or damage.(Base on the EN-1888 requirement/Customer specified requirement)  User can preset speed and cycle quantity in the PLCinterface.

Design standard: EN 1888:2012

Technical parameters:

Model:TT-J210TT-J210-ATT-J210-B
Conveyor speed:5km/h ±0.5km/h
Effective width:Max.1000mmMax. 800mmMax.1000mm
Test count:0-999,999
Bearing load Max.:Max. 100LbMax. 100LbMax. 100Lb
Aluminums block high:Base on the EN-1888 standard/ Customer specified)
Emergency stop buttons:244

Standard accessory list:


Model

TT-J210

TT-J210-A

TT-J210-B

Obstacle

1 set

1 set

2set

Motor

AC motor 220V/50Hz 1KW

AC motor 220V/50Hz 1.5KW

Testing weights

2 set (9kg & 15kg)

2 set (9kg & 15kg)

2 set (9kg & 15kg)

Conveyor

1 pc

1 pc

1 pc


Motor specification:

Brand: OPG
Model: CH-40
Detail specification as attachment ( motor specification)


EN-1888 Standard Strollers Testing Machine , Stroller Simulate Uneven Road Tester 0

EN-1888 Standard Strollers Testing Machine , Stroller Simulate Uneven Road Tester 1

6Quality guarantee
1)  Quality assurance items
The guarantee period is one year
2)  The main quality warranty maintenance certificate
If there is any dispute please refer to our guarantee letter, so:
① please keep this guarantee letter, if you lost it, please connect with us in a month.
② If this guarantee letter has been altered or it has no our stamp, it is useless.
3)  The following conditions need to pay reasonably even in the assurance period:
① Natural reasons
② Operating mistakes
③ Voltage is not fit for our operation instruction
④ Repack it without our guides
⑤ Damaged for borrowing to others
⑥ Damaged for authorized machine modification
⑦ Damaged for authorized calibration
⑧ Authorized transshipment mistake
⑨ Serve for long distance area
4)  Attentions
① Any service in Taiwan or outside Taiwan, transport and travel fees shall be paid by the customer.
② Any service outside Guangdong, transport and travel fees shall be paid by the customer.
