Universal Tensile Testing Machine / Tear Resistance Tester to Test Tensile Strength

China Universal Tensile Testing Machine / Tear Resistance Tester to Test Tensile Strength supplier
Universal Tensile Testing Machine / Tear Resistance Tester to Test Tensile Strength supplier Universal Tensile Testing Machine / Tear Resistance Tester to Test Tensile Strength supplier Universal Tensile Testing Machine / Tear Resistance Tester to Test Tensile Strength supplier Universal Tensile Testing Machine / Tear Resistance Tester to Test Tensile Strength supplier Universal Tensile Testing Machine / Tear Resistance Tester to Test Tensile Strength supplier

Large Image :  Universal Tensile Testing Machine / Tear Resistance Tester to Test Tensile Strength

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B609A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Power: Electronic|AC220V 50HZ Product Name: Furniture Testing Equipment
Use: Test Tensile Strength, Tearing Force, Peeling And Adhesive Force Type: Furniture Tear Resistance Tester
Sensor: LOAD CELL Strength Sensor Capacity: 50,100,200,500kg
Display Configuration: Computer Display

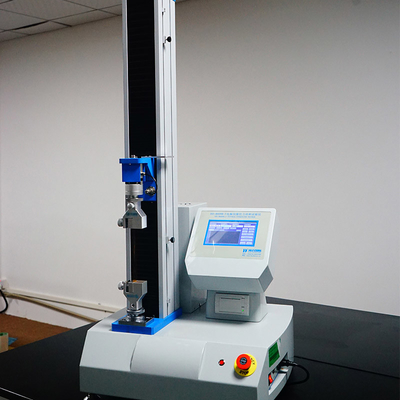

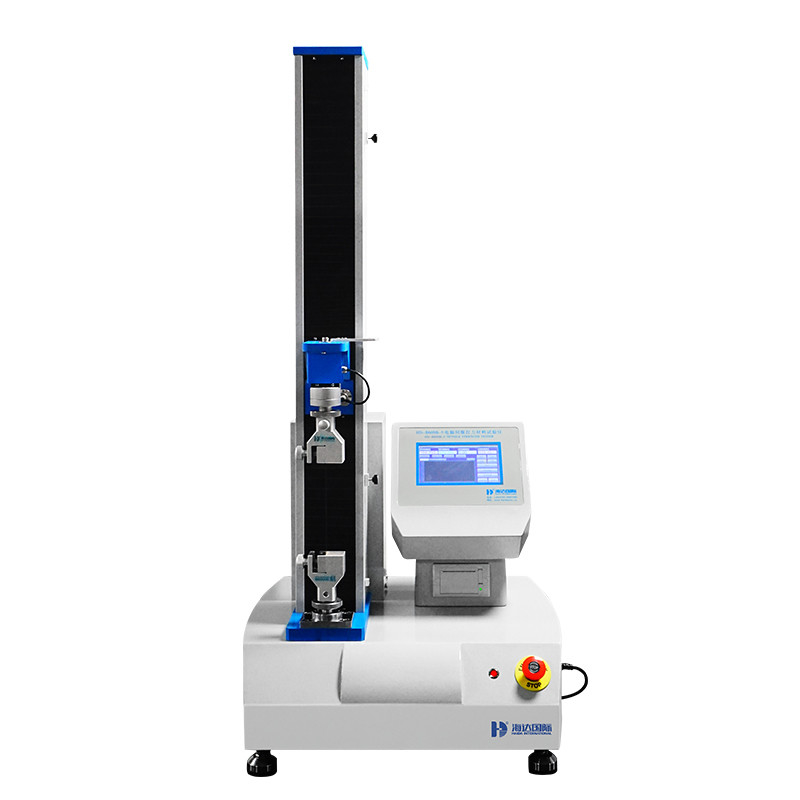

                                 Universal Tensile Testing Machine / Tear Resistance Tester to Test Tensile Strength (HD-B609A)





APPLICATIONS

  1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
  2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
  3. Deformation under defined load: Test deformation under defined load of tested sample
  4. Load under defined deformation: Test load under defined deformation of tested sample
  5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Film/Plastic Film

  • ASTM D882: Tensile Test
  • ASTM F1306: Puncture Test
  • ASTM D1938: Trouser Tear Test
  • ASTM D2732: Thermal Shrinkage Test
  • ASTM D1709, ISO 7765-1: Free-Falling Dart Method
  • ASTM D1894: Static and Kinetic Coefficients of Friction
  • ASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test

Instruction:



1. Power switch: main switch of the machine

2. Power indicator light: The power indicator light will be on when power on. It will be off when power off or electricity is not ok.

3. Emergency switch: This key can help to stop the machine immediately when there is an abnormality.

4. Speed adjuster: the speed adjust button to pull the upper fixture

5. Upper and lower fixture

6. Length sensor: it will sensor the resistant strength when the lower panel goes upward, and will output the strength to the display screen.



Specification table (tab.1)



Item Description
Max. Force 2000 kg (20KN)
Load cell Germany brand load cell for high accuracy
Control system PC with windows 7 system
Motor Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Stoke 1100mm including fixture
Load cell Resolution 1/250,000
Load Precision within ±0.5%
Test speed 0.01~500mm/min (adjustable)
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retrea





Generl Specifications

Packaging Dimensions: (W*D*H) 690*1080*1790mm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 280kg
