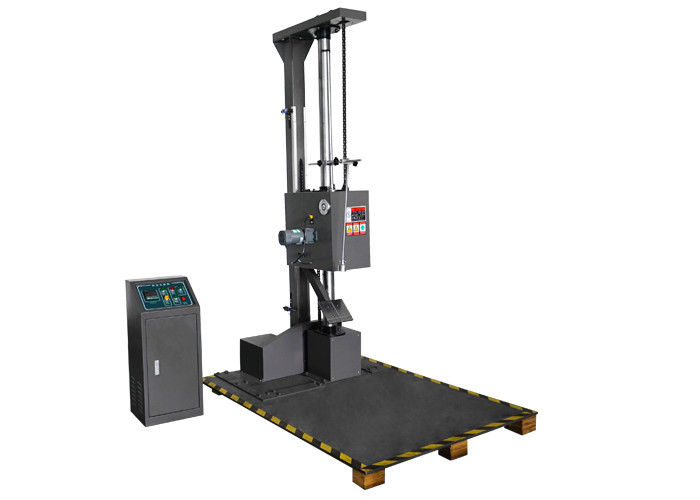

Electronic Package Testing Equipment , ISO 2248 Digital Carton Drop Testing Equipment

China Electronic Package Testing Equipment , ISO 2248 Digital Carton Drop Testing Equipment supplier
Electronic Package Testing Equipment , ISO 2248 Digital Carton Drop Testing Equipment supplier Electronic Package Testing Equipment , ISO 2248 Digital Carton Drop Testing Equipment supplier Electronic Package Testing Equipment , ISO 2248 Digital Carton Drop Testing Equipment supplier Electronic Package Testing Equipment , ISO 2248 Digital Carton Drop Testing Equipment supplier

Large Image :  Electronic Package Testing Equipment , ISO 2248 Digital Carton Drop Testing Equipment

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A520

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Max. Load: 50KG Power: Electronic
Dropping Height: 300mm-1500mm Display Method: Digital Display
Maximum Weight Of The Package: 60kg Maximum Size Of The Package: (L×W×H)1000×700×1000mm



          Electronic Package Testing Equipment , ISO 2248 Digital Carton Drop Testing Equipment



Specifications


1.Test the damage degree when the package is dropped
2.CE certificated
3.Reasonable price



1. Function
Electronic Drop Tester Exporter is used to test the damage degree when the package is dropped, and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.

2. The comparison table of the package weight and dropping height:



Weight Height
No less than Less than Free-drop
Lbs Kg Lbs Kg Inch mm
0 0 21 10 30 760
21 10 41 19 24 610
41 19 61 28 18 460
61 28 100 45 12 310
100 45 150 68 8 200

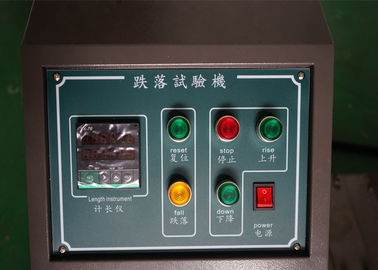

3. Operation of control chamber

A. Carton Drop Testing Equipment adopts electromagnet control system to control the dropping swing
B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function
C. The testing height can be digital set up.
Test standards: GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276

4. The Technical parameters:


Electronic Drop Tester Exporter

Dropping height

300mm-1500mm

Display method

digital display

Maximum weight of the package

60kg

Maximum size of the package

(L×W×H)1000×700×1000mm

Size of the dropping panel

(L×W)1700×1400mm

Size of the swing

290×240×8mm

Dropping deviation

±10mm

Deviation of dropping horizon

less than 1°

Outside size

(L×W×H)1700×1400×2215mm

Chamber size

(L×W×H)350×350×1100mm

Weight

550kg

Power

AC380V,50Hz

Transmitt approach

Electric transmission


5. Configuration

1.     Outside material: advanced paint coat

2.     Display: LCD display

3.     Power system:drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)

4.     Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control

5.     Safety device:upper and lower limitation device, automatic off-power device if electricity leakage occurs

6.     Accessories:electric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece





Electronic Package Testing Equipment , ISO 2248 Digital Carton Drop Testing EquipmentElectronic Package Testing Equipment , ISO 2248 Digital Carton Drop Testing Equipment
