Product Details:
Payment & Shipping Terms:
|
| Mode: | HD-207 | Test Specimen: | 44+-1mm*4 |
|---|---|---|---|
| Load: | 595G,795G | Counter/Timer: | LCD, 0-999999 |
| Machine Size: | 58.5*56.5*32.5cm | Power: | 1ø,AC220V,1.5A |
| High Light: | fabric checking machine,textile industry equipment |
||

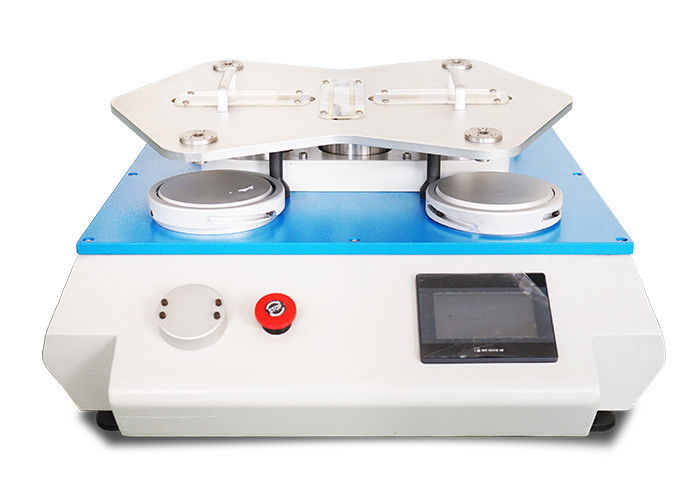

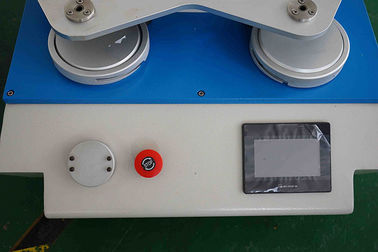

Durable Textile Testing Machine , ASTM-D4966 Martindale Leather Abrasion Tester
Feature:
ASTM-D4966 Martindale Abrasion Testing Machine mainly applies to the resistance test of textile and outside layer, lining or underlayer of the footware or the similar fabric. Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajous-oriented for the regulated times, then observe the difference between it and the original samples and decide the grade of scrubbing resistance.
1. Abrasion Tests:
ASTM D4966 Standard Test Method for Abrasion Resistance of Textile Fabrics (Martindale Abrasion Tester Method)
ISO 12947-1 Textiles -- Determination of the abrasion resistance of fabrics by the Martindale method
BS 2543, BS 3424-24, BS 5690, BS 8428, ISO 17704, ISO 5470-2, IWTO 40, M&S P19, Next 18
SFS 4328, SN 198529, TWC 112, Volvo 1024, 7122
2.Pilling Tests:
ASTM D4970 Standard Test Method for Pilling Resistance and Other Related Surface Changes of Textile Fabrics: Martindale Tester
ISO 12945-2 Textiles -- Determination of fabric propensity to surface fuzzing and to pilling -- Part 2: Modified Martindale method
M&S P17, M&S P18C, Next TM26, SN 198525, Woolmark TM196
3.Standard Features:
| Scope |
Abrasion: Flat woven, knitted and certain non-woven fabrics Pilling: Woven and knitted fabrics |
| No. of specimens | 9 (for Abrasion or pilling) |
| Working pressure on test specimen | 3kpa, 9kpa and 12kpa |
| Rotational Speed | 60.5 ± 0.5mm (Abrasion), 24.0 ± 0.5mm (Pilling) |
| Parallelism of top plate to abrading tables | ≦0.05mm |
| Dimensions | 885 x 600 x 410 mm |
| Power supply | 220V, 50Hz |
| Weight | 170kg |
5.Standard:
ISO 5470 DIN 53863/53865 BS 3424/5690 IWTO 40-88 BS EN388/530 IWSTM 112/196 ASTM 4966/4970 IS 12673 JIS L1096 SFS 4328 PR EN ISO 12947-1 PR EN ISO 12945-2 SATRA TM31 ISO 20344
