Product Details:
Payment & Shipping Terms:
|
| Counter: | LCD, 0~999, 999 | Power: | Electronic |
|---|---|---|---|
| Product Name: | Furniture Testing Equipment | Use: | Office Chair |
| Type: | Office Chair Back Durability Tester | Air Pressure: | 0~150 Ib |
| High Light: | furniture testing equipment,impact testing machine |
||

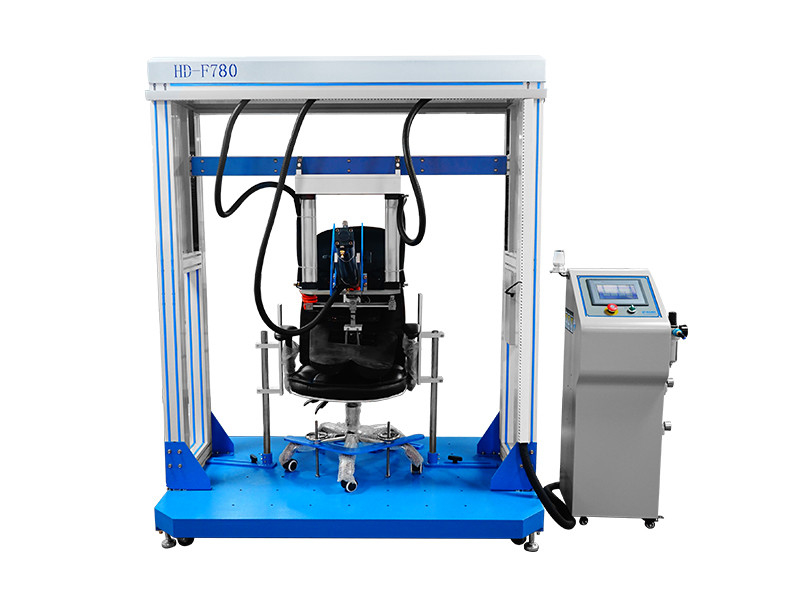

LCD Counter Furniture Testing Machines , Chair Backrest Durability Testing Machine
Chair Seat and Back Test Video
Applicability
This test shall be performed on Type Il and lll chairs.
( Type II - Fixed seat angle, tilting backrest
Type lll - Fixed seat angle, fixed backrest )
Note: This test does not apply to chairs with backrest height less than 200 mm (7.9 in.).
Purpose of Test
The purpose of this test is to evaluate the ability of the chairs to withstand fatigue stresses and
wear caused by rearward force on the backrest of the chair.
Specifications
Office Chair Back Durability Tester
1. Professional design
2. High quality with reasonable price
3. One year warranty free.
The parameters
Office Chair Back Durability Tester
|
Height of Seat Back |
500~1200 mm or specified |
|
Weight of Seat |
225 lb or specified |
|
Air Pressure |
0~150 Ib |
|
Stroke |
0~18 in |
|
Force Angle |
0~90° |
|
Test Speed |
16 - 20 times/min or specified |
|
Counter |
LCD, 0~999, 999 |
|
Dimension (W×D×H) |
66 × 136 × 140 cm |
|
Weight |
549 kg |
|
Power |
AC220V, 3A |
The usage
Office Chair Back Durability Tester
It`s to evaluate the ability of the chair back to withstand the fatigue stress and wear that occur as the result of user exerting backward pressure on the chair.
