| Test Force: | 1～30,000N | Force Transducer: | 3000N |
|---|---|---|---|
| Power: | 850W | Test Speed: | 0.1-120 Times /min |
| Machine Size: | LxWxH=1100x1100x1650 Mm | Maximum Test Sample Size: | 1000mm*1000mm |
| High Light: | fatigue testing equipment,impact testing machine |
||

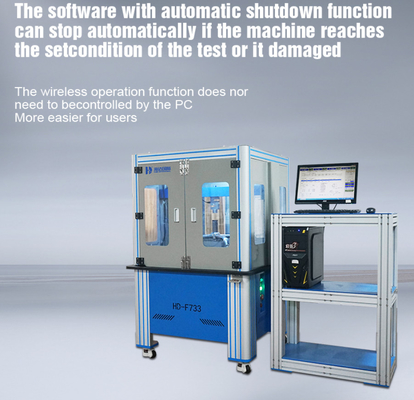

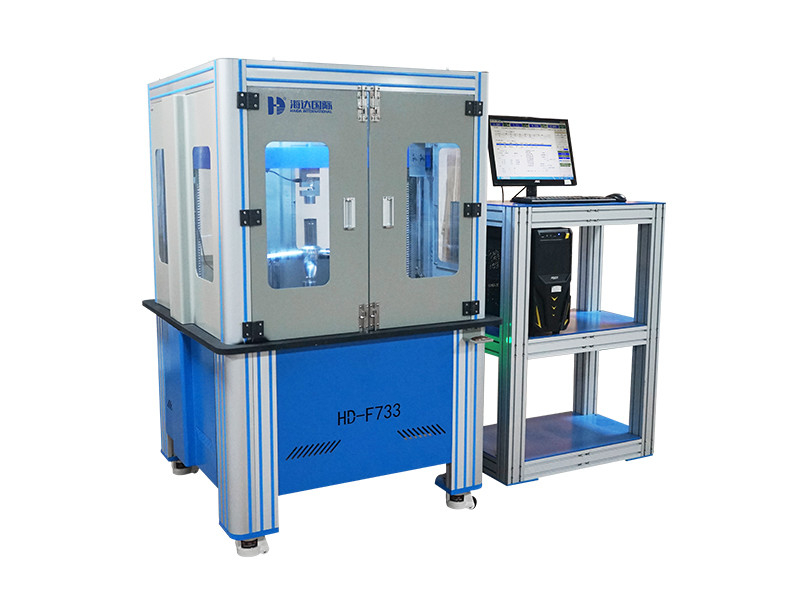

Vertical Force Testing Equipment For Chair Pressure Testing / Destructive Testing
Introduction
Vertical Force Tester used for the vertical pressure testing, destructive testing and fatigue testing use of the office chair Ipomoea base (Star Base) repeated pressure loading in setting force test cycle, as the fatigue test. Pressure on the size of the holding pressure time and cycle number of tests can be adjusted.
Specification
Packaging Dimensions: (W*D*H)1150*1150*1950mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight:300kg
HS Code: 9024800000
Standards: BIFMAX5.1 2017
Standard Features
| Item | Description |
| Force transducer | 30,000N |
| Test force | 1～30,000N |
| Display mode | Computer monitor |
| Control mode | Computer software control |
| Power supply | AC /220V,10A,50HZ |
| Power | 850W |
| Test speed | 0.1-120 times /min |
| Machine size | LxWxH=1100x1100x1650 mm |
| Maximum test sample size | 1000mm*1000mm |
Applications
Step 1: Install the chair foot base on the chair foot pad and put it on the testing machine base (as shown above);
Step 2: Put the base pressure block on the five-star base of the chair (as shown above);
Step 3: Set the loading force to 11120N and return after holding pressure for one minute. Load 11120N again within one minute and return after holding pressure for one minute.
Step 4: After the test is completed, it will stop automatically, and the two-color green light will flash to remind the test is completed
Configuration
| Configuration | Name | Details |
|
Items |
Documents |
Certificate of quality*1 piece; Accessories list*1 piece; Operation Manual *1piece; |
| Power line | 1∮ AC 220V | |
| DB9 communication line | 1 piece | |
| Test fixture | (Support column + pressure head + tray)*1 | |
| USB cable | 1 piece | |
| USB flash disk | 1G capacity *1 piece | |
| Sensor | 30KN*1 piece | |
| Computer with Software | 1 set (optional) |
