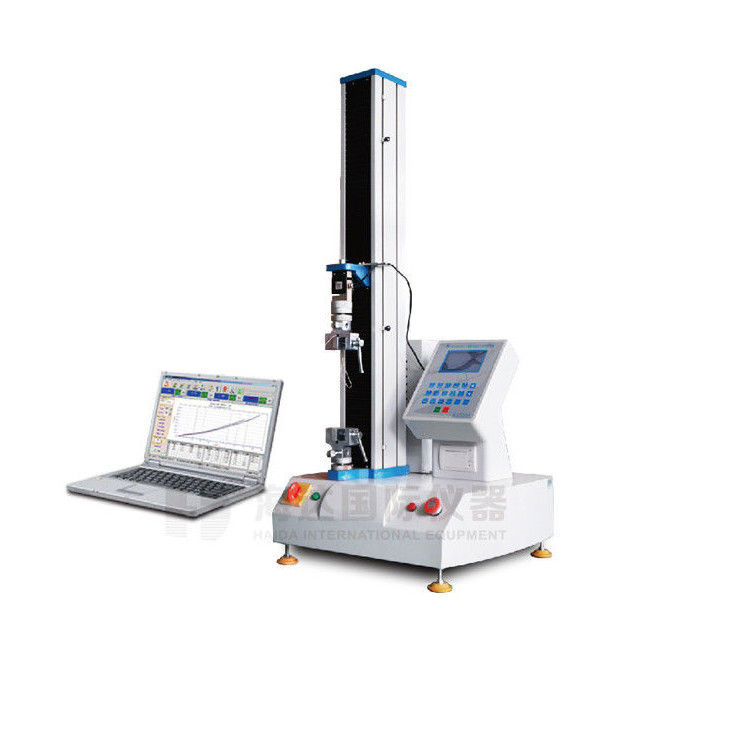

Strength Furniture Testing Machines , Foam Tear Resistance Tensile Strength Testing Machine
1. Usage
FOAM TEAR RESISTANCE TENSILE STRENGTH TESTING MACHINE is used to test the tensile strength, tearing force, peeling and adhesive force- the physical property of strength resistance.
2. Theory:
FOAM TEAR RESISTANCE TENSILE STRENGTH TESTING MACHINE adopts the electronic tensile meter, use the motor to make displacement of the fixture.
Place the fixture with sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor the tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Ⅱ. Standards
The applicable standards of this machine:GB/T 16491,GB/T 1040,GB/T 8808,GB/T 13022,GB/T 2790,GB/T 2791,GB/T 2792,GB/T 16825,GB/T 17200,GB/T 3923.1,GB/T 528,GB/T 2611,GB/T 6344,GB/T 20310,GB/T 3690,GB/T 4944,GB/T 3686,GB/T 529,GB/T 6344,GB/T 10654,HG/T 2580,JC/T 777,QB/T 2171,HG/T 2538,CNS 11888,JIS K6854,PSTC-7,ISO 37,AS 1180.2,BS EN 1979,BS EN ISO 1421,BS EN ISO 1798,BS EN ISO 9163,DIN EN ISO 1798,GOST 18299,DIN 53357,ISO 2285,ISO 34-1,ISO 34-2,BS 903,BS 5131,DIN EN 12803,DIN EN 12995,DIN53507-A,DIN53339,ASTM D3574,ASTM D6644,ASTM D5035,ASTM D2061,ASTM D1445,ASTM D2290,ASTM D412,ASTM D638,ASTM D3759/D3759M
3. Specification table (tab.1)
|
Items |
Specification |
|
Sensor |
LOAD CELL strength sensor |
|
Capacity |
50,100,200,500kg |
|
Unit switch |
g,kg, N, LB |
|
Display configuration |
Computer display |
|
Resolution |
1/250,000 |
|
Precision |
±0. 25% |
|
Max. stroke |
1000mm(include fixture) |
|
Test speed |
20～300 mm/min(can be adjustable by computer) |
|
Power |
1∮,AC220V 50HZ |
|
Weight(approx.) |
Approx.85kg |
Features
1. Power switch: main switch of the machine
2. Power indicator light: The power indicator light will be on when power on. It will be off when power off or electricity is not ok.
3. Emergency switch: This key can help to stop the machine immediately when there is an abnormality.
4. Speed adjuster: the speed adjust button to pull the upper fixture
5. Upper and lower fixture
6. Length sensor: it will sensor the resistant strength when the lower panel goes upward, and will output the strength to the display screen.
