Continual/ cyclic 600Lspraying corrosion trial salt fog test chamber for stainless steel

China Continual/ cyclic 600Lspraying corrosion trial salt fog test chamber for stainless steel supplier
Continual/ cyclic 600Lspraying corrosion trial salt fog test chamber for stainless steel supplier Continual/ cyclic 600Lspraying corrosion trial salt fog test chamber for stainless steel supplier Continual/ cyclic 600Lspraying corrosion trial salt fog test chamber for stainless steel supplier Continual/ cyclic 600Lspraying corrosion trial salt fog test chamber for stainless steel supplier Continual/ cyclic 600Lspraying corrosion trial salt fog test chamber for stainless steel supplier

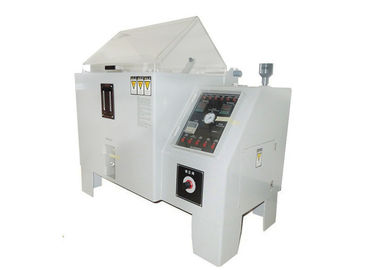

Large Image :  Continual/ cyclic 600Lspraying corrosion trial salt fog test chamber for stainless steel

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E808-90A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Brine Tank Capacity: 15L|25L Equipment Material: P.V.C Rigid Plastic Board
Lab Volume: 108L|270L Temperature Precision: ±1℃
Temperature Range: 35℃~55℃ Temperature Uniformity: ≤±2℃



Continual/ cyclic 600L spraying corrosion trial salt fog test chamber for stainless steel





Product introduction:


Paint Electroplating Salt Spray Corrosion Testing Chamber is is designed for surface treatment of corrosion-resistant capacity test for various materials,including paint, electroplating, organic and inorganic film, antirust oil,chemicaltreatment, and then achieves a long period of resistance to corrosion products.


Continual/ cyclic 600Lspraying corrosion trial salt fog test chamber for stainless steel


Application Industry:


1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others...




Design standard:


CNS:3627,3385,4159,7669,8886;JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: 8117,B268.





Standard Parameters:



Model HD-E808-90 salt fog test chamber
Internal Size (L×W×H) 900x600x500mm
External Size (L×W×H) 1410x880x1280mm
Equipment Material Both inside & outside shell adopt P.V.C rigid plastic board
Temperature Range Room temperature ~ 55℃
Temperature Fluctuations ≤±0.5℃
Temperature Uniformity ≤±2℃
Temperature Precision ±1℃
Spraying method Continuous and Periodic spray type
Test Chamber Temperature Salt Spray Method (NSS ACSS)35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃
Saturated air Barrel Temperature Salt Spray Method (NSS ACSS)47±1℃
Corrosion-resistant Testing Method (CASS) 63±1℃
Brine Temperature 35℃±1℃
Spray Quantity 1.0~2.0 ml / 80cm2 / hr
PH value Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume 270L
Brine Tank Capacity 25L
Multiple Safety Protection Devices Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories Testing Salt/ Measuring tank/Nozzle Equipment x 1 set
Air source 1HP Air pump (provided by buyer)





Product Features:



1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.

2, Reservoirs with mixing system on stand.

3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.

4, Exposure zone lined with corrosion-resistant PVC sheets.

5, Clear cover allows viewing of test conditions.

6, Peaked cover prevents dripping of condensation onto samples.

7, Water seal and water level protection system.

8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.

9, Automatic DI water fills to humidifying tower.

10, Digital temperature control.

11, Integral over-protection on heaters.

12, Low water cut-off protection on humidifying tower.

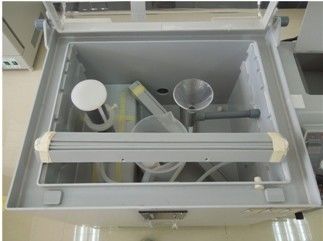

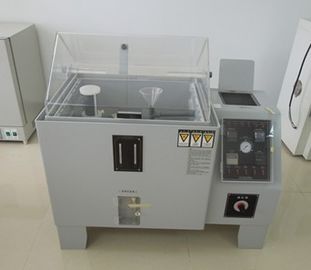

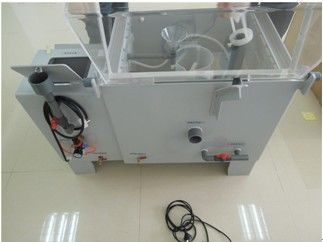

1 set nozzle + 2 sets spray collection funnel + transparent PVC cover  chamber picture:

Continual/ cyclic 600Lspraying corrosion trial salt fog test chamber for stainless steel



(salt spray chamber)Related products:
Model / Link Interior Dimensions(W x D x H)
HD-E808-60 600x400x450mm)
HD-E808-90 900x600x500mm
HD-E808-120

1200x1000x50





The Introduction Of HAIDA :



HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.





Continual/ cyclic 600Lspraying corrosion trial salt fog test chamber for stainless steelContinual/ cyclic 600Lspraying corrosion trial salt fog test chamber for stainless steelContinual/ cyclic 600Lspraying corrosion trial salt fog test chamber for stainless steel
