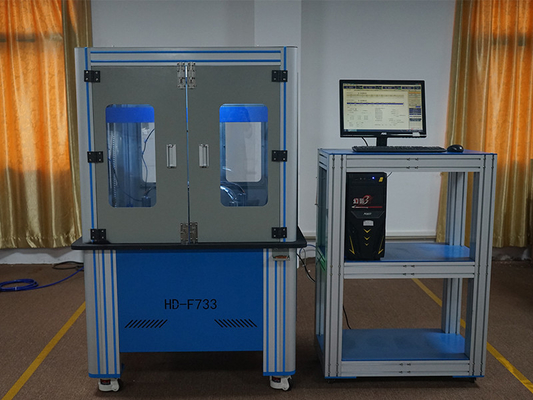

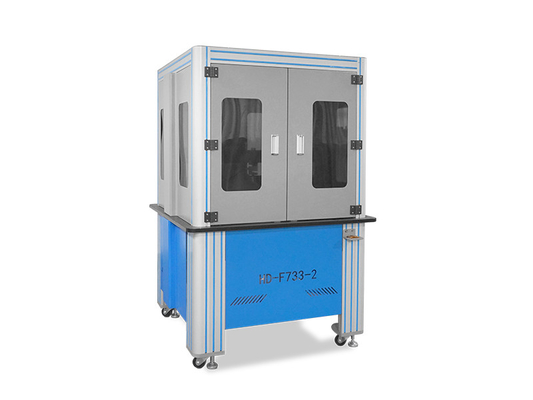

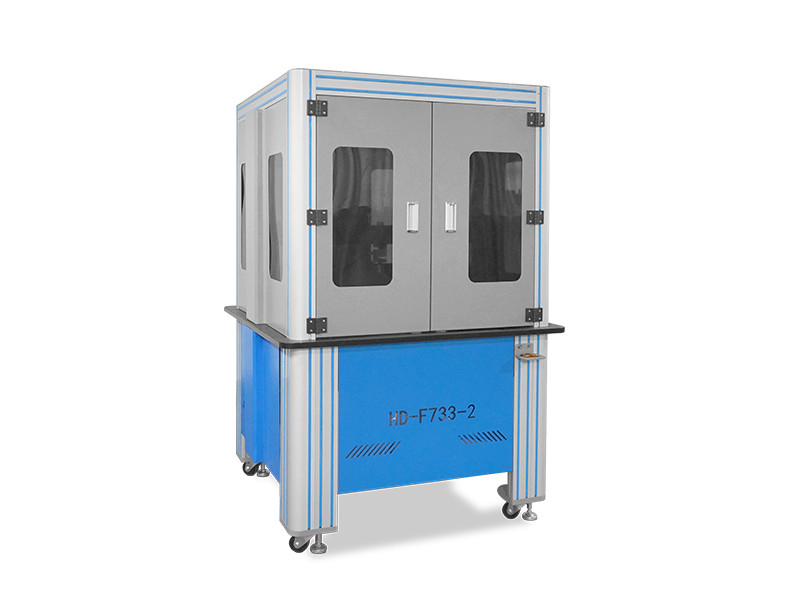

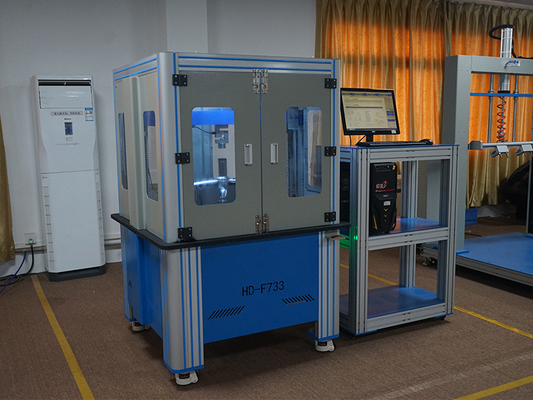

Electronic Fatigue Furniture Testing Machines , Chair Vertical Force Tester

Brand Name: HAIDA
Model Number: HD-F733
MOQ: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
ISO,CE
Control Method:
PLC And LCD Display
Cylinder Stroke:
10 ~ 500 Mm
Power:
Electronic
Product Name:
Furniture Testing Equipment
Use:
Vertical Pressure Testing, Destructive Testing And Fatigue Testing
Type:
Chair Vertical Force Tester
Supply Ability:
300 Sets per Month Haida
Highlight:

furniture testing equipment

,

impact testing machine

Product Description

Electronic Fatigue Furniture Testing Machines , Chair Vertical Force Tester



Introduction

 Chair Vertical Force Tester used for the vertical pressure testing, destructive testing and fatigue testing use of the office chair Ipomoea base (Star Base) repeated pressure loading in setting force test cycle, as the fatigue test. Pressure on the size of the holding pressure time and cycle number of tests can be adjusted.



Main Parameters:

1, Bifma × 5.1 Section 8
2, Output rated pressure > 3000KG
3, Stroke 10 ~ 500 mm, adjustable speed range 0-50 mm pole control servo planetary reducer + domestic + servo motor
4, Can test the maximum five-star foot diameter less than 900mm
5, Dwell time, the machine, the light of the sample changes and automatically adjust and compensate for the pressure difference, stable pressure test packing process given.
6, The peak value of the machine with force, you can record the maximum damage value
7, Control mode PLC and LCD display
8, Counter 0 to 999,999 times, also choose a single cycle, in line with the requirements of the test standard.
9, The machine with iron mesh and shatterproof film protective cover to prevent debris pop-up specimen during testing.



Electronic Fatigue Furniture Testing Machines , Chair Vertical Force Tester 0
