Electric Rubber Testing Machine , Standard Safety Footwear Impact Testing Equipment

Electric Rubber Testing Machine , Standard Safety Footwear Impact Testing Equipment
Electric Rubber Testing Machine , Standard Safety Footwear Impact Testing Equipment Electric Rubber Testing Machine , Standard Safety Footwear Impact Testing Equipment Electric Rubber Testing Machine , Standard Safety Footwear Impact Testing Equipment Electric Rubber Testing Machine , Standard Safety Footwear Impact Testing Equipment

Large Image :  Electric Rubber Testing Machine , Standard Safety Footwear Impact Testing Equipment

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-P303
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power: Electric Port: ShenZhen
Warranty: 1 Year Power Supply: 3∮,AC380V
Weight: 227kg
High Light:

rubber testing equipments

,

rubber hardness tester



Electric Rubber Testing Machine , Standard Safety Footwear Impact Testing Equipment



Specifications

1,Meet standard of EN, ANSI, BS, CSA
2,Use friendly &easy operation
3,Motorised lift of the striker mechanism
4,Short delivry



Description:

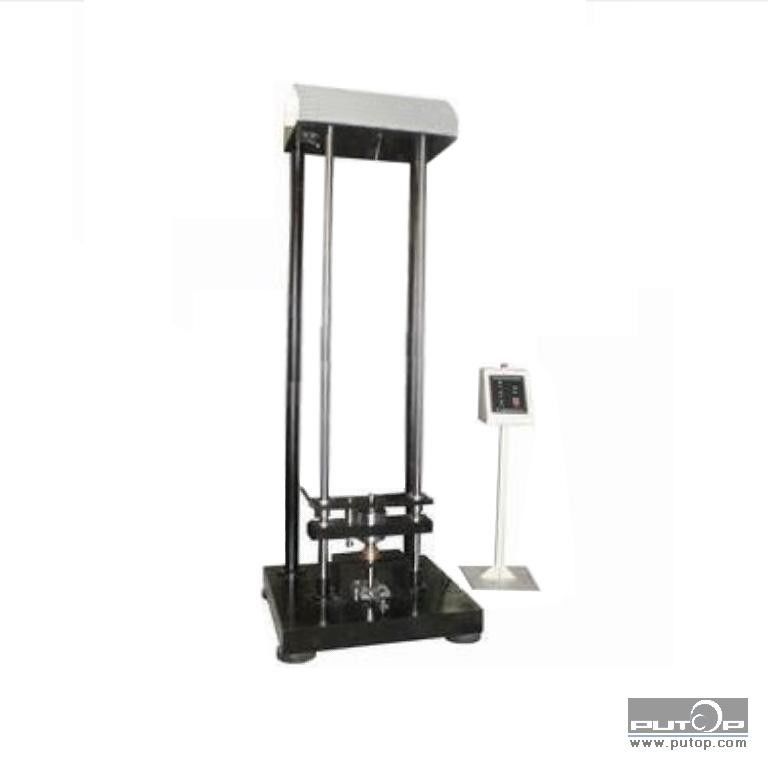

EN, ANSI, BS, CSA Standard Safety Footwear Impact Testing Machine can be used for a variety of impact (drop) tests with the appropriate anvils and strikers. It is ideal for testing to the safety footwear standards and meets the full requirements of the latest revisions to the standards.



This machine incorporates many new features, including motorised lift of the striker mechanism which moves automatically to a pre-set height and now incorporates a speed sensor that will determine if the correct impact energy has been achieved. It complies with EN, ANSI, BS, CSA regulations. Impacting the the steel toe caps of satety shoes through 100J or 200J power, then observe the sinkage to value its quality. The design is different among EN, ANSI, BS, CSA, so please prescribe the regulation when ordering.



A new slide mechanism ensures minimum frictional losses and it also incorporates a belt drive system to provide the striker drop height position. New guarding provides complete operator safety while giving full access to the anvil area for ease of setting up each test. An anti-bounce device prevents a double impact strike on the footwear under test.



Specification:



Drop hammer weight

(EN)20±0.2kg, (BS, ANSI) 22.7kg

Falling altitude

(EN)0-1100mm

Impact capability

(EN)200J, (BS, ANSI)100±2J

Impact blade ring

(EN)3±0.1mm R, (ANSI)25.4 D

Horsepower

AC 1/8HP

Volume-mainframe

21.5*19*12.6

Weight

227kg

Power

3∮,AC380V

Design criteria

BS-953, 1870, EN-344, ANSI-Z41
CSA-Z195, ISO8782



Electric Rubber Testing Machine , Standard Safety Footwear Impact Testing Equipment 0 Electric Rubber Testing Machine , Standard Safety Footwear Impact Testing Equipment 1
Electric Rubber Testing Machine , Standard Safety Footwear Impact Testing Equipment 2



Our Company

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.



Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
