Stable Rubber Testing Machine , Electronic Leather Scratch Resistance Testing Equipment
Introduction
Usage
Electronic leather scratch resistance testing equipment applies to the scratching resistance test of leather, lining, fabric and the similar material at room temperature.
Principle
Electronic leather scratch resistance testing equipment is according to test standards : test method id one side face of the sample as the inner surface and the other side face as the outside surface and bend this surface back and forth, write down the times that the sample have broken; or set the breakage time, then take it out and observe the degree it broken.
Clamping the specimen in fixture, after flexing back and forth in 22.5°, observe the surface with a magnifying glass, record the damage degree to judge the resistance strength of flexing.
Ⅱ﹑Design criteria
Design criteria: BS-3144,JIB-K6545,CNS-7705,ASTM-D2813.
Equipment Instruction
Structure

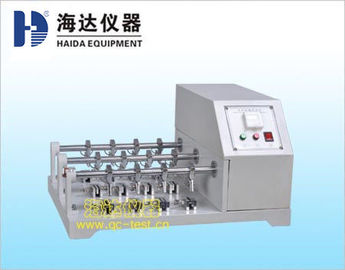

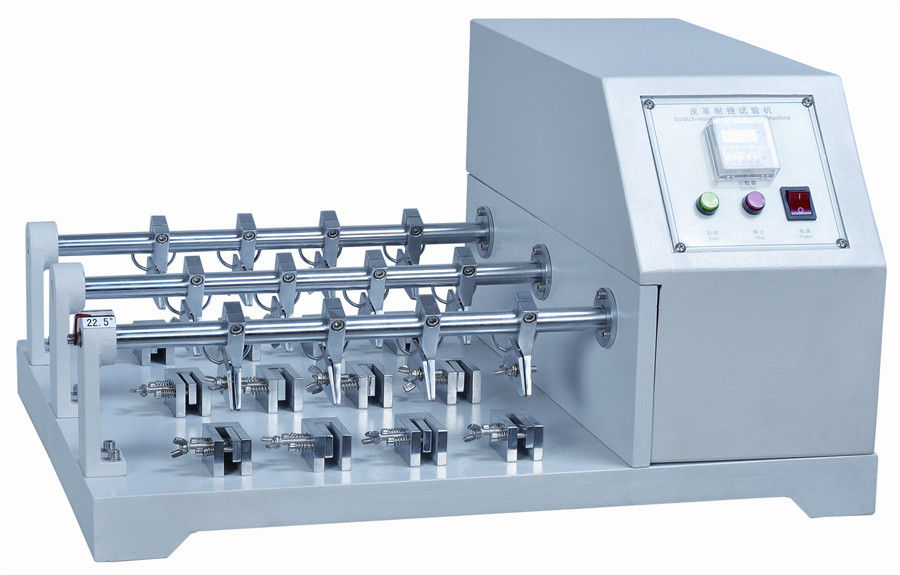

(Picture 1)
1. Counter 2. Power 3. Stop 4. Start 5. upper fixture 6.Lower fixture
Key Instruction:
1,Power:Power switch of machine;
2,Stop:Test stop;
3,Start:Press the key, the machine in test state;
4,Counter: used to set the test times and display the times.
Specification
|
Item |
Specification |
|
Fixture option |
(A)6 Groups (B)12 Groups |
|
Specimens |
70×45mm |
|
Bending Angle |
22.5° |
|
Bending speed |
100±5cpm |
|
Counter |
LED,0～999,999,Automatic shutdown |
|
Machine Size |
(L×W×H)785×460×320mm |
|
Power |
1∮,AC220V/50HZ |
|
Weight |
(A)69kg, (B)80kg |
Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
