High Accuracy Paper Carton Compression Testing Equipments With1 Precise Load Cells
Specifications

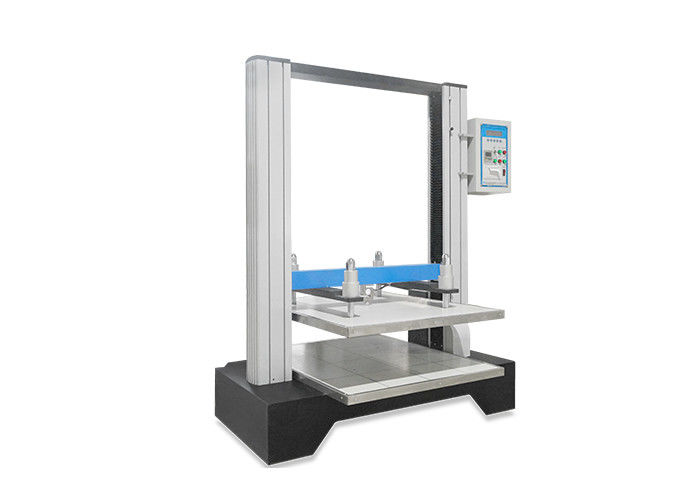

Paper Carton Compression Testing Instrument With 1 Precise Load Cells
1.High quality
2.2 years warranty
3.Up to TAPPI-T804,
4.Reasonable price
1.About the machine:
Paper Carton Compression Testing Instrument With 1 Precise Load Cells is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. It's equipped with 1 precise Load Cells for detection. The testing results are displayed by computer.
2.Design criteria:
TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4
3.Specifications:
Paper Carton Compression Testing Instrument With 4 Precise Load Cells
|
Model |
HD-A501-600 |
|
Unit (switchable) |
Kg, Lb, N |
|
Capacity (optional) |
1T |
|
Load Resolution |
1/100,000 |
|
Load Accuracy |
≤0.5% |
|
Test Space (L×W×H) |
600×800×800mm |
|
Speed of Compression |
10 ± 3 mm/min |
|
Report Items |
Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
|
Structure |
AC Frequency Conversion Motor ( Taiwan); |
|
Dimension (L×W×H) |
2370×1500×2100mm (can be custom made) |
|
Power |
1ø, 220v/ 50Hz |
|
Weight |
Approx. 850kg |
|
Safety Devices |
Overload protection, overvoltage protection & limited position protection device |
|
Standard |
TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
4.Features
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
Paper Carton Compression Testing Instrument With 4 Precise Load Cells can do test of compression, bending, pressure holding & fatigue.
With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
5.Company Services:
All Haida employees adhere to the " Quality comes from precision, quality creates the future " business philosophy, serve each client actively and conscientiously in order to satisfy Haida equipment brand consumers' needs.
The certification
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
