Digital Paper Testing Equipments , ASTM D5276 Electronic Package Droping Testing Machine

China Digital Paper Testing Equipments , ASTM D5276 Electronic Package Droping Testing Machine supplier
Digital Paper Testing Equipments , ASTM D5276 Electronic Package Droping Testing Machine supplier Digital Paper Testing Equipments , ASTM D5276 Electronic Package Droping Testing Machine supplier Digital Paper Testing Equipments , ASTM D5276 Electronic Package Droping Testing Machine supplier

Large Image :  Digital Paper Testing Equipments , ASTM D5276 Electronic Package Droping Testing Machine

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A520

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Display: LCD Friction Speed: 85
Power: Electronic Power: Electric
Port: ShenZhen

Digital Paper Testing Equipments , ASTM D5276 Electronic Package Droping Testing Machine



Specifications



ASTM D5276 Electronic Package Droping Testing Machine
1.Test the damage degree when the package is dropped
2.CE certificated
3.Reasonable price



1. Function



ASTM D5276 Electronic Package Droping Testing Machine is used to test the damage degree when the package is dropped, and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.



2. The comparison table of the package weight and dropping height:



ASTM D5276 Electronic Package Droping Testing Machine











Weight

Height

No less than

Less than

Free-drop

Lbs

Kg

Lbs

Kg

Inch

mm

0

0

21

10

30

760

21

10

41

19

24

610

41

19

61

28

18

460

61

28

100

45

12

310

100

45

150

68

8

200

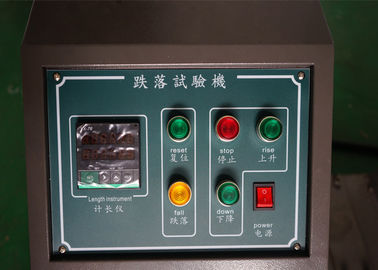

3.  Operation of control chamber



A. ASTM D5276 Electronic Package Droping Testing Machine adopts electromagnet control system to control the dropping swing

B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function

C. The testing height can be digital set up.

Test standards: GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276



4. The Technical parameters:



ASTM D5276 Electronic Package Droping Testing Machine

Dropping height

300mm-1500mm

Display method

digital display

Maximum weight of the package

60kg

Maximum size of the package

(L×W×H)1000×700×1000mm

Size of the dropping panel

(L×W)1700×1400mm

Size of the swing

290×240×8mm

Dropping deviation

±10mm

Deviation of dropping horizon

less than 1°

Outside size

(L×W×H)1700×1400×2215mm

Chamber size

(L×W×H)350×350×1100mm

Weight

550kg

Power

AC380V,50Hz

Transmitt approach

Electric transmission



5. Configuration



ASTM D5276 Electronic Package Droping Testing Machine

1. Outside material: advanced paint coat

2. Display: LCD display

3.  Power system:drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)

4.  Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control

5.  Safety device:upper and lower limitation device, automatic off-power device if electricity leakage occurs

6.  Accessories:electric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece



Digital Paper Testing Equipments , ASTM D5276 Electronic Package Droping Testing Machine



Digital Paper Testing Equipments , ASTM D5276 Electronic Package Droping Testing Machine
