LCD Paper Testing Equipments , ASTM-D2176 MIT Paper Folding Endurance Testing Machine

LCD Paper Testing Equipments , ASTM-D2176 MIT Paper Folding Endurance Testing Machine
LCD Paper Testing Equipments , ASTM-D2176 MIT Paper Folding Endurance Testing Machine
video play

Large Image :  LCD Paper Testing Equipments , ASTM-D2176 MIT Paper Folding Endurance Testing Machine

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A519-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Display: LCD Power: Electric
Port: ShenZhen
High Light:

paper tensile strength tester

,

paper testing machine

LCD Paper Testing Equipments , ASTM-D2176 MIT Paper Folding Endurance Testing Machine





Specifications:

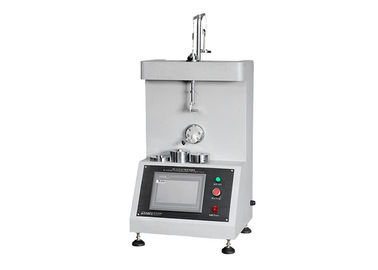

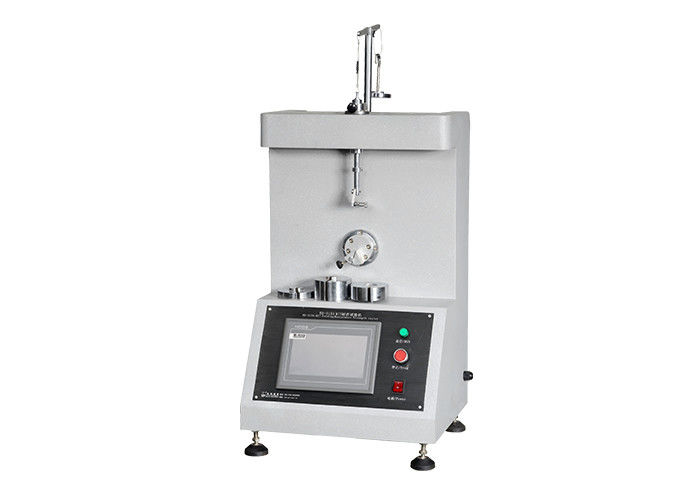

ASTM-D2176 MIT Paper Folding Endurance Testing Machine
1.calculate the test value automatically
2.flex machine
3.for determining the folding endu



Description:

It is used to test the folding resistance strength of paper and cardboard , the method is to fasten the two ends of specimen on the machine , make the specimen bear a certain extent stretching force by exerting influence on the lower fixture with the needed load, the lower fixture will bend the specimen in vertical condition from side to side , the bending angle is 135 degree, and the test value will be calculated automatically when the specimen is broken .



The Parameters :

Model HD-A519-1
Sample size 15 × (150 ~ 200) mm
Load method weight type, 4.91N, 9.81N, 14.72N
Control mode PLC control touch screen operation;
Counter 0 ~ 9999 times
Bending angle 135 ° ± 2 °
Folding speed 175 ± 10 times / min
Folding head width 19 ± 1mm
The arc radius of the fold 0.38 ± 0.02mm
Folding head gap max 1.0mm
Dimensions (L × W × H) 400 × 350 × 830mm
Power supply 1∮, AC220V, 2.6A
Weight (approx) about 40kg
Design criteria TAPPI-T423PM,ASTM-D2176,JIS-P8115,GB/T2679-5





Product Image

LCD Paper Testing Equipments , ASTM-D2176 MIT Paper Folding Endurance Testing Machine 0





About HAIDA
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

LCD Paper Testing Equipments , ASTM-D2176 MIT Paper Folding Endurance Testing Machine 1

LCD Paper Testing Equipments , ASTM-D2176 MIT Paper Folding Endurance Testing Machine 2

LCD Paper Testing Equipments , ASTM-D2176 MIT Paper Folding Endurance Testing Machine 3

LCD Paper Testing Equipments , ASTM-D2176 MIT Paper Folding Endurance Testing Machine 4
