Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cookware Testing Machine | Power: | Electric |
|---|---|---|---|
| Port: | ShenZhen | Power Supply: | 1 Phase, AC 220V, 50～60Hz |
| Gross Weight: | 210kg | ||
| High Light: | cookware testing equipment,cookware testing machines |
||

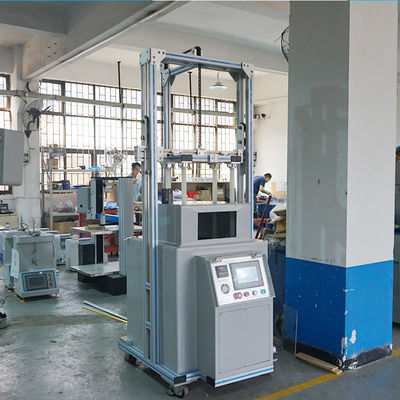

Corrosion Resistant Cookware Testing Machine For Cutlery / Knife / Fork
APPLICATIONS& TEST PURPOSE:
The machine is used to test the resistance corrosion strength of cutlery. The test specimens are intermittently immersed in a 1 % solution of sodium chloride (NaCl) at 60 ℃for 6 h. The number and size of any pits that have formed are measured visually with the aid of a microscope lens.
TEST STANDARD: ISO8442-1, ISO8442-2
STANDARD FEATURES:
| Water temperature maintain at 60± 2℃ | |
| 24 hours Timer to set and control the test period | |
| Cycle speed controllable from 2～5 cycles per minute | |
| Tank body made of PVC | |
| Ceramic heater was used for heat source | |
| Pneumatic cylinder was used to lift up and down the fixture rack | |
| PLC programmable controller, LCD touch screen interface | |
| Power | 1 phase, AC 220V, 50～60Hz |
| Machine Size | 1350mm*1050mm*2550mm |
| Gross Weight | 210KG |
The Main Technical Parameter:
| Model: | HD-M007 Cutlery Knife Corrosion Resistance Cookware Testing Machine |
| 1. A container made of thermal plastic with cover and specimen rack made of engineering plastic to raise and lower the specimen. | |
| 2. The testing solution is Sodium chloride for 1%. | |
| 3. Heater with precise thermo controller to maintain the water tank temperature within 60 °C ±2°C. | |
| 4. A preset timer for the test duration setting. | |
| 5. Speed of the test cycle is adjustable from 2~5 cycles per minute. | |
| 6. Immersion stroke is adjustable. | |
