Electrical Cardboard Testing Machine , Crease Stiffness Testing Equipment

China Electrical Cardboard Testing Machine , Crease Stiffness Testing Equipment supplier
Electrical Cardboard Testing Machine , Crease Stiffness Testing Equipment supplier Electrical Cardboard Testing Machine , Crease Stiffness Testing Equipment supplier Electrical Cardboard Testing Machine , Crease Stiffness Testing Equipment supplier

Large Image :  Electrical Cardboard Testing Machine , Crease Stiffness Testing Equipment

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-X005-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Power: Electric Port: ShenZhen
Power Supply: 220/240V @ 50HZ 110 V @ 60HZ (specify When Ordering Trouble) Weight: Weight

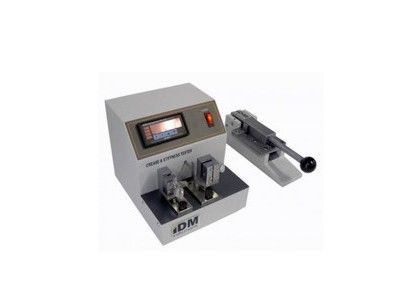

Electrical Cardboard Testing Machine , Crease Stiffness Testing Equipment



Production:

Australian imports crease stiffness testing machine simulation package production process conditions, measuring cardboard creases and bending stiffness, calculated according to the measurement results of the crease stiffness force ratio, which effectively determine the actual packaging process, carton packaging machine crease force required settings and ultimately to avoid bending and bonding is not strong cartons and so on. Such as: usually taken to deepen the depth of the indentation force methods to reduce creases, while reducing the tray outward tension; Also, select the best indentation width to avoid breakage of the crease and so on. All tested at a certain temperature, humidity, temperature. Crease recovery measurement method is: After a 90 ° bent cardboard reply 15 seconds, measure their resilience. Cardboard stiffness measurement is 50mm long pattern of force bent at 15 °.



Application:

Paper, cardboard, paper, ink and coating industry



Features:



Dual purpose cardboard stiffness, crease stiffness
Measuring range 0 ~ 1000gf
Digital Display </ DIV>
Cardboard stiffness bend angle 15 °, crease stiffness bending angle : 90 °
Cardboard stiffness Sample size 70 × 38m, crease stiffness Sample size: 38 × 36mm
Accuracy 0.5 gf (older model C0039 is 1 gf)
Test time 15S
Calibration weight 200g ((older model C0039 to 180 g)
Data interface RS232
Standard BS 6965, BS 3748 ISO2493: 1992 (older model C0039 only meet the first two criteria)
Power supply 220/240V @ 50HZ 110 V @ 60HZ (specify when ordering trouble)
Dimensions H 140mm * W275mm * 150mm
Weight 5KG



Our Company

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.



Electrical Cardboard Testing Machine , Crease Stiffness Testing EquipmentElectrical Cardboard Testing Machine , Crease Stiffness Testing Equipment





Our Services:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Pre-service

--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.

Middle service

--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.

After sale service

--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan



Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



Electrical Cardboard Testing Machine , Crease Stiffness Testing Equipment
