GB/T 4851 Rubber Testing Machine , Electric Tape Adhesion Rolling Wheel Tester

China GB/T 4851 Rubber Testing Machine , Electric Tape Adhesion Rolling Wheel Tester supplier

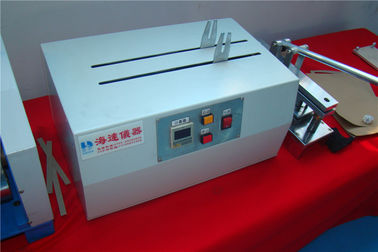

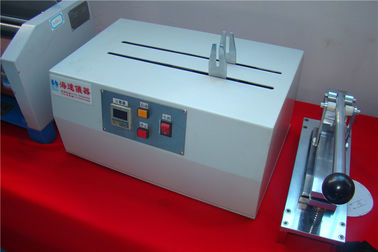

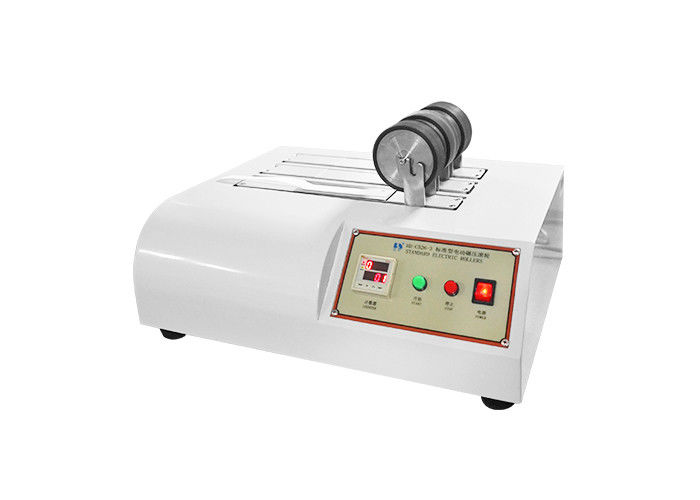

Large Image :  GB/T 4851 Rubber Testing Machine , Electric Tape Adhesion Rolling Wheel Tester

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-C526-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Power: Electric Port: ShenZhen



GB/T 4851 Rubber Testing Machine , Electric Tape Adhesion Rolling Wheel Tester





Specifications

GB/T 4851 Electric tape adhesion rolling wheel testing machine
1.High accuracy
2.Reasonable price with quality guarantee





Product description

GB/T 4851 Electric tape adhesion rolling wheel testing machine sticks the adhesive tape to the standard steel plate with a constant pressure and speed to prepare the sample for peeling test and retention test.



Design standard:

CNS-11888,PSTC-8


Main technical parameters

 Model

 HD-C526-2

Roller load

2kg

Roller sizer

84mm×45mm

Rubber Hardness

 Hs80±5

Rolling speed

 300mm/min

Roller number

 2 sets

Dimension (L×W×H)

 510×310×230 mm

Weight

24kg

Power

AC220V,50/60Hz, 2A
