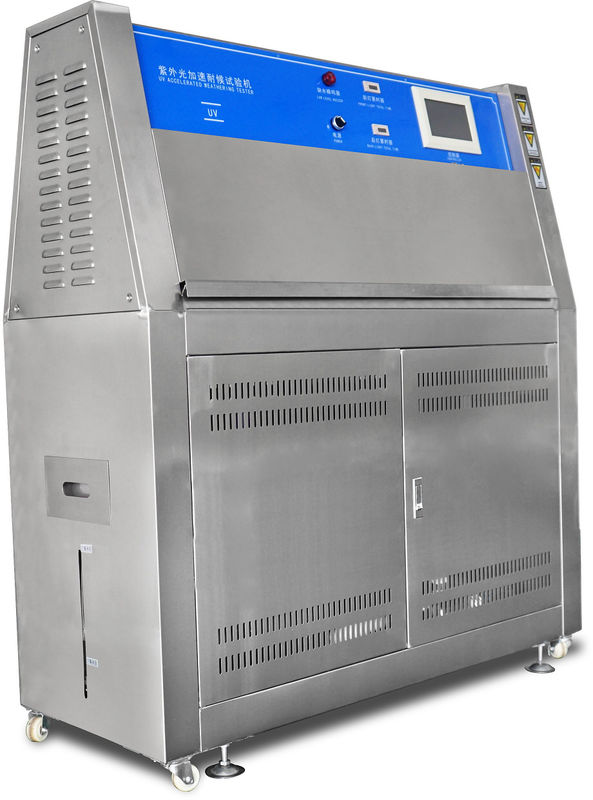

PID SSR Accelerated Weather Aging Test Machine Of SUS 304 Steel Plate

PID SSR  Accelerated Weather Aging Test Machine Of SUS 304 Steel Plate
PID SSR  Accelerated Weather Aging Test Machine Of SUS 304 Steel Plate

Large Image :  PID SSR Accelerated Weather Aging Test Machine Of SUS 304 Steel Plate

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E802

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Testing Time: 0~999H, Adjustable Temperature Control: PID SSR Control
Temperature Range: RT+10~70°C Controller: Korean TEMI 880 Programmable Controller
Outside Dimension: 500W×1300D×1460Hmm Studio Size: 400W×1140D×380Hmm
High Light:

accelerated aging chamber

,

aging test machine





PID SSR Accelerated Weather UV Aging Test Chamber Of SUS 304 Steel Plate



Product description



Accelerated Weather UV Testing Chamber is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.



Technical parameters:



Item Specification
Outside dimension 1300W×500D×1460Hmm
Chamber material SUS#304 stainless steel
Temperature range RT~70℃
Temperature fluctuation ±2℃
Temperature control PID SSR control,PID self - tuning temperature control mode
Humidity range: about 45%~70% R.H.
Controller Programmable controller, LCD touch screen
Control mode Balance temperature humidity control (BTHC)
Test cycle setting Exposure, condensation and water spray test cycle is programmable
Lamp power 40W/Piece
Distance from sample to lamp 50±2mm
Centre distance between the lamp 70mm
Irradiance 0.45~1.0W/m2 (optional)
UV lamps Imported Atlas UV-B: 275-320nm (8pcs, 1600h lifetime)
Standard Specimen Size 75×150mm (48pcs)
Testing time 0~999H, adjustable
Protection system

Overload short circuit protection

Over temperature protection

Water lacking protection

Earth leakage protection

Auto shut off protection



Application industry (not limited to the following):


1. Paint ink paint, resin, plastic
2. Printing and packaging, aluminum, adhesives
3. Motorcycle industry, cosmetics,
4. Metal, electronics, electroplating, medicine and so on.



Applications function:


1.Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
2.To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
3.Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.



Sell point:

  1. Shell liner are made of high quality stainless steel, the sample frame for the aluminum frame frame frame and extension of the spring composition
  2. Programmable controller, LCD touch screen
  3. Bilateral drainage system. To ensure that the box clean, not wet.
  4. About four lamps, the sample put on both sides of the box
  5. Intelligent protection system
  6. PID SSR Temperature control
  7. Exposure, condensation and water spray test cycle is programmable

Chamber Structure:



Accelerated Weather UV test machine



The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.

The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.



Control System:



Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.

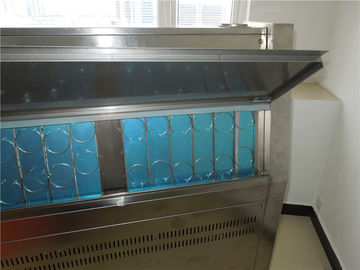

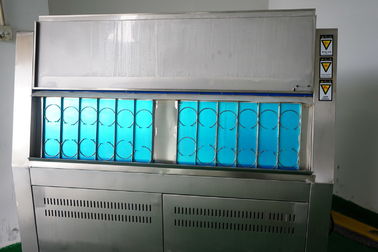

Test Specimen Mounting:



The standard test specimen holder accommodates 16 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.



Design criteria:



(1) ASTM D4587: Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings



(2) ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Fluorescent UV, Water Spray, and Condensation Method)



(3) ISO 4892-1: Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance



(4) ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps



(5) ASTM D4329: Standard Practice for Fluorescent UV Exposure of Plastics



(6) AATCC TM186: Weather Resistance: UV Light and Moisture Exposure



(7) ASTM D5208: Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics



(8) IEC 61345: UV Test for Photovaltalic (PV) Modules



Product structure:





Chamber structure.jpg



Specimen holder:



uv chamber





UV Accelerated Weathering Tester_pdf.pdf
