|Test Speed:||8 ~ 12 Times / Min||Stroke:||762mm (+ 50mm)|

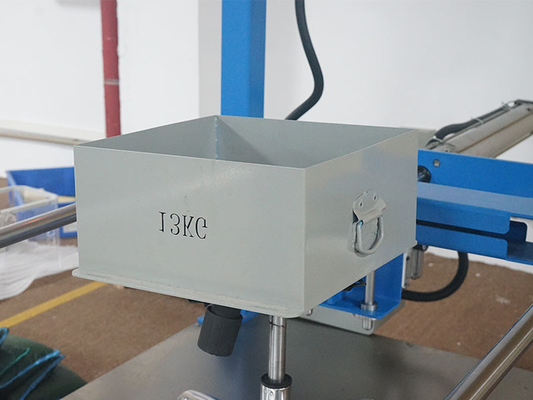

|Control Mode:||PLC And LCD Touch Screen Display||Accessories:||Overall Test Weight 113kg|

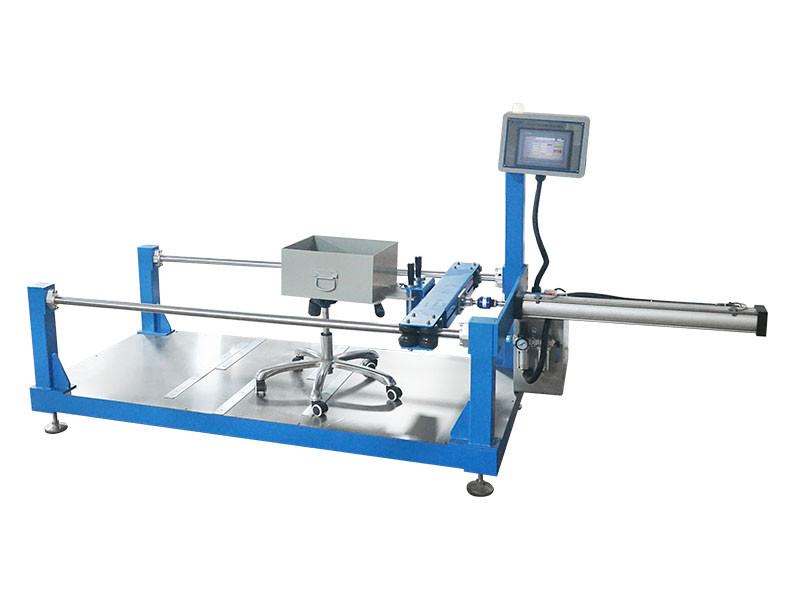

Integrate Furniture Testing Machines , Chair Castor Durability Furniture Testing Equipment
Test rig for chair castor durability testing on seating furniture according to BIFMA X5.1 and EN1335. The holding fixture is driven by motor; Chair move forward and back to assess the life durability by setting different parameters in the PLC interface including cycles, standard and so on.
|Test purpose||Durability test of casters with casters / chair frame|
|Standards||Bifma 5.1 section 17, Bifma 5.5 section 8, Bifma 5.9 section 11|
|Drive mode||motor and frequency conversion|
|Stroke||Standard 762mm or the longest:1000mm|
|Rate||8-12 weeks / min|
|Clamping tool up and down adjustment range||150mm-800mm|
|Control mode||PLC and large LCD display|
|Test point||the starting point can be adjusted by itself|
|Voltage||220V single phase|
A chair with casters is mounted on the moveable platform as shown in Figure 13. A 300-pound load is applied to the chair seat with the chair spindle fully extended. The base is attached to a mechanical device that exerts a horizontal push and pull of from 30 inches to 34 inches as illustrated in the figure. The base and casters are free to rotate and swivel. The machine operates continuously at a rate of 8 to 10 cycles per minute with a maximum speed of 50 feet per minute. One cycle consists of a forward and backward stroke of the mechanical device. Testing continues until the base or a caster suffers structural breakage, loss of serviceability, or a failure that would in any way cause personal injury to the occupant or bystanders, or, the desired acceptance level is met.
