Microcomputer Servo Control Carton Compression Tester , Paper Carton Compression Testing Equipment

China Microcomputer Servo Control Carton Compression Tester , Paper Carton Compression Testing Equipment supplier
Microcomputer Servo Control Carton Compression Tester , Paper Carton Compression Testing Equipment supplier Microcomputer Servo Control Carton Compression Tester , Paper Carton Compression Testing Equipment supplier Microcomputer Servo Control Carton Compression Tester , Paper Carton Compression Testing Equipment supplier

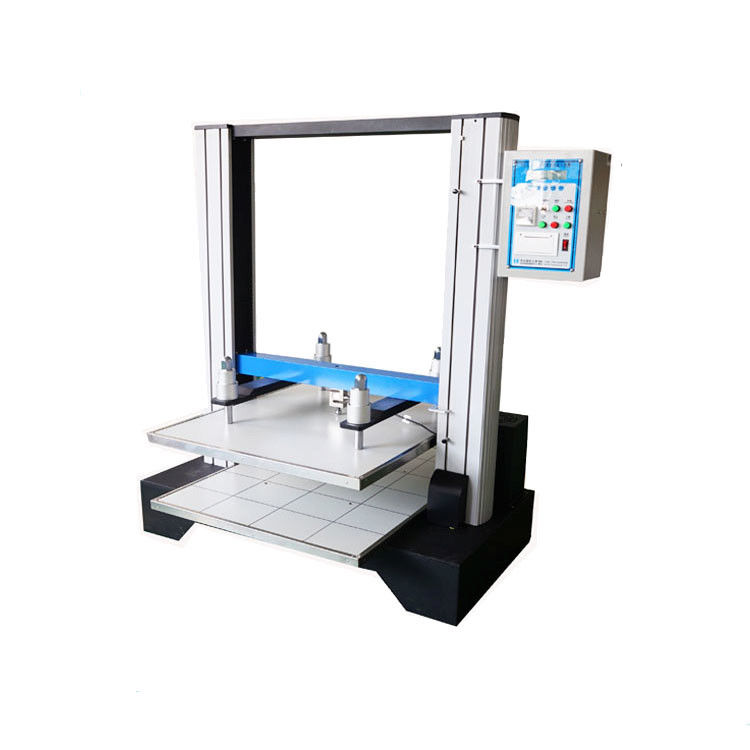

Large Image :  Microcomputer Servo Control Carton Compression Tester , Paper Carton Compression Testing Equipment

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A501S-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Unit (switchable): Kg, Lb, N Capacity (optional): 2T
Load Resolution: 1/100,000 Stroke (exclude The Grips): 400 Mm
Load Accuracy: ≤0.5% Test Space (L×W×H): 800×1000×1000mm

Microcomputer Servo Control Carton Compression Tester , Paper Carton Compression Testing Equipment





About the machine:


Microcomputer Servo Control Carton Compression Tester , Paper Carton Compression Testing Equipment is applicable in testing the compression endurance and stacking strength and press standard of corrugated carton.



Design criteria:



TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4



Specifications:



Model HD-A501-800
Unit (switchable) Kg, Lb, N
Capacity (optional) 2T
Load Resolution 1/100,000
Stroke (exclude the grips) 400 mm
Load Accuracy ≤0.5%
Test Space (L×W×H) 800×1000×1000mm
Speed of Compression 10 ± 3 mm/min
Operation Mode PC
Report Items

Serial number, Peak value, Average value,

Designated holding pressure value; all memorable

Structure AC Frequency Conversion Motor ( Taiwan);
Imported screw rod ;4 sensors; LED display
Dimension (L×W×H) 2370×1500×2100mm (can be custom made)
Power 1ø, 220v/ 50Hz
Weight Approx. 850kg
Safety Devices

Overload protection, overvoltage protection &

limited position protection device

Standard TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642



Features

  1. 2T Automatic Carton Compression Endurance & Stacking Strength Testing Instrument using a single-screen operation; do not need to switch the screen;
  2. 2T Automatic Carton Compression Endurance & Stacking Strength Testing Instrument with three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
  3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
  4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
  5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
  6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
  7. With self-return & auto-correction function;
  8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
  9. With the user-defined Test methods; with experimental data analysis function;
  10. 2T Automatic Carton Compression Endurance & Stacking Strength Testing Instrument can do test of compression, bending, pressure holding & fatigue.
  11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.



Microcomputer Servo Control Carton Compression Tester , Paper Carton Compression Testing Equipment



FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.



Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.



Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.



Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
