Micro-Printer Optical Measuring Instruments For Mold / Tool , High Precision

China Micro-Printer Optical Measuring Instruments For Mold / Tool , High Precision supplier
Micro-Printer Optical Measuring Instruments For Mold / Tool , High Precision supplier Micro-Printer Optical Measuring Instruments For Mold / Tool , High Precision supplier Micro-Printer Optical Measuring Instruments For Mold / Tool , High Precision supplier Micro-Printer Optical Measuring Instruments For Mold / Tool , High Precision supplier Micro-Printer Optical Measuring Instruments For Mold / Tool , High Precision supplier

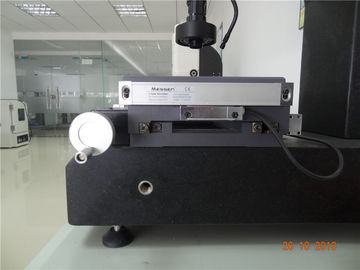

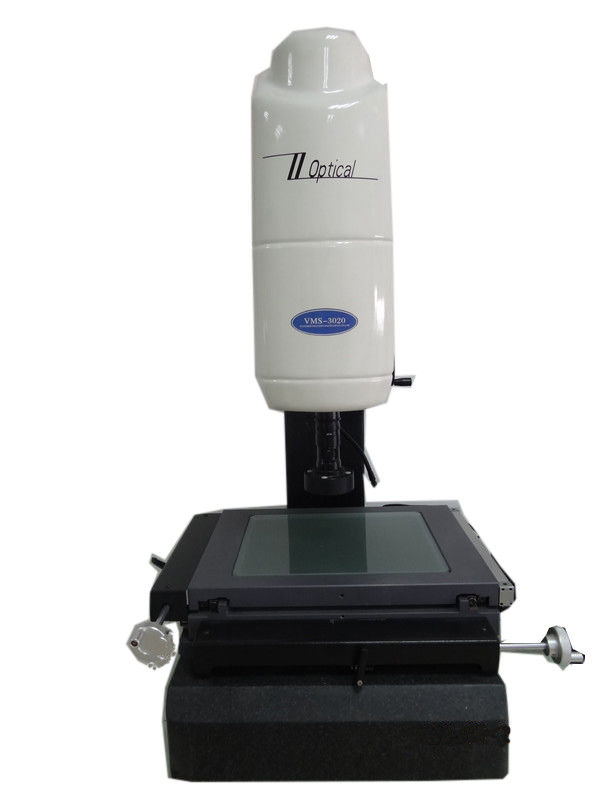

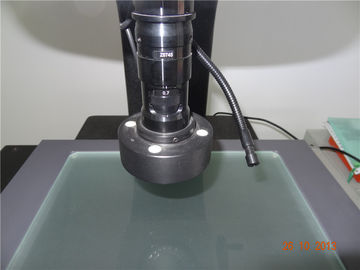

Large Image :  Micro-Printer Optical Measuring Instruments For Mold / Tool , High Precision

Product Details:

Place of Origin: China
Brand Name: Haida
Model Number: HD-HB12

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD13,223
Packaging Details: Strong wooden case package
Delivery Time: 15 days after received deposit
Payment Terms: Full payment before delivery
Supply Ability: 80 set per mouth
Contact Now
Detailed Product Description
Power: Electronic Power Supply: AC110V/60Hz;220V/50Hz
Product Name: Optical Measuring Devices Type: Micro-printer Optical Image Measuring Instrument
Application: Machinery, Molds, Tools, Instruments, Electronics, Light Industry, Measuring Room Rotation Range: 0~360°



Micro-Printer Optical Measuring Instruments For Mold / Tool , High Precision


Applicable industry:



Micro-printer optical image measuring instrument is widely used in machinery, molds, tools, instruments, electronics, light industry, measuring rooms and workshops are essential for a kind of test measurement equipment.



Equipment discription:



This Micro-printer optical image measuring instrument is a set of optical, mechanical, electrical, computer integration, high precision optical measuring instruments. Micro-printer optical image measuring instrument can efficiently detect a variety of complex shape the contours of the workpiece size and surface status, such as templates, punching pieces, cams, threads, gears, form cutter and other tools, cutting tools and parts.



Technical parameter:



Model

HD-HB12    Coordinate Projector

    HD-HB16   Coordinate Projector

Projection screen

 Φ330mm

Φ425mm

Rotation range:0~360° ;  Rotation Digital Resolution: 1′or 0.01°

Mirror matter

Magnification

10 X ( Necessary )

20X
(Option)

50X
( Option )

100X ( Option )

10X
( Necessary )

20X
( Option )

50X
( Option )

100X ( Option )

Working distance:

 77.7

44.3

38.4

25.3

103.9

95.1

65.7

35.0

Field of view in object :

Φ30

Φ15

  Φ6

Φ3

Φ40

Φ20

Φ8

Φ4

Table

Size

 408 X 126

408 × 126

Measuring range

   X=200 , Z=100 ;  Y=75( Focusing )

X=200 , Z=150 ; Y=75( Focusing )



X, Z-axis digital display resolution: 0.0005mm, coordinate indication error ≤ (3 + L/200) μm

Data processing system

DP300 multi-function data processing system, all the Chinese showed they can do more sampling, coordinate rotation, point. Line. Circle. Distance. Angle measurement

Lighting

Transmission 24V 150W, reflecting 24V 150W (with halogen lamp)

Power

110V/220V(AC),50Hz/60Hz ,Total power 400W

Size

(L×W×H) 1147× 556 × 964

(L×W×H)1360X580X1170

Weight

200Kg

200Kg

Options

Micro-printer, optical Edge Detector, M2D software; detailed description see Annex projector.
