Steel Plate UV Aging Test Chamber , Lamp Fabric UV Accelerated Weathering Testing Machine

China Steel Plate UV Aging Test Chamber , Lamp Fabric UV Accelerated Weathering Testing Machine supplier
Steel Plate UV Aging Test Chamber , Lamp Fabric UV Accelerated Weathering Testing Machine supplier Steel Plate UV Aging Test Chamber , Lamp Fabric UV Accelerated Weathering Testing Machine supplier Steel Plate UV Aging Test Chamber , Lamp Fabric UV Accelerated Weathering Testing Machine supplier Steel Plate UV Aging Test Chamber , Lamp Fabric UV Accelerated Weathering Testing Machine supplier

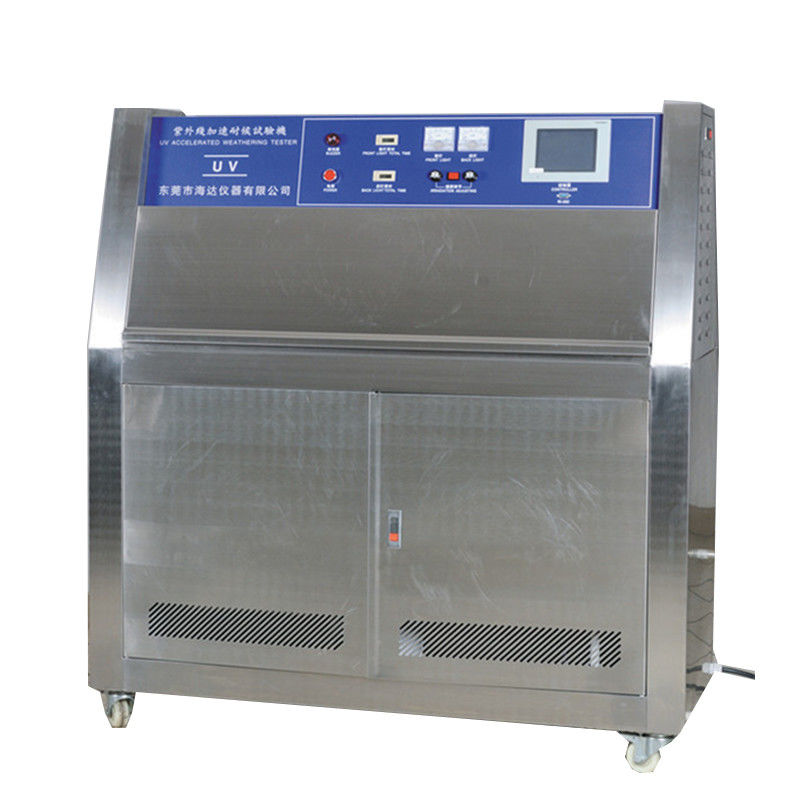

Large Image :  Steel Plate UV Aging Test Chamber , Lamp Fabric UV Accelerated Weathering Testing Machine

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-703

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Material: SUS 304 Steel Studio Size: 400W×1140D×390Hmm
Outside Dimension: 500W×1300D×1360Hmm Materials: Inside And Outside SUS#304 Stainless Steel
Temperature Control: PID SSR Control Controller: Korean TEMI 880 Programmable Controller

Steel Plate UV Aging Test Chamber , Lamp Fabric UV Accelerated Weathering Testing Machine

1. Product description
Steel Plate Lamp Fabric UV Accelerated Weathering Testing Machine is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and Steel Plate Lamp Fabric UV Accelerated Weathering Testing Machine can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.
2. Technical parameters:

Steel Plate Lamp Fabric UV Accelerated Weathering Testing Machine

Studio Size400W×1140D×390Hmm
Outside dimension500W×1300D×1360Hmm
MaterialsInside and Outside SUS#304 stainless steel
Temperature rangeRT+10~70°C
Temperature uniformity±2°C
Temperature fluctuation±0.5°C
Temperature controlPID SSR control
Humidity range:≥90%RH
ControllerKorean TEMI 880 programmable controller
Control modeBalance temperature humidity control (BTHC)
Test cycle settingIllumination, condensation and water spray test cycle is programmable
Lamp power40W/Piece
Distance from sample to lamp50±2mm (adjustable)
Centre distance between the lamp70mm
Irradiance1.0W/cm2
Wavelength ultraviolet lightUV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h lifetime)
Effective irradiation areas640×1140mm
Irradiation black panel temperature50°C~70°C
Standard Specimen Size75×150mm or 75×3000mm (special specitications
to be described in the contact)
Required water depth for water channel25mm, automatically control
Testing time0~999H, adjustable
Power220V/50Hz /±10% 5KW
Protection systemOverload short circuit protection, over temperature
protection, water lackin


3. Chamber Structure:
Accelerated Weather UV test machine
The inner bladder of the Steel Plate Lamp Fabric UV Accelerated Weathering Testing Machine is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.

4. Control System:
Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.


5. Test Specimen Mounting:
Accelerated Weather UV test machine
The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.


6. Design criteria:
Accelerated Weather UV test machine
(1) ASTM D4587: Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings
(2) ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Fluorescent UV, Water Spray, and Condensation Method)
(3) ISO 4892-1: Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance
(4) ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps
(5) ASTM D4329: Standard Practice for Fluorescent UV Exposure of Plastics
(6) AATCC TM186: Weather Resistance: UV Light and Moisture Exposure
(7) ASTM D5208: Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics
(8) IEC 61345: UV Test for Photovaltalic (PV) Modules


7. Poduct image:
Accelerated Weather UV test machine

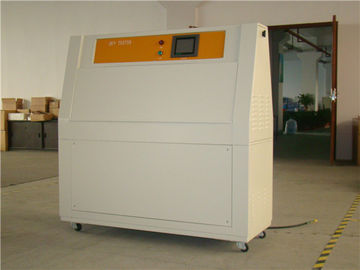

Product structure:
Steel Plate UV Aging Test Chamber , Lamp Fabric UV Accelerated Weathering Testing Machine
Specimen holder:
Steel Plate UV Aging Test Chamber , Lamp Fabric UV Accelerated Weathering Testing Machine
Inner structure:
Steel Plate UV Aging Test Chamber , Lamp Fabric UV Accelerated Weathering Testing Machine
