|Box Material:||Stainless Steel SUS304#||Power:||Electronic|
|Product Name:||Xenon Test Chamber||Rainfall Time:||1~9999min, Adjustable|
Organic / Rubber / Plastic / Stainless Steel Xenon Test Chamber With High Temperature Alarm
Organic / Rubber / Plastic Stainless Steel XenonTestingChamber is to test the product undergone illumination / rain / condensation / temperature / humidity / wind and any other climatic changes. Organic / Rubber / Plastic Stainless Steel Xenon Testing Chamber mainly for the test of non-ferrous / organic / rubber / plastic and building materials. Organic / Rubber / Plastic Stainless Steel Xenon Testing Chamber can provide data for user to evaluate the products' properties and performance
in order to improve the product qualities.
Aluminum, metal bathroom, wood flooring
Furniture glasses, steel hardware products
Stationery / sporting goods, car
Motorcycles, bicycles, spare parts
3C machine, home appliances, lighting lighting
Quality inspection agencies, research institutions, oil ink
Packaging, water-based ink,plastic,rubber,
Shoes, leather, luggage, textile
Application standards(inculding but not limited to... ):
ASTM,ISO,DIN,SAE,BS,ANSI,AATCC and other test standards.
All Hai da employee sad here to the" Quality comes from precision,quality creates the future"business philosophy,serve each client actively and conscientiously inorder to satisfy Hai da equipment brand consumers' needs.
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
|Studio size (mm)||750*500*600mm|
|External size (mm)||1350X1200X1750 (length × depth × height)|
|Temperature range||normal temperature ~80℃|
|Humidity range||light cycle 45% ~ 95% R.H, dark cycle 30% ~ 95% adjustable|
|Temperature of the test blackboard||adjustable from 45℃ to 100℃ (deviation ±3℃)|
|Glass filter||borosilicate glass|
|Xenon light source||imported air-cooled xenon arc source|
|Xenon lamp power||2.5kw, xenon lamp power is 2.5kw ×3 = 5.4kw, life is 1200 hours|
|Rainfall time||1 ~ 9999 minutes, continuous rainfall adjustable|
|Rainfall cycle||1 ~ 240 minutes, interval (break) rainfall adjustable|
|Spray nozzle aperture||Ф 0.8 mm (return hose ultra-fine filters to prevent the nozzle blocking)|
|Spraying period (spraying time/no spraying time)||18min/102min or 12min/48min(spraying time/no spraying time)|
|Water spraying pressure||0.12 ~ 0.15Mpa|
|Water pressure||0.12 ~ 0.15kpa|
|Sample rack||the size of sample tray is 75×300mm|
|The continuous adjustable time of illumination cycle||1 ~ 999 hours|
|Xenon lamp spectral wavelength||290nm ~ 800nm adjustable|
|Irradiance range||500W ~ 1200W/㎡ adjustable.|
|Distance from arc center to sample||250 ~ 300mm|
|Effective exposure area||6400C㎡|
Refrigeration system and compressor:
1.Refrigerating compressor: imported French "taikang" fully enclosed refrigerating unit.
2.Cooling method: air cooling
3.Refrigerant: environmental friendly refrigerant
4.Main refrigeration accessories: Japan "arugong" solenoid valve;American "Emerson" drying filters, etc.
5.Excellent quality of domestic and foreign well-known brands of air-cooled condenser and fin multi - section evaporator.

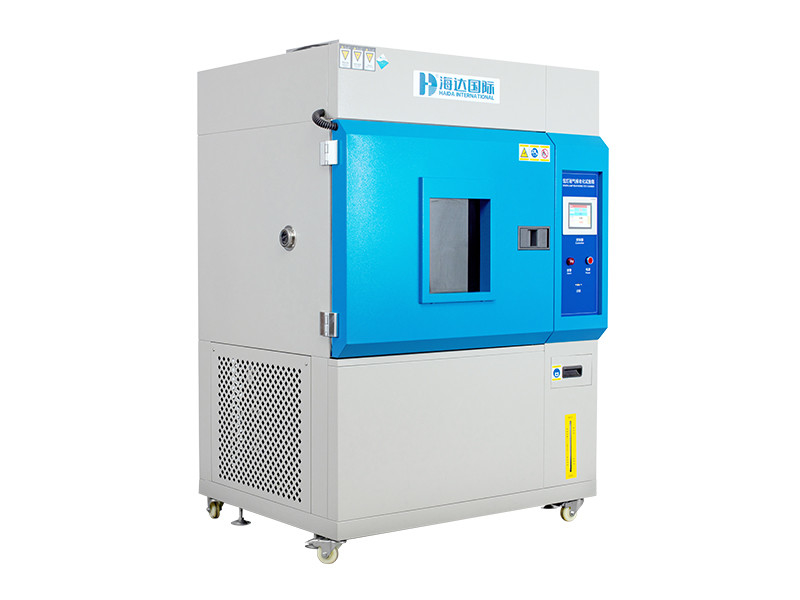

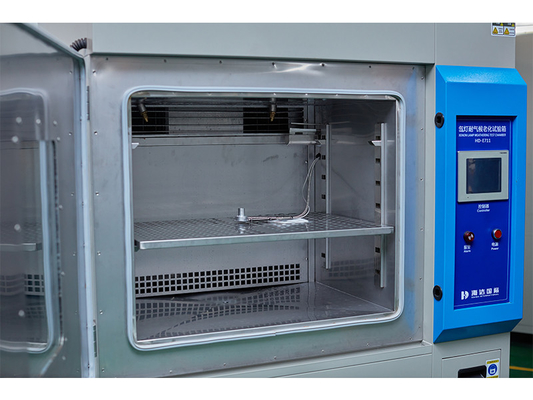

The images of this machine
The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear,
leather products, environment, toys, baby products, hardware, electronic products, plastic products,
rubber products and other industries, and are applicable to all scientific research units,
quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN,
DIN, BS and other domestic and international standards.
