1T Material Electric Tensile Strength Testing Machine With Panasonic Servo Motor

China 1T Material Electric Tensile Strength Testing Machine With Panasonic Servo Motor supplier
1T Material Electric Tensile Strength Testing Machine With Panasonic Servo Motor supplier 1T Material Electric Tensile Strength Testing Machine With Panasonic Servo Motor supplier 1T Material Electric Tensile Strength Testing Machine With Panasonic Servo Motor supplier 1T Material Electric Tensile Strength Testing Machine With Panasonic Servo Motor supplier 1T Material Electric Tensile Strength Testing Machine With Panasonic Servo Motor supplier

Large Image :  1T Material Electric Tensile Strength Testing Machine With Panasonic Servo Motor

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B615S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Accuracy: ±0.5% Capacity: 10T (100KN)
Elongation Accuracy: 0.001mm Max. Stroke: 1000mm (including Fixture)
Motor: Panasonic Servo Motor Power: Electric
Sensor: Celtron Load Cell Type: Tensile Tester
Port: ShenZhen(customizable)



            1t Material Electric Tensile Strength Testing Machine With Panasonic Servo Motor


undefined Tensile Testing Machine Video



Download PDF about the Standard

EN ISO 527-3 - Tensile for Plastic -HD-B604B-S.pdf...



ASTM D412- Tensile for Rubber - HD-B617-S, HD-B604...


Optional Accessories

  • Plastic & Rubber Wedge Clamp
  • Metal Wedge Clamp
  • Bend Clamp
  • Compression Plate

Load cell

  • 500kg load cell
  • Calibration Certificate
  • Calibration Device

Start-Up
Start-up and training
Start-up, training and instrument calibration for the above equipments

Ø Start-up of the system by a qualified service technician

Ø Training session on the operation and maintenance of the system

Ø Calibration with certificate


Shipment :
FOB SHENZHEN or GUANGZHOU(Can be customized)

Warranty:
One-year warranty on all parts, labor is not covered. Warranty coverage include shipment


Main Technical Parameter:

Item Description
Max. Force 10T (100KN)
Load cell Germany brand load cell for high accuracy
Control system PC with windows 7 system
Motor Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Stoke 1100mm including fixture
Load cell Resolution 1/250,000
Load Precision within ±0.5%
Test speed 0.01~300mm/min (adjustable)
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features

E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat


Standard:
Inculding but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE...ETC

Product Features:
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. tensile testing machine can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.

Product Description:
100KN Panasonic Servo Motor Material Tensile Testing Machines is a universal testing machine can do tensile strength test,3 point bending test, bending test,peel strength test for universal materials with different fixtures.this type tensile testing machine be equipped with 100KN panasonic servo motor ,DC variable speed drive system, high-precision mechanical ball screw rod.Precision sensing system and strong maximum test bearing capacity to make test results more accurate, easier to operate.


Tensile Testing Machines overview:
1T Panasonic Servo Motor Material Tensile Testing Machines is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, belt,steel products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.


1T Panasonic Servo Motor Material Tensile Testing Machines is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.

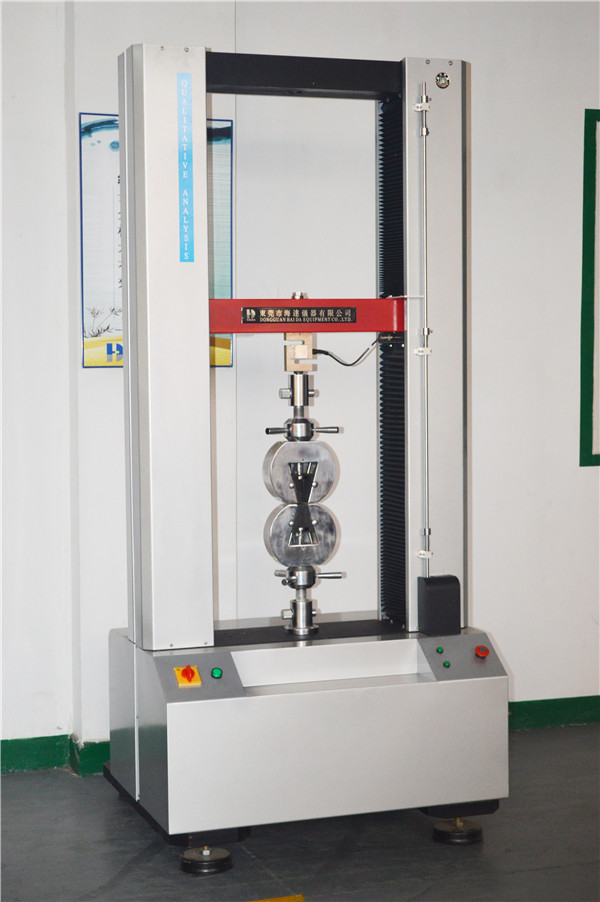

Image Of 100KN Panasonic Servo Motor Material Tensile Testing Machines:

                                                                1T Material Electric Tensile Strength Testing Machine With Panasonic Servo Motor


(univervrsal testing machine)Related products:
HD-609/604 2000 kg (20KN)Max. Force / for Tape, rubber, plastic, textile, waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
HD-611 10T (100KN) Max. Force / for waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
HD-615 5000 kg (50KN) Max. Force / for textile, waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
HD-B616 20KN-1000KN (Hydraulic) load range / for waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
