Product Details:
Payment & Shipping Terms:
|
Accuracy: | ±0.5% | Elongation Accuracy: | 0.001mm |
---|---|---|---|
Max. Stroke: | 1000mm Including Fixture | Motor: | Panasonic Servo Motor|30T Panasonic Servo Motor |
Power: | Electronic | Sensor: | Celtron Load Cell |
Type: | Tensile Tester | Port: | ShenZhen |
High Light: | universal tensile testing machine,electronic universal testing machine |
Material Bending / Compression Tensile Testing Machines With High Precise Ball Screw
Application:
Rubber:
Main Parameter:
Item | Description |
Max. Force | 5000 kg (50KN) |
Load cell | Germany brand load cell for high accuracy |
Control system | PC with windows 7 system |
Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Stoke | 1000mm including fixture |
Load cell Resolution | 1/250,000 |
Load Precision | within ±0.5% |
Test speed | 0.1~300mm/min (adjustable) |
Software | TM 2101 |
Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Detection Function:
Benefit Features:
Application Industry:
1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,wood
6. Food, chemical, building materials, medical, aerospace
7. Others...
Theory:
When using Material & Finished Product Compression Tensile Testing Machines place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen.And the strength value will be displayed automatically on the computer.
Features:
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily
4. The pattern of Test reports can be selfdesignated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. High quality, accurate and reliable models with reasonable price.

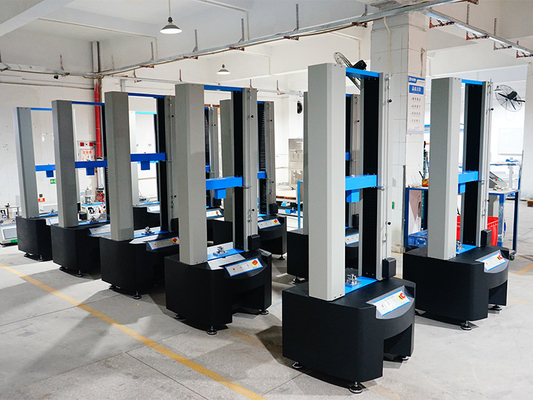

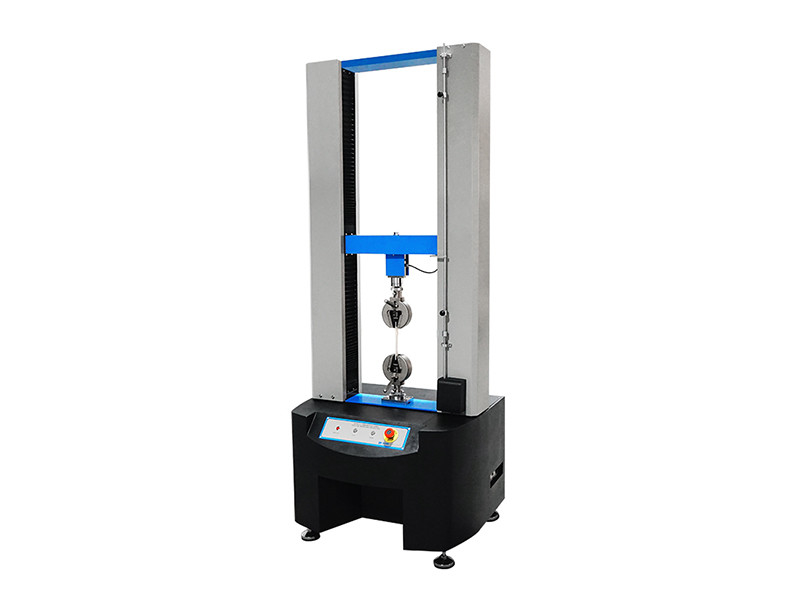

Compression Tensile Testing Machines View:
Universal Testing Machine TM2101 Control System Data Display:
1. Max. force, 2. speed, 3. sample information, 4. strength(Kpa, Mpa, N/mm, N/mm2) etc…
