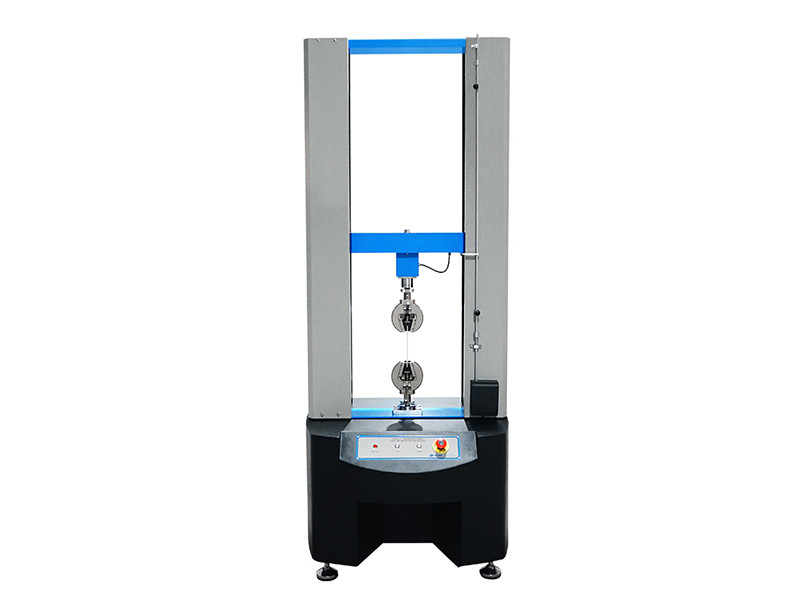

Big Capacity Double Column Servo Motor Microcomputer Tensile Testing Machines

China Big Capacity Double Column Servo Motor Microcomputer Tensile Testing Machines supplier
Big Capacity Double Column Servo Motor Microcomputer Tensile Testing Machines supplier Big Capacity Double Column Servo Motor Microcomputer Tensile Testing Machines supplier Big Capacity Double Column Servo Motor Microcomputer Tensile Testing Machines supplier Big Capacity Double Column Servo Motor Microcomputer Tensile Testing Machines supplier Big Capacity Double Column Servo Motor Microcomputer Tensile Testing Machines supplier

Large Image :  Big Capacity Double Column Servo Motor Microcomputer Tensile Testing Machines

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B615-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Display Device: LCD Or PC Accuracy: ±0.25%
Capacity: 1000,2000,3000,5000kg Max. Stroke: 1100mm (including Fixture)
Motor: Panasonic Servo Motor Resolution: 1/250,000
Sensor: Celtron Load Cell|load Cell Type: Tensile Tester

Big Capacity Double Column Servo Motor Microcomputer Tensile Testing Machines



1. Product Description:

This material testing machine is used to test the physical properties of the raw material, finished products, semi-finished products. This tensile testing machine can do various of test such as tensile test, compression test, bending test to get the result with elongation, Internal stress, strain and testing data. Tension tester can match different fixture, accessories, two point stretcher and load cell, It can be connected by computer to operate the machine.



Selling point:

  1. TM 2101 intelligent automatic detection of the operating system, (can adapt to all current PC)
  2. High-tech, low noise
  3. Humanized industrial design, easy to place and transport
  4. The world famous brand core precision components
  5. Security protection system
  6. Valid test trip length (modifiable)

This tensile strength tester can analyze all the test results, such as: elongation, stress, strain and damage value, average, etc. The Tensile strength tester can provide the all testing process according to the type of the sample or the different demands. It can analysis the physical properties of the samples, such as the compressive strength, flexural, fatigue, peel, strength, bending, and so on This machine has other accessories,

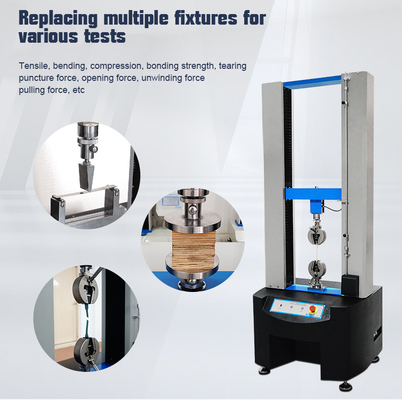

Optional Accessories:

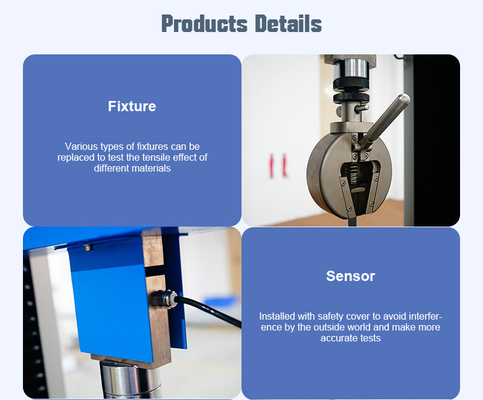

1. Clamps

  • UP Foam Tensile Clamp (1000kg)
  • Compression Plate

2. Load cell

  • 500kg load cell
  • Calibration Certificate
  • Calibration Device

Detection function:

  1. Universal test
  2. Tensile strength test
  3. Bending strength test
  4. sheatring test
  5. Tear fatigue test
  6. 3 points bending test
  7. Compressive test
  8. Other functional testing ...

Application Industry:
1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others...



2. Design Standard
Inculding but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE...etc.


3. Main Parameter

Item Description
Max. Force 5000 kg (50KN)
Load cell Germany brand load cell for high accuracy
Control system PC with windows 7 system
Motor Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Stoke 1100mm including fixture
Load cell Resolution 1/250,000
Load Precision within ±0.5%
Test speed 0.01~300mm/min (adjustable)
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…

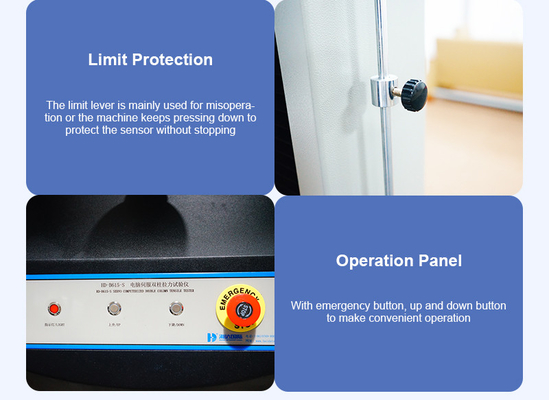

Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat



4. Theory
Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen.And the strength value will be displayed automatically on the computer.

5. Features

1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily
4. The pattern of Test reports can be selfdesignated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. High quality, accurate and reliable models with reasonable price.

Big Capacity Double Column Servo Motor Microcomputer Tensile Testing Machines

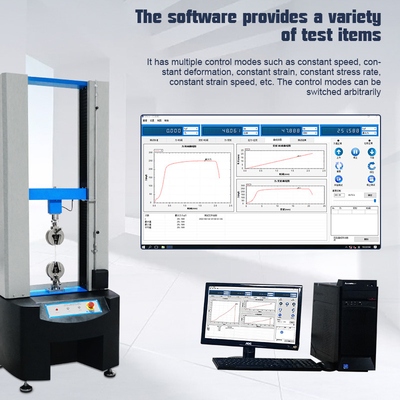

6. Software
The TM2101 measurement and control system is designed purposely for microcomputer controlled electronic universal testing machine, microcomputer controlled universal hydraulic testing machine and microcomputer controlled compress testing machine, used for tension, compress, bend, shear, tearing and peel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force, maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multisensor support, image interface, flexible data process and powerful system function.



Universal testing machine TM2101 control system data display:

1. Max. force, 2. speed, 3. sample information, 4. strength(Kpa, Mpa, N/mm, N/mm2) etc…

1. Load- elongation, 2. Elongation-time, 3. Time-elongation, 4. Stress-strain.

Big Capacity Double Column Servo Motor Microcomputer Tensile Testing Machines





Our Services:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.

1. Pre-service

--24 Hours online service for your consult.

--Help choose right model,and a series of service,person,advise.

2. Middle service:

--Give you best offer

--Provide discount for many sets order

--Do customer's request:

--Choose payment term you convienent.

--Promptly production and delivery,inform you in time.

--Can provide invoice value as you like to decrease your tax.

3. After sale service :

--1 year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Free change for some parts

--Remote control technical consult

--Free installation DVD

--Maintenance plan

4,Commitment:

We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

5,Good Packaging:

Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
