Electronic Abrasion Rubber Testing Machine For Elastic Material Abrasion Resistance Test

China Electronic Abrasion Rubber Testing Machine For Elastic Material Abrasion Resistance Test supplier
Electronic Abrasion Rubber Testing Machine For Elastic Material Abrasion Resistance Test supplier Electronic Abrasion Rubber Testing Machine For Elastic Material Abrasion Resistance Test supplier

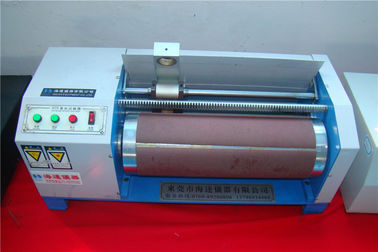

Large Image :  Electronic Abrasion Rubber Testing Machine For Elastic Material Abrasion Resistance Test

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-P307

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Power: Electronic Weight (approx.): 50kg
Abrasion Speed: 0.32m/sec



Electronic Abrasion Rubber Testing Machine For Elastic Material Abrasion Resistance Test



Product description:

Electronic 2.5N ±0.2N / 5 N ±0.2N DIN Abrasion Rubber Testing Machine is used to test abrasion resistance of elastic material, rubber, tire, conveyor belt, solo, soft synthetic leather and other materials.



Main technical parameters



Sample load 2.5N ±0.2N / 5 N ±0.2N
Roller wheel diameter Φ(150 ±0.2)mm
Roller wheel length 460mm
Roller wheel revolving speed 40±1r.p.m
Abrasion stroke 40m equal to roller wheel turns number 84
Abrasion speed 0.32m/sec
Dip angle 3°(included angle between sample clamp holder and vertical plane of roller wheel)
Volume (approx.) 70cm ×30cm ×30cm
Weight (approx.) 50kg
Power 1∮ AC 220V 3A(specified)



Principle



Electronic 2.5N ±0.2N / 5 N ±0.2N DIN Abrasion Rubber Testing Machine Under specified touched pressure and given area, when the sample and the abrasive paper get an angle,

test the abrasion resistance of the sample on the abrasive paper with certain rank.

Wrap the abrasive paper on the roller. The sample adpress on the roller with abrasive paper to make the sample

move horizontally along with the roller. Abrasion is produced on the one end of the cylinder sample. Measure the

loss  value of the sample and calculate the abrasion resistance according to sample density.



Design criteria


Electronic 2.5N ±0.2N / 5 N ±0.2N DIN Abrasion Rubber Testing Machine reference standard: DIN-53516﹑ISO/DIS-4649﹑BS903 PART9 and GB-9867.

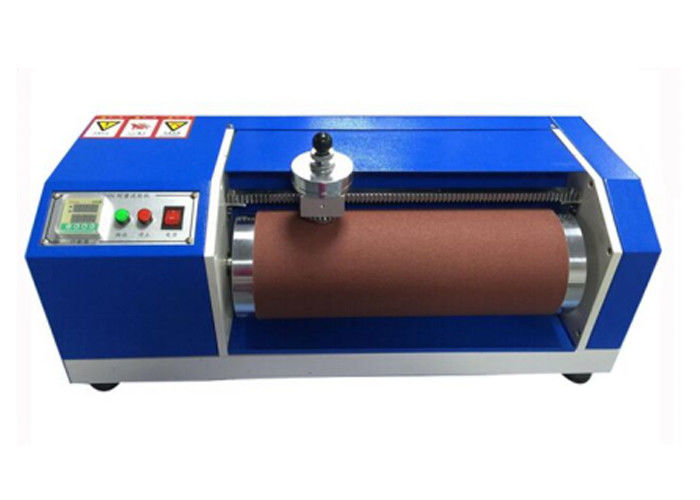

Electronic Abrasion Rubber Testing Machine For Elastic Material Abrasion Resistance Test
