UV Accelerated Weathering Tester , PID SSR Control Weathering Testing Machine

China UV Accelerated Weathering Tester , PID SSR Control Weathering Testing Machine supplier
UV Accelerated Weathering Tester , PID SSR Control Weathering Testing Machine supplier UV Accelerated Weathering Tester , PID SSR Control Weathering Testing Machine supplier UV Accelerated Weathering Tester , PID SSR Control Weathering Testing Machine supplier UV Accelerated Weathering Tester , PID SSR Control Weathering Testing Machine supplier

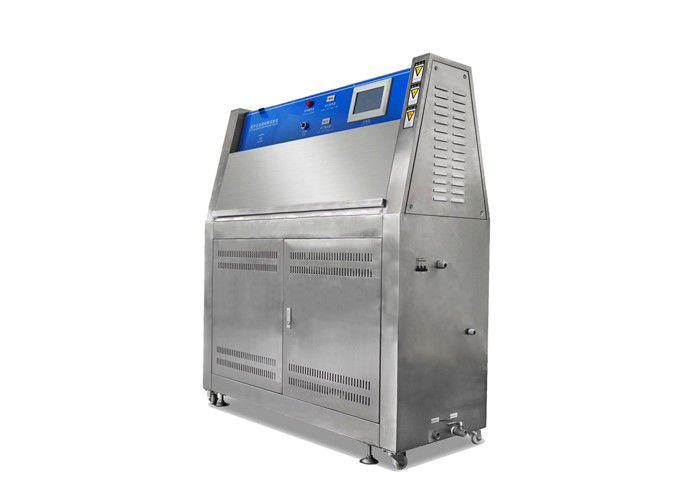

Large Image :  UV Accelerated Weathering Tester , PID SSR Control Weathering Testing Machine

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E802

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Box Material: Stainless Steel SUS304# Power: Korean TEMI 880 Programmable Controller
Product Name: Accelerated Weathering Tester Rainfall Time: Adjustable
Port: Balance Temperature Humidity Control (BTHC) Temperature Control: PID SSR Control
Controller: Korean TEMI 880 Programmable Controller



UV Accelerated Weathering Tester , PID SSR Control Weathering Testing Machine





1. Product description



PID SSR Control UV Accelerated Weathering Testing Machine is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.



2. Technical parameters:

 PID SSR Control UV Accelerated Weathering Testing Machine

Studio Size

400W×1140D×390Hmm

Outside dimension

500W×1300D×1360Hmm

Materials

Inside and Outside SUS#304 stainless steel

Temperature range

RT+10~70°C

Temperature uniformity

±2°C

Temperature fluctuation

±0.5°C

Temperature control

PID SSR control

Humidity range:

 ≥90%RH

Controller

Korean TEMI 880 programmable controller

Control mode

Balance temperature humidity control (BTHC)

Test cycle setting

Illumination, condensation and water spray test cycle is programmable

Lamp power

40W/Piece

Distance from sample to lamp

50±2mm (adjustable)

Centre distance between the lamp

70mm

Irradiance

1.0W/cm2

Wavelength ultraviolet light

UV-A: 315-400nm;  UV-B: 280-315nm (8pcs, 1600h lifetime)

Effective irradiation areas

640×1140mm

Irradiation black panel temperature

50°C~70°C

Standard Specimen Size

75×150mm or 75×3000mm  (special specitications

to be described in the contact)

Required water depth for water channel

25mm, automatically control

Testing time

0~999H, adjustable

Power

220V/50Hz /±10% 5KW

Protection system

Overload short circuit protection, over temperature

protection, water lackin



3. Chamber Structure:

PID SSR Control UV Accelerated Weathering Testing Machine

The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.

The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.



4. Control System:

Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.



5. Test Specimen Mounting:

 PID SSR Control UV Accelerated Weathering Testing Machine

The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, PID SSR Control UV Accelerated Weathering Testing Machine is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.



6. Design criteria:

 PID SSR Control UV Accelerated Weathering Testing Machine

 (1) ASTM D4587: Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings

(2) ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Fluorescent UV, Water Spray, and Condensation Method)

(3) ISO 4892-1: Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance

(4) ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps

(5) ASTM D4329: Standard Practice for Fluorescent UV Exposure of Plastics

(6) AATCC TM186: Weather Resistance: UV Light and Moisture Exposure

(7) ASTM D5208: Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics

(8) IEC 61345: UV Test for Photovaltalic (PV) Modules



7. Poduct image:



Product structure:



UV Accelerated Weathering Tester , PID SSR Control Weathering Testing Machine



UV Accelerated Weathering Tester_pdf.pdf
