Electronic Carton Compression Tester , Computer Servo Box Compressive Strength Testing Machine

Electronic Carton Compression Tester , Computer Servo Box Compressive Strength Testing Machine
Electronic Carton Compression Tester , Computer Servo Box Compressive Strength Testing Machine
video play

Large Image :  Electronic Carton Compression Tester , Computer Servo Box Compressive Strength Testing Machine

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A505S-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Load Accuracy: ≤0.5% Load Resolution: 1/100,000
Operation Mode: PC Capacity (optional): 1T
Unit (switchable): Kg, Lb, N Test Space (L×W×H): 600×800×800mm
High Light:

packaging testing instruments

,

packaging drop test equipment


Electronic Carton Compression Tester , Computer Servo Box Compressive Strength Testing Machine


Main technical parameters


Model

HD-A501-600

Unit (switchable)

 Kg, Lb, N

Capacity (optional)

1T

Load Resolution

1/100,000

Stroke (exclude the grips)

  400 mm

Load Accuracy

  ≤0.5%

Test Space (L×W×H)

600×800×800mm

Speed of Compression

10 ± 3 mm/min

Operation Mode

PC

Report Items

Serial number, Peak value, Average value, Designated holding pressure value; all memorable

Structure

AC Frequency Conversion Motor ( Taiwan);
Imported screw rod ;4 sensors; LED display

Dimension (L×W×H)

2370×1500×2100mm (can be custom made)

Power

 1ø, 220v/ 50Hz

Weight

 Approx. 850kg

Safety Devices

Overload protection, overvoltage protection & limited position protection device

Standard

TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642


About the machine
Paper Container Carton Compression Testing machine is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or being carried, and it can be used to do the stacking test. The result of the test can be used as the important reference of the height of the pilling up of the finished product or the important basis of the packing design.

Features
Taiwan AC frequency conversion motor drive; Paper Container Carton Compression Testing machines are using common screw to up and down, result is accurate and stationary; using the high precision explosion-proof type LOAD CELL; measure by using the microcomputer controlled instrument; Can print test data; High precision, low prices; High sensitivity, can judge the instantaneous

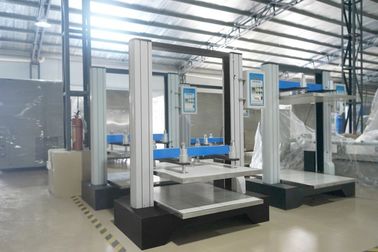

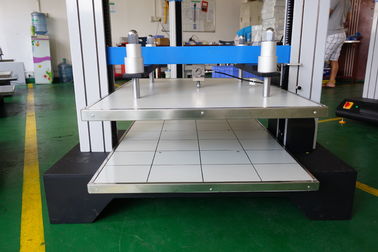

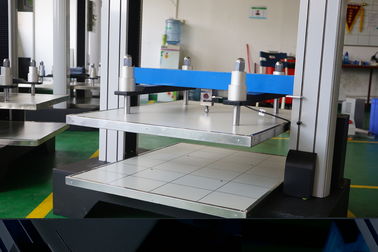

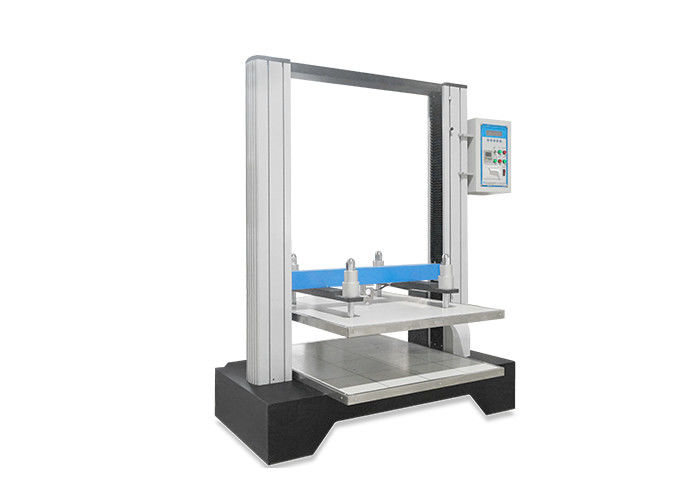

The pictures
Electronic Carton Compression Tester , Computer Servo Box Compressive Strength Testing Machine 0

Electronic Carton Compression Tester , Computer Servo Box Compressive Strength Testing Machine 1
