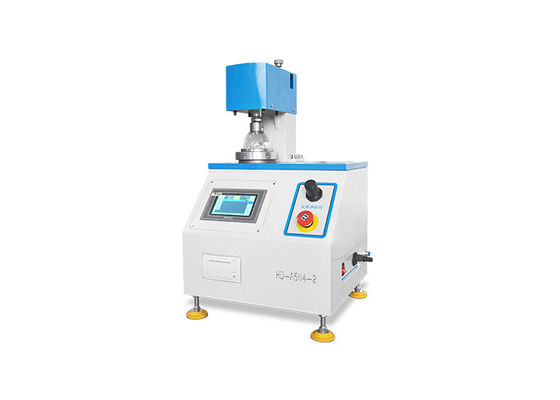

Electric Automatic Paper Bursting Testing Equipments

Electric Automatic Paper Bursting Testing Equipments
Electric Automatic Paper Bursting Testing Equipments Electric Automatic Paper Bursting Testing Equipments

Large Image :  Electric Automatic Paper Bursting Testing Equipments

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A503
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Display: LCD Friction Speed: 85
Port: 85% Glycerin; 15% Distilled Water Indicating Method & Display: LCD
Oil: 85% Glycerin; 15% Distilled Water Sensing Method: Pressure Transmitter
High Light:

paper testing instruments

,

paper testing machine

Electric Automatic Paper Bursting Testing Equipments




Haida Burst Strength Tester.pdf



Specifications:
Electric automatic Film Paper Bursting Testing Machine
1.Anti-vibration Motor 1/8 HP
2.Operation Method:Automatic
3.paper,cardboard testing


Design standard:
JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539

The usage:
Electric automatic Film Paper Bursting Testing Machine fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. The GT-7013-ADP type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Electric automatic Film Paper Bursting Testing Machine‘s Accuracy has promoted 20 times more than the traditional gauge.


Main technical parameters:

Capacity (Optional)

High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)

Unit (switchable)

Kpa, psi, kg/cm^2

Accuracy

 0.5%

Pressure Range

250~5600kpa

Speed of Compression

High Pressure 170 10ml/min

Specimen Clamping Force

>690kpa

Oil

85% Glycerin; 15% Distilled Water

Sensing method

Pressure Transmitter

Indicating Method & Display

LCD

Material of the Ring

Stainless Steel SUS304

Opening in Upper Clamp

31.5  0.05 mm Diameter

Opening in Lower Clamp

31.5  0.05 mm Diameter

Motor

Anti-vibration Motor 1/8 HP

Operation Method

Automatic

Dimension (LWH)

445425525 mm

Weight

Approx. 70 kg

Power

AC220 10%, 50 Hz

Power Capacity

120W

Standard Configuration

Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle

Optional Configuration

Printer, Air Pump


The Character:
Electric automatic Film Paper Bursting Testing Machine is applicable to test bursting strength for paperboard.
Advanced micro computer controller and digital processor ensure result precise.
Printer facility and fully detailed test reports.
Results of the tests are stored for viewing or for printing out as required.
User-friendly menu interface
Power protection ensure automatic record when power cut off.


Uses
Electric automatic Film Paper Bursting Testing Machine is ideal for testing a wide range of materials like paper, paperboards, corrugated board and boxes, leather, filter cloth, rexine, ect, to determine their quality, strength and performance.
