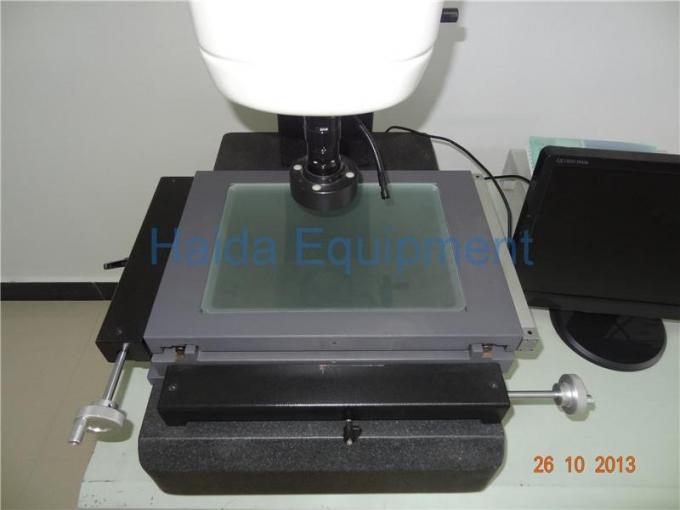

LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine

LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine
LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine

Large Image :  LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine

Product Details:
Place of Origin: China
Brand Name: Haida
Model Number: HD-2010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 4,959
Packaging Details: Strong wooden case package
Delivery Time: 15 days after received deposit
Payment Terms: Full payment before delivery
Supply Ability: 150 set per mouth
Detailed Product Description
Power: Electronic Product Name: Optical Measuring Devices
Glass Table Size: 230 X 130mm Travel: X,Y: 200 X 100mm
Model: TT-2010 LED Auto CAD High Accuracy Optical Measuring Devices Dimension: 600*400*1100
High Light:

optical measuring devices

,

optical measuring equipment

LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine



Specifications

1.Professional manufacturer
2.Magnification:0.7~4.5X
3.MOQ:1 set &Warranty:1year


Product description

LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine designed to measure the two coordinates in all application areas and is widely used in different kinds of precision finishing industries,
such as: machinery, electronics, ironware, instruments, plastics and so on.

The main technical parameter:


Model : TT-2010  LED Auto CAD High Accuracy Optical Measuring Devices
Glass table size  : 230 x 130mm
Travel: X,Y : 200 x 100mm
Net Weight : 150kg
Dimension : 600*400*1100
Travel: Z :

Effective space :245mm
Focusing stroke:180mm
Work distance:95mm

Video system : Camera: Color 1/3``CCD camera
Optical Magnification:0.7~4.5X
Digital magnification:30~230X
Object view-field:7~1.1mm
Contour and surface illumination: Ring LED and brightness can be setup
Power : AC180V/60Hz;220V/50Hz
Software : Quick Measuring 2.0



Features

  1. LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine uses U.S.TEO 1 / 2 color CCD cameras, the cross-line generator is the measuringaiming system.
  2. Digital measurement and data processing system are made up by the two coordinate’s studio, the optical grating and the SDK -3000 data card.
  3. LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine has various functions of data processing, display, input and output, particularly; the work piece straightening function is very useful.
  4. LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping.
  5. The marble base and column, high stability.

Functions:

  1. LED Auto CAD High Accuracy Optical Measuring Devices can measure point,line, circle,arc,oval and rectangular to improve measurement accuracy with multi-point.
  2. LED Auto CAD High Accuracy Optical Measuring Devices has many features such as: the combination of measuremnets,center structure,the intersection of structure,the midpoint of construction,line structure,a round structure and structural point of view.
  3. Coordinate translation and coordinats straighten out is to make measurement more convenient and efficient,at the same time increase measurement efficiency.
  4. Macros can measure the same parts faster and more convenient volumn and improve the measurement efficiency.
  5. Measuring data directly output into Word,Excel,AutoCAD.That is more easy and clesr to analysis the test data.
  6. Record users' program,editing and execute command.

LED Auto CAD High Accuracy Optical Measuring Devices , Optical Measuring Machine 0
