| Power: | Electronic | Product Name: | Environmental Testing Chambers |
|---|---|---|---|
| High Temperature Range: | RT～170 ℃ | Low Temperature Range: | －75℃ ～RT |
| Type: | Impact Testing Machine | Model: | HD-E703-50 |
| High Light: | environmental testing equipment,environmental testing machine |
||

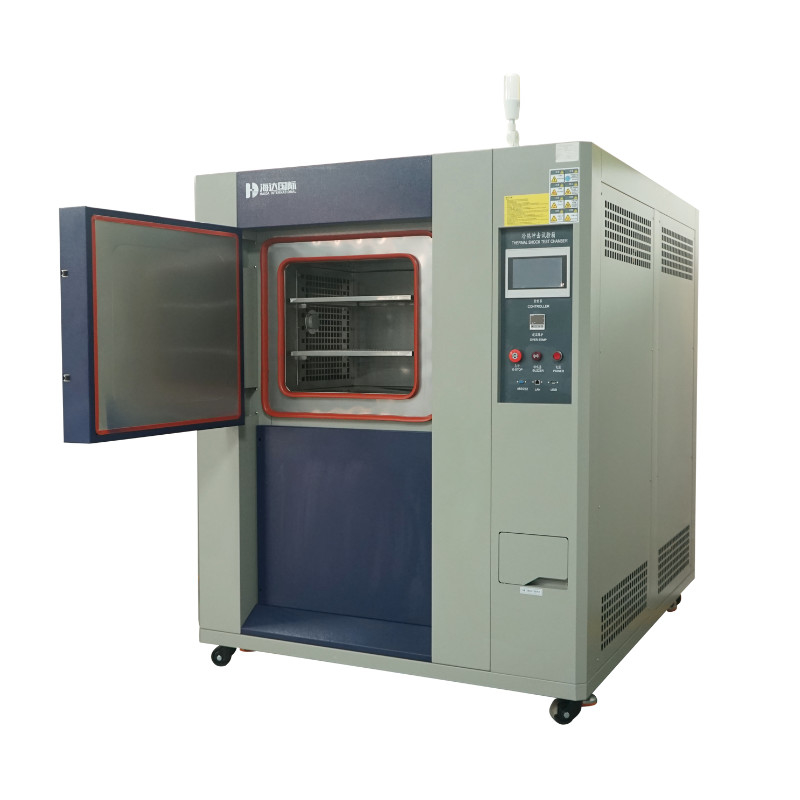

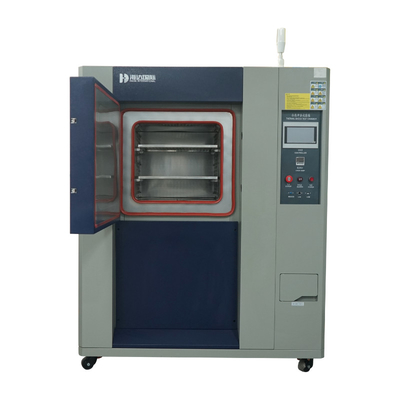

Water Cooling Multi Function Control Environmental Test Chamber
Product Description:
Multi function control hot and cold impact testing machine is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment , that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics ... and other materials can be used as a basis to improve their products or reference.
Specifications:
Thermal Shock Tester
1.High formula memory capacity
2.Color touch panel control system
3.Multiple safety protection device
Parameters:
| Model | HD-E703-50K40 | HD-E703-50K65 | ||
| Nominal content product(L) | 50 | |||

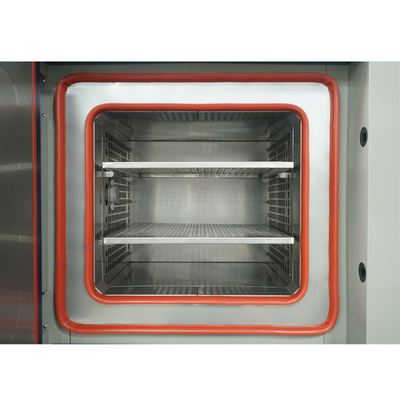

| Interior dimension(mm) | 350×400×350(W×H×D) | |||
| Overall dimension(mm) | 1230×1500×1830(W×H×D) | |||
| Temperature range |
High temperature | RT～170 ℃ | ||
| Low temperature | －75℃ ～RT | |||
| Test area | －40℃ ～150℃ | －65℃ ～150℃ | ||
| Temperature shock range | High temperature | 60℃ ～150℃ | ||
| Low temperature | －10℃ ～－40℃ | －10℃ ～－65℃ | ||
| Normal temperature area | Room temperature | |||
| Temperature and humidity deviation | ±0.3℃,±2%R·H | |||
| Average difference in temperature and humidity | ±2℃,±3%R·H | |||
| Heating rate | 2℃/min | |||
| Cooling rate | 0.5~1.2℃/min | |||
| Storage time | RT→－75℃≤ 65min | |||
| Heat storage time | RT→170℃≤ 35min | |||
| Refrigeration system | Compressor | Import of France taikang/Germany | ||
| Cooling way | Water cooling or air cooling | |||
| Condenser | Stainless steel brazed plate type heat exchanger | |||
| Heater/evaporator | Nickel-chromium electric heater/finned evaporator | |||

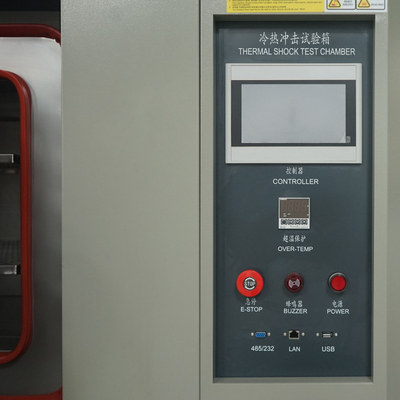

| Microcomputer & display screen | TT-5188T3-7HL Taitong controller | |||
| Circulation fan | Axial flow fan | |||
| Safety measures | No fuse switch, compressor overpressure, overheat, overcurrent protection, fuse, water flow protection, phase sequence protection, oil pressure protection, pressure relief protection, low pressure protection, pressure cylinder protection, temperature limit protection | |||
| Chassis shell Material | High quality cold rolled steel sheet is sprayed with static electricity | |||
| Inner wall of the case Material | SUS304# Stainless steel plate | |||
| Heat preservation material | Polyurethane rigid foam + high density fiberglass cotton | |||
| Standard configuration | Test hole, floodlight, double vacuum bulletproof glass observation window | |||
| Power supply | three-phase,380V,50Hz | |||
