|Power:||Electronic||Product Name:||Environmental Testing Chambers|
|Temperature Uniformity:||PID Control||Temperature Precision:||Temperature: 0.01 ℃, Time 1 Min|
|Interface:||RS-232 RS-232C||Standards:||MTL, IEC, JIS, GJB|

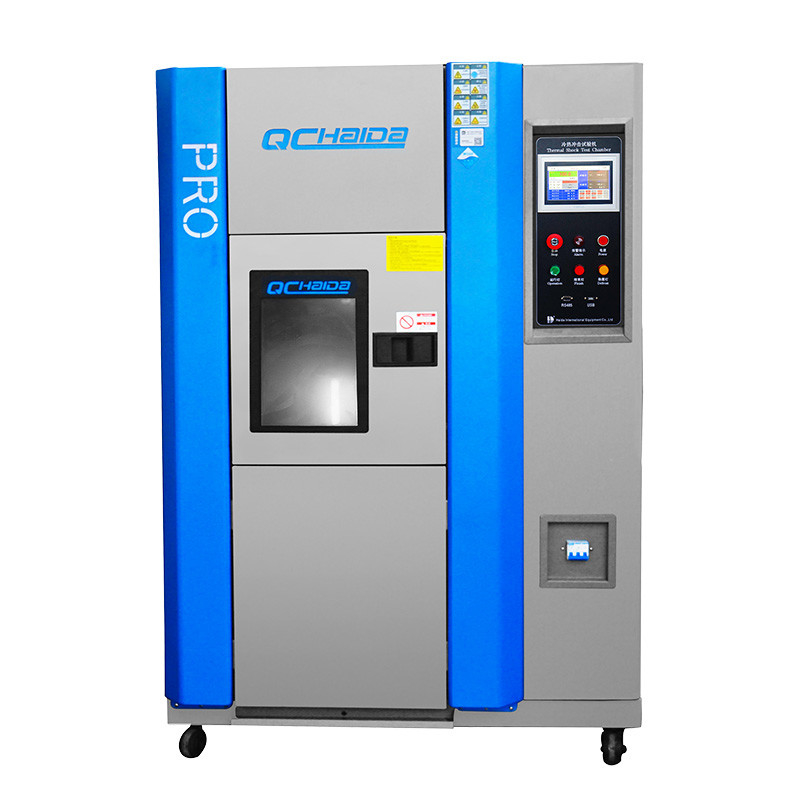

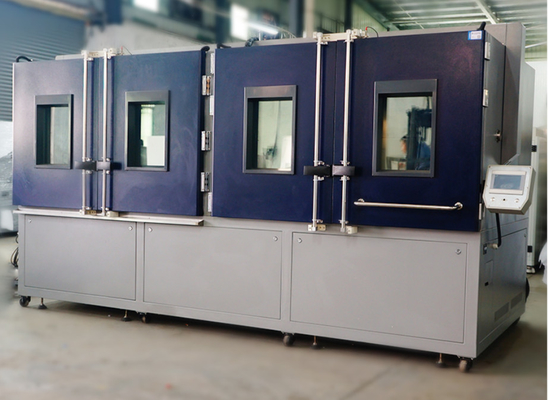

Automatic Control Environmental Test Chambers , Temperature Shock Test Chamber
1, Product features
1) Perfect outlook upgrades, easy operation
2) The color touch microcomputer temperature controller was made in Japan which can display Chinese / English Vertical structure with 3 chambers, high low temperature shock cycling can be automatic control, remain and change time can be adjustable, stainless steel inner material, several record methods, it has various safety precautions and device.
3) Perfect protect alarming function: when it has condition with short circuit, work chamber over-temperature, leakage; compressor with over-pressure, over-load, oil pressure, water-break, the screen will automatic display the fault cause and provide exclusion method, and when the input voltage is unstable, due to it has the stop device that the remove time of high-low temperature shock structure within 10s.
4) The recovery time for this product within 5min and meet MTL, IEC, JIS, GJB etc standard.
2, Product usage:
Automatic Control Environment Temperature Shock Test Chamber have a automatic control system for the hot and cold temperature testing .
Touch screen high low temperature shock test chambers can be used in testing composite material and material structure’s result which under continuous environment with high temperature or low temperature shock in short time; it means this product can test the material’s chemical change or physics change by expansion and contraction within short time. It’s application to metal, plastic, rubber, electronic etc materials and can be used for product improvement’s reference.
3, Option accessories:
Ln2 fast cooling control system
RS-232 RS-232C communication interface device, it can supervisory control and record by LAN with computer together
4, Functional module:
1)Touch screen high low temperature shock test chambers divided into three sections: hot chamber, cold chamber and testing chamber. It’s using unique the heat protection structure, accumulation of hot and cold effect, heat and cold air course to guide into the specimen to make the temperature shock test.
2) The color touch microcomputer temperature controller(320*240dots) was made in Japan
3) High formula memory capacity may be set to 100 groups. The maximum cycle setting is 9999cycles. The maximum setting of each section is 999 Hrs 59 Min.
4) Provide with RS-232C communication interface device, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application. Both 2 zone and 3 zone chambers can be chosen.
5) Touch screen high low temperature shock test chamber is the fully automatic and high precision program, and all process are precisely controlled by P.L.C.’S.
6) For the malfunctions, the machine will automatically shuts down and a warning light switches on. It can be shut down automatically in case of electrical power instabilities
5, The main parameters:

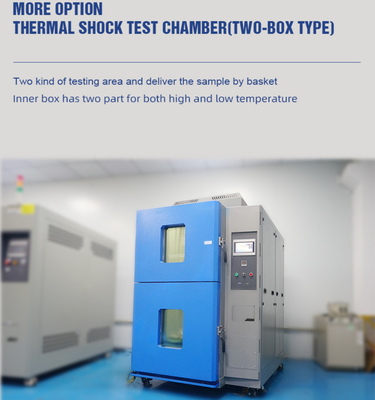

|Test method||Pneumatic operated door switch, two chambers|
|Basket internal dimension||320Wx230Dx250Hmm (20L)|
|External chamber dimension||1050Wx1825Dx1440Hmm|
|High temperature range||Room temperature ～+175℃|
|Low temperature range||Room temperature ～-50℃|
|Testing time||Maximum 1000 cycles, 30 minutes for each one|
|Defrost||Do defrost in every 20 cycles|
|Lifting switch time||≤10 seconds|
|Test hole for cable routing||Diameter 50mm on the left of chamber attach a silicone plug|
|External chamber material||High quality electrolytic steel plate spray with powder, antirust|
|Internal material||SUS#304 stainless steel|
|Thermal insulation material||High quality superfine glass fiber|
|Refrigerant||R404A / R23|
|Cooling method||Water cooling|
|Power supply||Three phase, 380V, 50Hz|
1) The hot chamber
Heater: nicochrome electric heater
Ventilator: centrifugal ventilator when exposed in high temperature or environment temperature, axial flow ventilator for preheating
2) The cold chamber
Heater, cooler; nicochrome electric heater, regenerator
Ventilator: centrifugal ventilator
Pneumatic cylinder: it can be used in each device when exposed for hot temperature, environment temperature, cold temperature
Air compressor: provide the compress air for pneumatic ventilator (option)
4) Refrigerating unit
Cooling method: cascade refrigeration system
Refrigeration compressor: semi-closed piston
Freezing medium: R23/R404 environmental friendly
Condenser: Stainless steel plate-type heat exchanger
Operation interface: 6” Windows-based color touch screen with English version
Program’s memory capacity: 100 group user program (adjustable)
Set index range: Time: 1min~ 99h59min, cycling: 1~999times
resolution ratio: Temperature: 0.01 ℃, time 1 min
Input: T type thermocouple
Controlling method: PID control
other function: timer, over-temperature protection, sensor for choosing up & down wind, power cut protection, alarm record, test curve record, test suspend, display operation time of program
Power supply: AC380±10％V 50±0.5Hz, three-phase, four-wire+ protect earth wire
Power (k.w): 20, 21, 22
Cooling circulating water: Water pressure: 0.2~0.4MPa, water temperature: ≤30℃
Compressed air: 0.5~0.7MPa
5, Standard configuration: Light of chamber’s condition, timer 1pc, fairlead (25x100mm) 1pc, trundle 4pcs, Levelers4pcs
6, Safety device: ground fault circuit interrupters, the chambers temperature is too high, lower protector, air evacuation valve, Sample power control terminals (contact capacity: AC 250V, 6Am), over-temperature protector switch for hot & cold chamber, over-temperature protector switch for hot & cold chamber( inside controller), compressor overpressure, over-heating protector, ventilator relay, temperature switch of electromotor, prevent relay of electromotor, pressure switch for air compressor, fuse, external alarming terminals (contact capacity: AC 250V, 2Am)
