100KN Rubber Tensile Testing Machines High Precise For Peel Strength / Bend Strength

China 100KN Rubber Tensile Testing Machines High Precise For Peel Strength / Bend Strength supplier
100KN Rubber Tensile Testing Machines High Precise For Peel Strength / Bend Strength supplier 100KN Rubber Tensile Testing Machines High Precise For Peel Strength / Bend Strength supplier 100KN Rubber Tensile Testing Machines High Precise For Peel Strength / Bend Strength supplier 100KN Rubber Tensile Testing Machines High Precise For Peel Strength / Bend Strength supplier 100KN Rubber Tensile Testing Machines High Precise For Peel Strength / Bend Strength supplier

Large Image :  100KN Rubber Tensile Testing Machines High Precise For Peel Strength / Bend Strength

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B611S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Accuracy: ±0.5% Capacity: 1000,2000,3000,5000kg,10000kg
Elongation Accuracy: 0.001mm Max. Stroke: 1000mm (including Fixture)
Motor: Panasonic Servo Motor Power: Electric
Sensor: Celtron Load Cell|load Cell Type: Tensile Tester
Port: ShenZhen



      100KN Rubber Tensile Testing Machines High Precise For Peel Strength / Bend Strength

100KN Rubber Tensile Testing Machines High Precise For Peel Strength / Bend Strength



APPLICATIONS

  1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
  2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
  3. Deformation under defined load: Test deformation under defined load of tested sample
  4. Load under defined deformation: Test load under defined deformation of tested sample
  5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Metal

  • ASTM E8, EN 10002-1,ASTM A370: Tensile Test
  • ASTM A370: Bend Test
  • ASTM B-117, ISO 3768: Salt Spray Test
  • ISO 6508: Rockwell Hardness Test
  • ISO 6507: Vickers Hardness Test
  • ISO 6506, ASTM E10-14: Brinell Hardness
  • ASTM E23, ISO 148: Impact Test

Main Technical Parameter

Item Description
Frame capacity 10T
Load cell brand

USA brand transcell load cell for high accuracy

10T (2T, 5T are optional)

Load accuracy 0.5% F.S
Control system PC with windows 7 system
Motor Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Vertical test space 1100mm including fixture
Horizontal test space ≤400mm
Test speed 0.1~300mm/min (adjustable)
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat



Product Description

Panasonic Servo Motor 100KN Rubber Tensile Testing Machine is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

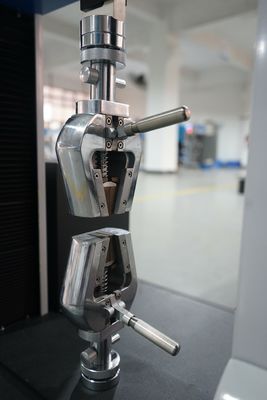

Panasonic Servo Motor 100KN Rubber Tensile Testing Machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.



TM2101

The TM2101 software is designed purposely for computer controlled electronic universal testing machine,  used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this universal test equipment system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.

100KN Rubber Tensile Testing Machines High Precise For Peel Strength / Bend Strength



Tensile Testing Machine Standards Sharing.pdf



100KN Rubber Tensile Testing Machines High Precise For Peel Strength / Bend Strength100KN Rubber Tensile Testing Machines High Precise For Peel Strength / Bend Strength
