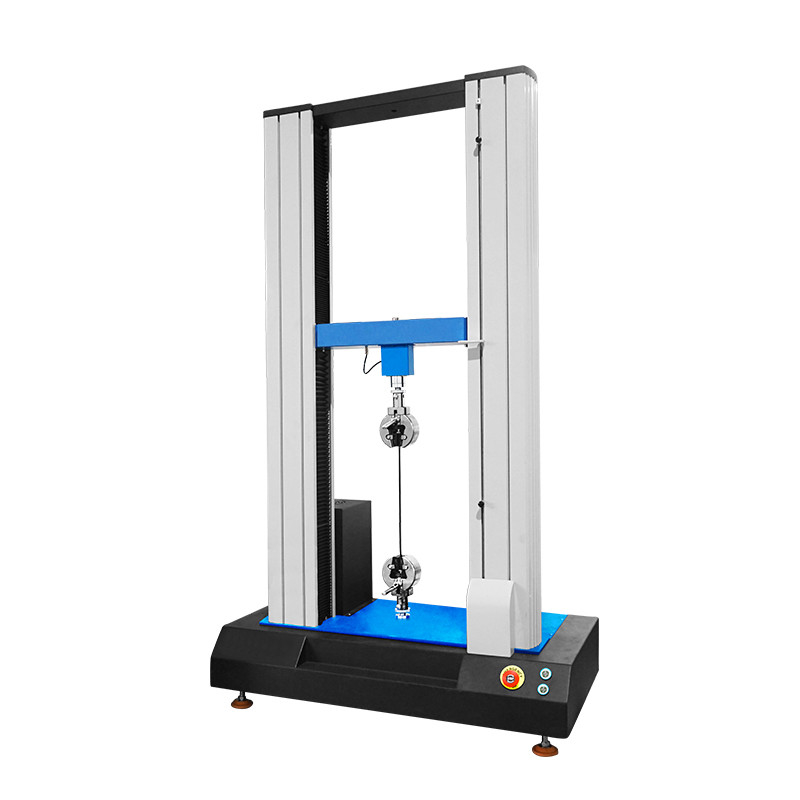

Double Column Mechanical Tensile Testing Machines , AC Motor / 20KN Computer Control

Double Column Mechanical Tensile Testing Machines , AC Motor / 20KN Computer Control
Double Column Mechanical Tensile Testing Machines , AC Motor / 20KN Computer Control
video play

Large Image :  Double Column Mechanical Tensile Testing Machines , AC Motor / 20KN Computer Control

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B604-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Load Precision: ≤0.5% Capacity: 500, 1000, 2000KG
Elongation Accuracy: 0.001mm Motor: AC Motor
Max. Stroke: 1200mm (excluding Fixture) Resolution: 1/100,000
Sensor: Load Cell | Normal Load Cell Type: Tensile Tester
Test Speed: 0.1-500mm/min (adjustable )
High Light:

electronic universal testing machine

,

compressive strength testing machine

 Double Column Mechanical Tensile Testing Machines , AC Motor / 20KN Computer Control



Product Description

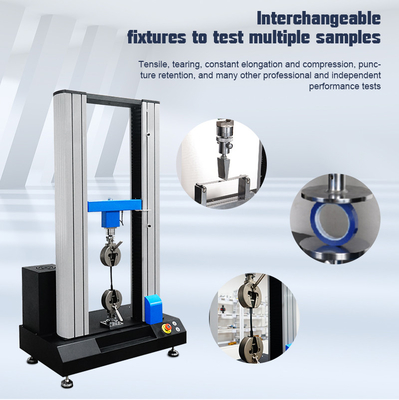

20KN Computer Control Double Column Mechanical Tensile Testing Machine is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

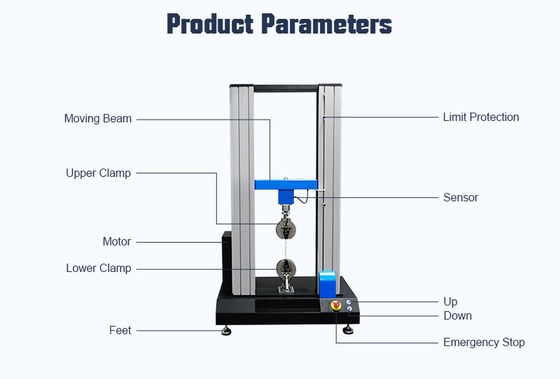

20KN Computer Control Double Column Mechanical Tensile Testing Machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.



Main Technical Parameter

Items

Specification

Sensor

Normal Load cell

Capacity

500, 1000, 2000KG

Unit Switchover

G, KG, N, LB

Display Device

PC

Resolution

1/100,000

Load precision

≤0.5%

Max. Stroke

1200mm (excluding fixture)

Test Speed

0.1-500mm/min (adjustable )

Motor

AC Motor

Screw

High Precise Ball Screw

Elongation Accuracy

0.001mm

Power

1∮, AC220V, 50HZ

Weight

Approx.150kg

Accessories

One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual



Product Features

1. Motor system: AC Motor +Driver +High precise ball screw (Taiwan)

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation

3. Data transmission: RS232

4. Displacement resolution: 0.001mm

5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.

6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.

7. User can set parameters of product material such as length, width, thickness, radius, area and so on.

8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.



TM2101

The TM2101 software is designed purposely for computer controlled electronic universal testing machine,  used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this universal test equipment system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
