Microcomputer 500N Leather Tensile Testing Machines With High Precise Ball Screw

China Microcomputer 500N Leather Tensile Testing Machines With High Precise Ball Screw supplier
Microcomputer 500N Leather Tensile Testing Machines With High Precise Ball Screw supplier Microcomputer 500N Leather Tensile Testing Machines With High Precise Ball Screw supplier Microcomputer 500N Leather Tensile Testing Machines With High Precise Ball Screw supplier Microcomputer 500N Leather Tensile Testing Machines With High Precise Ball Screw supplier

Large Image :  Microcomputer 500N Leather Tensile Testing Machines With High Precise Ball Screw

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B602

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Accuracy: ±0.5% Capacity: 5, 10, 20, 25, 50, 100, 200kg
Elongation Accuracy: 0.001mm Max. Stroke: 1000mm (including Fixture)
Motor: AC Motor Power: Approx.45kg
Resolution: 1/100,000 Sensor: Load Cell
Type: Tensile Tester Port: High Precise Ball Screw

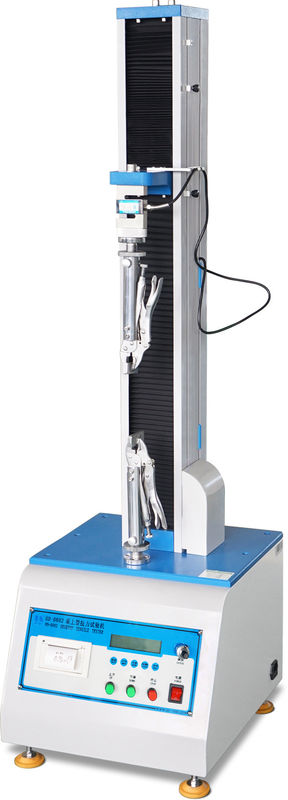

Microcomputer 500N Leather Tensile Testing Machines With High Precise Ball Screw



Product Description

Microcomputer Display 2KN Leather Tensile Testing Machine is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.



Generl Specifications:

Packaging Dimensions: (W*D*H) 500*450*1150mm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 55kg



Microcomputer Features

1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)

2. Control system: Microcomputer

3. Displacement resolution: 0.001mm

4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.



Main Technical Parameter

Item Description
Max. Force 50 kg (500N)
Load cell China brand load cell
Control system Controller with LED
Motor AC Motor, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Stoke 700mm including fixture
Load cell Resolution 1/100,000
Load Precision within ±0.5%
Test speed 20~300mm/min (adjustable)
Data display Max. break force
Safety features

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat



Customer feedback:

Microcomputer 500N Leather Tensile Testing Machines With High Precise Ball Screw



FAQ:



Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.



Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.



Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.



Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.



Microcomputer 500N Leather Tensile Testing Machines With High Precise Ball Screw
